YORKVILLE YBA200 Parts List

1
3
4
8
11
*NOTE: Replacement grills are 'Special-Order' and are only available while the model is in production.
‡ Grilles & Support replacements are for CURRENT models only.
Parts-Serv-yba200-1v0.xls
2
5
6
17
7
18
9
10
13
12
ftp.yorkville.com
# Part# Description
Labeled Components

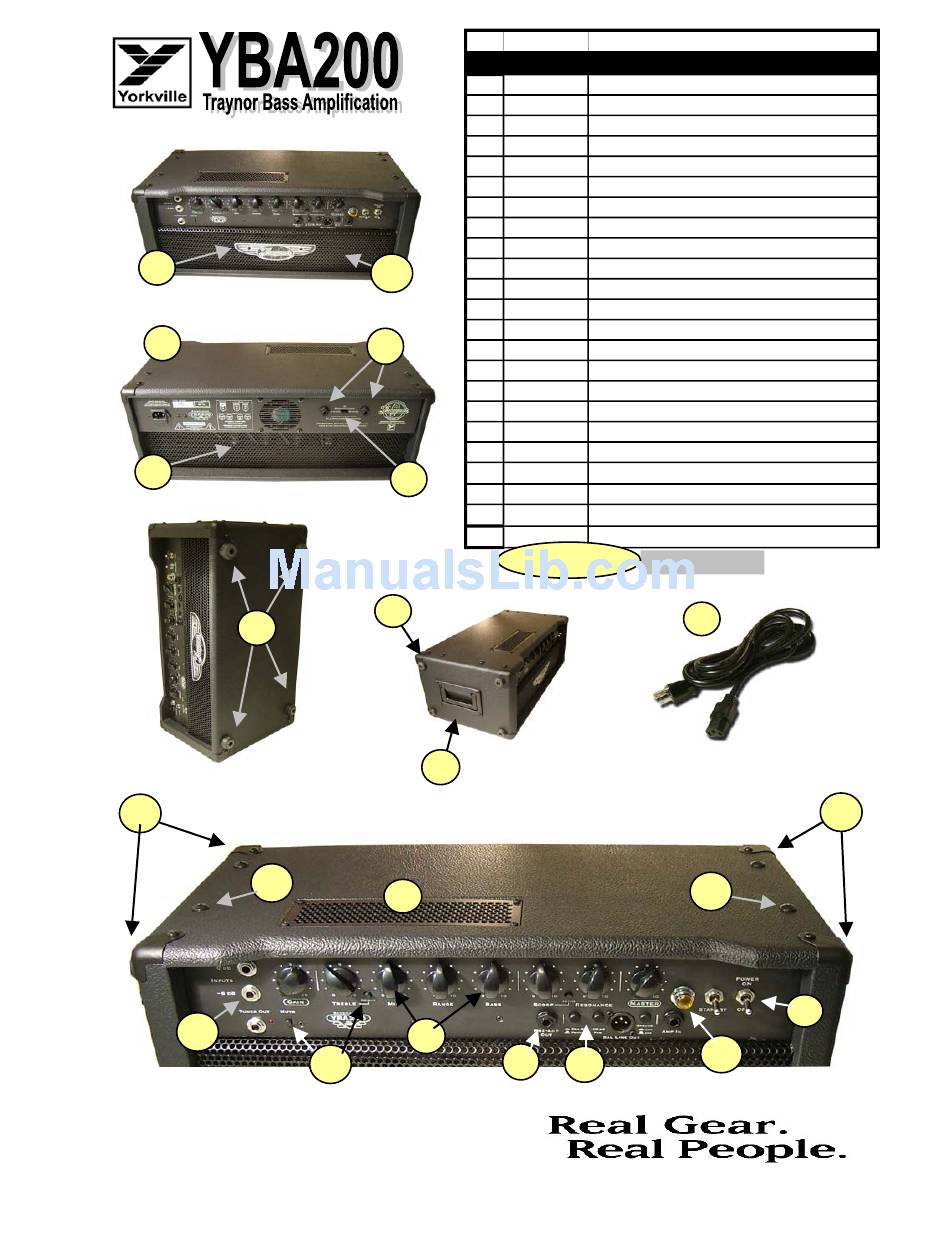

1 8264 YBA200/YCV LOGO EMBOSSED ALUMINUM
2 Z536 YBA200 FRONT GRILL*‡
3 3438 IEC PWR SOC W/.250TAB &FUSE 10A
4 YBA200 BACK GRILL*‡
Z540
5 3450 1/4" JCK PCB MT HORZ GOLD
6
3424 DPDT SLID SW PCMT H GOLD CONTACTS
7 8522 RUBBER BUMPER WITH WASHER -SMALL
8 8570 CORNER, 2 LEGS NOTCHED LIP BLACK
9
8770 1/4-20X1 5/16 TRUSS PH MS JS5
10 Z537 YBA200 CABINET VENT PLATE
11
3498 1/4" JCK PCB MT HORZ
12
8633 ROUND PUSH BUTTON 1/4" BLACK
13
8430 YCV40 CHICKEN BEAK KNOB
14
8649 BUTTON KNOB FLAT BLACK
6397 JEWELED PILOT LAMP AMBER REG
15
16 3554 DPDT TOGGLE SW QUICK .250"
8521 RUBBER BUMPER WITH WASHER -VERYSMALL
17
8452 HANDLE, RESESSED, PULL, BLACK PLASTIC
18
19 3428 8' 3/18 SJT AC LINE CORD REMOVABLE
12AX7 12AX7 DUAL TRIODE PREAMP TUBE
20
21 12AU7 12AU7 DUAL TRIODE PREAMP TUBE
22 6550 6550 TETRODE OUTPUT POWER TUBE
23 4021 SPRING RETAINER FOR 6550
20/21/22
5
14
not shown
19
9
16
15
8
