Traynor AM150T - MANUAL SERVICE Service Manual page 4

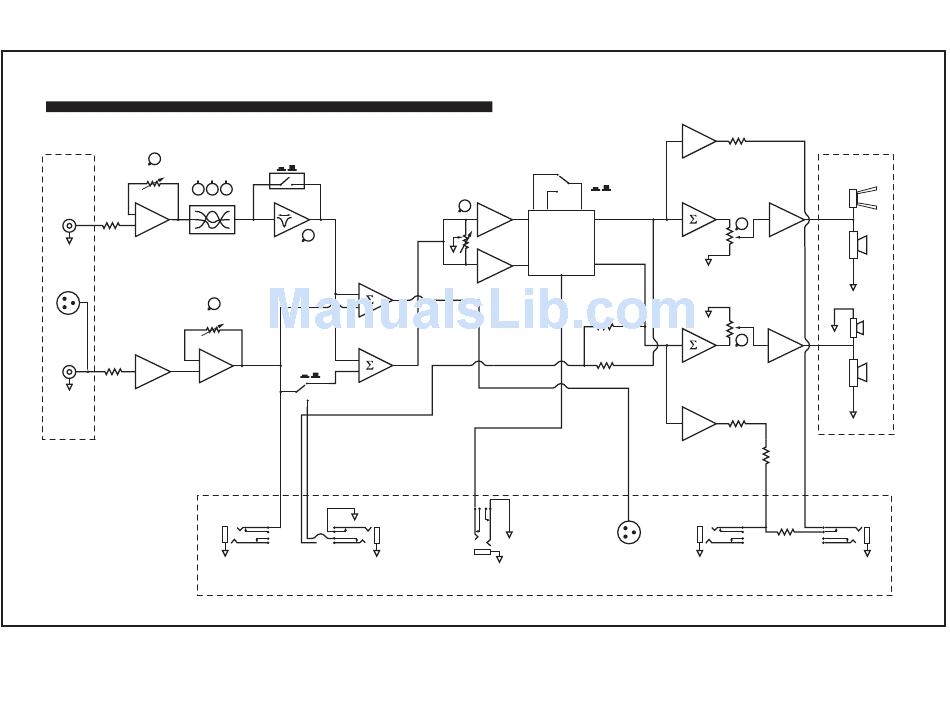

B l o c k D i a g r a m f o r A M 1 5 0
D E S I G N E D A N D M A N U FAC T U R E D B Y Y O R K V I L L E S O U N D
Channel Inputs
Input 1 Gain Pot
EQ
Low / Mid / High
Mono 1/4"
High Z
In 1
Gain 1
XLR
Input 2 Gain Pot
Balanced
Mono 1/4"
Low Z
In 2
Gain 2
Notch Switch
On / Off
Ch 2 EFX
On / Off
EFX Send EFX Return
(ch 2) (ch 2)
Amber LED ON for Bank A
Bank A
On / Off
Bank B
Wet / Dry
Right Bus
DIGITAL
EFFECTS
Bank A
or
Bank B
Left Bus
Balanced Line Out - Dry
Foot EFX Switch
(In / Out)
Effects Loop and Line Out
Master R
AMP R
AMP L
Master L
(ch 1 & ch 2)
Balanced LEFT / MONO
(ch 1 & ch 2)
Speaker Outputs
Horn
8 ohms
8 inch
8 ohms
Tweeter
8 ohms
8 inch
8 ohms
Balanced RIGHT
(ch 1 & ch 2)
BLOCK-DIAG-am150t-1v1.ai
