- Page 1 OWNER’S MANUAL AMH-440BT AMH-450BT USB RECEIVER WARNING! PLEASE READ CAREFULLY BEFORE USING...
- Page 2 Copyright is a registered trademark. All rights reserved. This document in whole or in part may not be reproduced or copied without the prior written permission of the manufacturer. All brand and product names used in this document are trademarks or registered trademarks of their respective companies.
-
Page 3: Table Of Contents
Content Precautions................... Package bundle and installation............Connection.................... Appearance, control elements.............. Overall size.................... Remote control..................Main functions..................Radio..................... USB....................... Bluetooth....................Phone app..................... Technical features.................. -
Page 4: Precautions
Precautions This user manual contains important safety advice and information on the correct use of the device. Please follow all instructions in this manual carefully. 1. While installing the device, avoid places with high temperature, humidity, or dusty places. 2. Make sure that the device and especially its installation accessories are out of the reach of children. -
Page 5: Package Bundle And Installation
Package bindle and installation Open the package and make sure that inside include: 1. USB-receiver - 1piece 2. Remote control - 1 piece 3. Keys for receiver remove - 2 pieces 4. ISO - jack- 1 piece 5. Instruction 6. Guarantee If the car has a standard 1DIN hole for installing the head unit, use it as described below. -
Page 6: Connection
Connection 1. Make sure that the on-board voltage of your vehicle is +12 volts 2. Remove the fuse from the device before connecting the wires. 3. Connect the yellow (A4) wire to the +12 Volt DC power circuit. 4. Connect the red wire (A7) to the ACC terminal of the ignition switch. 5. -
Page 7: Appearance, Control Elements

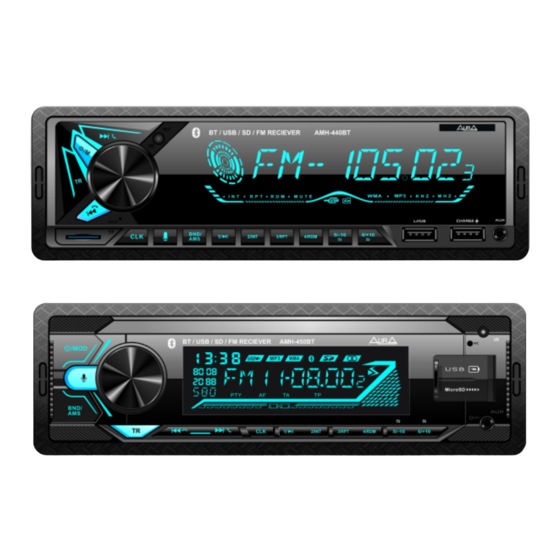

Control elements AMH-440BT AMH-440BT BT / USB / SD / FM RECIEVER AMH-450BT AMH-450BT 1. Button on. / off. power. Source selection. 2. Fast forward / select next song / pick up the handset. 3. Volume control / select button (SEL). -
Page 8: Overall Size
Overall size Remote control Removing the battery protection (CR-2025). Remote control supplied with battery protection. The remote control will not work until the protection is removed. Battery replacement: 1. When the lithium battery has lost its capacity, replace it as shown in the illustration. 2. - Page 9 Remote control Turn on / off the device 2. Source selection 3. Muting the sound (Mute) 4. Radio preset buttons 5. Track scan mode (INT) 6. Repeat Mode (RPT) 7. Random Play Mode (RDM) 8. Go to the previous folder (DIR-) 9.
-
Page 10: Main Functions
Main functions ONN / OFF Power Press any button to turn on the device. Press and hold the button (1) /SRC, to turn on the device. Volume control Rotate the volume knob (3) to set the desired level. Source selection Press the button (1) / SRC, to switch between playback sources: Radio -->... -
Page 11: Usb
Radio Storing and recalling radio stations Press and hold one of the number buttons (1-6) to store the current radio station. Press one of the number buttons (1-6) to recall the current radio station. It is possible to store 6 radio stations in each broadcasting range. Automatic station search Press the button (9) or (2) -
Page 12: Bluetooth
BLUETOOTH Pairing with your phone Pair your phone with the AurA receiver: 1. Turn on Bluetooth on your mobile device. 2. Find the receiver in the list of available BT devices and connect to him. -
Page 13: Phone App
Reset settings (reset) Press the button (20) reset to reset the device to factory settings. Phone app Most of the device settings are available in the AurA mobile application for Android or IOS. Вы можете управлять ресивером со своего смартфона: 1. -
Page 14: Technical Features
Technical features Main Working supply voltage: 12 V (limits 9,6 – 15 V) Fuse: 10 А Maximum output power: 4 х 51 W (4 Ω) Rated output power (with THD less than 1%): 4 х 16 W (4 Ω) Speaker Impedance: 4 - 8 Ω... - Page 15 WARRANTY CARD Model name Serial No. Buyer name Buyer address Phone No. Sales date Signature Seller name/stamp...
- Page 16 TERMS OF WARRANTY SERVICE The manufacturer guarantees high quality and reliability of the products, subject to the technical requirements described in the instructions for use. This warranty is valid for a period of one year from the date of purchase and is carried out in the event that the product is found to be defective due to inadequate material or workmanship from the manufacturer.
- Page 18 Note: Technical data is subject to change without prior notify ©2021 AURA Electronics Inc. All rights reserved...
