Russound HTP-1 Instruction Sheet

Home theater plate double gang multi-connection plate

DESCRIPTION

The Home Theater Plate (HTP-1) is a double-gang in-wall connection plate designed to allow easy

hookup of all the speakers in a 5.1- or 6.1-channel surround sound system. It includes terminals

for five pair of satellite speakers, two powered/active (low level) subwoofers and one rear surround

speaker. The heavy-duty molded plate supports the weight of high-quality wires, and each con-

nection is clearly labeled. The 7/16" gold-plated binding post hex nuts make for easy and secure

connections, and the captured posts won't turn while they are being tightened. The 5-way binding

posts have gold plating to resist corrosion and can accept the following: bare or tinned wire up to

12 gauge in thickness, pins, spade lugs, and single or double banana plugs. The powered subwoofer

connections use RCA-F connectors. Be sure to use only those connectors that are approved for

audio or low voltage use in your area.

Dimensions:

4.8W x 4.8H x 1.1D inches (12.2 x 12.2 x 2.8 cm)

Weight:

8.5 oz. (241 g)

Connectors:

(12) 5-way binding posts, 7/16" hex head

(2) RCA-F connectors

Plate:

Double gang standard (U.S. style)

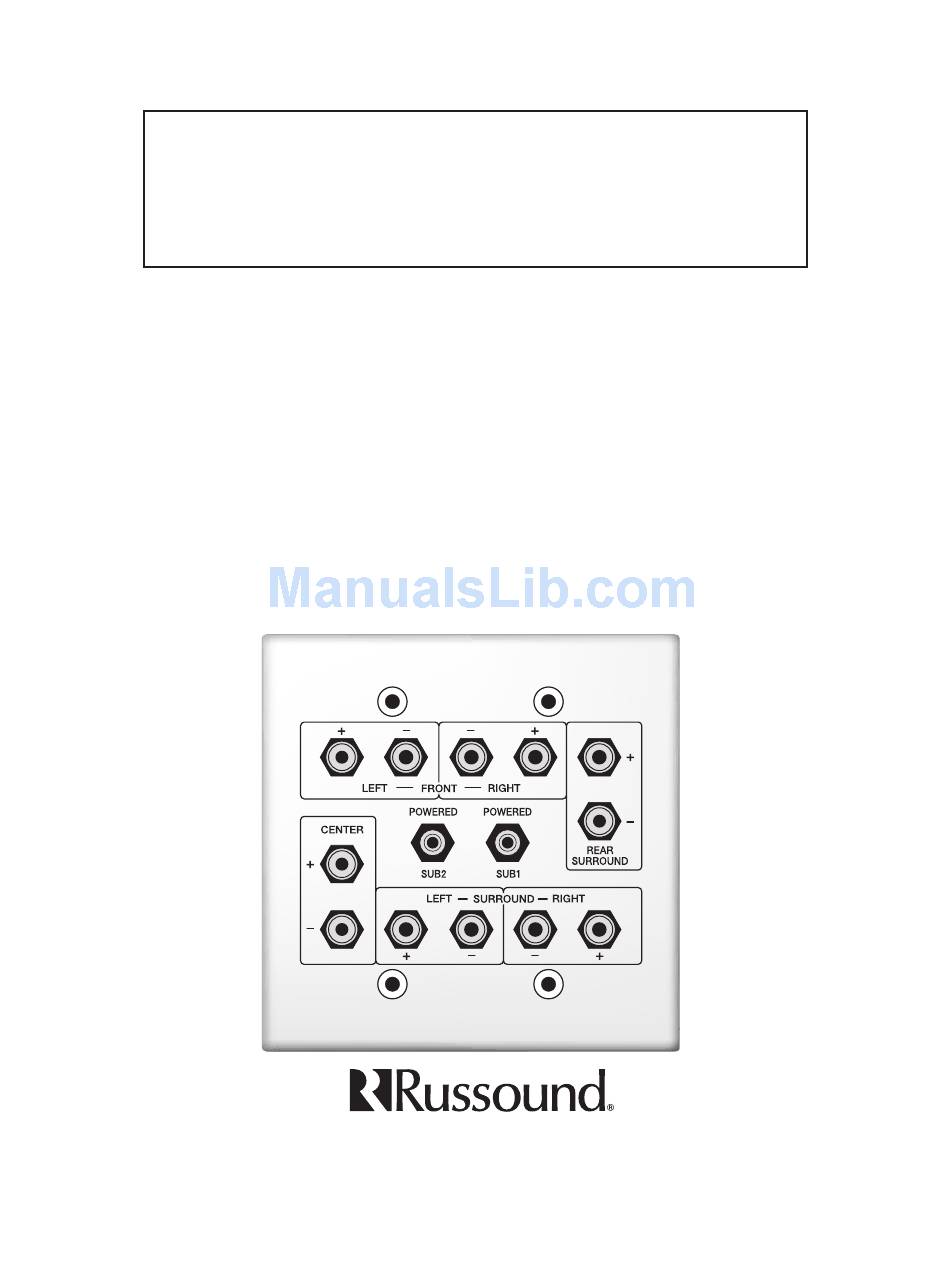

Model HTP-1

HOME THEATER PLATE

Double Gang Multi-Connection Plate

Instruction Sheet

5 Forbes Rd. Newmarket, NH 03857, USA

Tel 603.659.5170 • Fax 603.659.5388

e-mail: tech@russound.com

Table of Contents

Do you have a question about the HTP-1 and is the answer not in the manual?

Page 1 Instruction Sheet DESCRIPTION The Home Theater Plate (HTP-1) is a double-gang in-wall connection plate designed to allow easy hookup of all the speakers in a 5.1- or 6.1-channel surround sound system. It includes terminals for five pair of satellite speakers, two powered/active (low level) subwoofers and one rear surround speaker.
Page 2 In these cases, the repair will be made at the owner’s expense. To return for repairs, the unit must be shipped to Russound at the owner’s expense, along with a note explaining the nature of the service required. Be sure to pack in a corrugated container with at least 3 inches of resilient material to protect the unit from damage in transit.
