PLEASE RETAIN

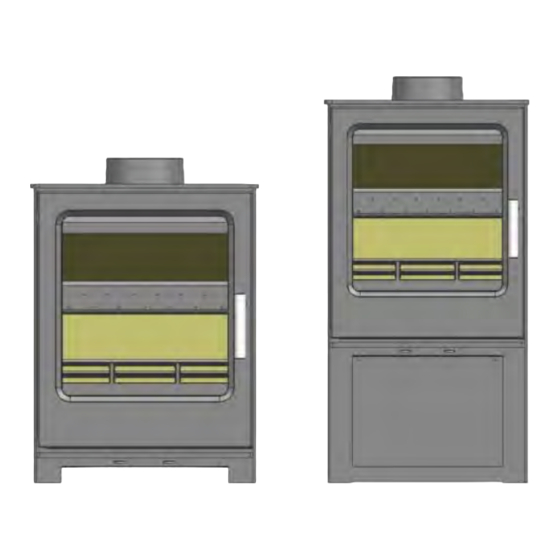

BILBERRY ECO STOVES
BARROW
NORE
SUIR
This appliance is hot while in operation and retains its heat for a long period of time after use.
Children, aged or infirm persons should be supervised at all times and should not be allowed
to touch the hot working surfaces while in use or until the appliance has thoroughly cooled.
When using the stove in situations where children, aged and/or infirm persons are
present a fireguard must be used to prevent accidental contact with the stove. The fireguard
should be manufactured in accordance with BS 8423:2002.
Installation & Operating Instructions
Advertisement
Table of Contents
Related Manuals for Bilberry Stoves BARROW
Summary of Contents for Bilberry Stoves BARROW
- Page 1 PLEASE RETAIN BILBERRY ECO STOVES BARROW NORE SUIR This appliance is hot while in operation and retains its heat for a long period of time after use. Children, aged or infirm persons should be supervised at all times and should not be allowed to touch the hot working surfaces while in use or until the appliance has thoroughly cooled.
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE NO. Warranty Policy ..............3 Installation Checklist . -
Page 3: Warranty Policy
WARRANTY POLICY Your Bilberry Stove carries a guarantee against manufacturing defects for a period of one year from date of purchase. This guarantee shall not apply to any part that has been altered in any way, or which in our judgement has been subjected to misuse, neglect, accident, abuse and wear & tear. Variations in colour and texture are a natural characteristic of these products. -
Page 4: Installation Checklist
INSTALLATION CHECK LIST Tick Flue System 1. Minimum Flue Height of 4.6 metres. 2. Appliance should be connected to a minimum of 1.8 metres (6 feet) of 150mm (6”) flue pipe with a horizontal run not exceeding 150mm (6”). 3. Appliance should be connected to a chimney of less than 200mm (8”) in diameter (otherwise the chimney must be lined with a 150mm (6”) flue liner). -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS NOTE: Please note that it is a legal requirement We recommend that two people perform the instal- under England & Wales Building Regulations that lation procedure. the installation of the stove is either carried out under Local Authority Building Control approval or Installing The Stove is installed by a Competent Person registered with a Government approved Competent Persons... -
Page 6: Technical Data
Product Fiche as required by regulation (EU) 2015/ 1186 Energy Heat Heat Nominal Efficiency Energy Output to Output to Preferred Heat Class Efficiency index Model Room Water Fuel Output. Efficiency. 109.63 Bilberry Eco Nore Wood 82.5 109.63 Bilberry Eco Barrow Wood 82.5 105.13 Bilberry Eco Suir Wood 79.4... -
Page 7: Stove Dimensions
STOVE DIMENSIONS Bilberry Eco Nore Bilberry Eco Barrow Bilberry Eco Suir Note: Dimensions stated are in millimetres unless otherwise stated and may be subject to a slight +/- variation. -
Page 8: Clearance To Combustibles
150mm. It is best to Sides Model Rear Front Top/ Mantle connect to a chimney of the same size, as con- Bilberry Eco Nore 1500 nection to a larger size may result in a somewhat Bilberry Eco Barrow 1500 less draught. Bilberry Eco Suir... -
Page 9: Flues
FLUES Fig.4 Flues should be vertical wherever possible and where a bend is necessary, it should not make an angle of more than 45 with the vertical. Horizontal flue runs should be avoided except in the case of a back outlet from the appliance, when the length of the horizontal section should not exceed 150mm. -
Page 10: Connecting To A Steel Chimney
CAUTION Fig 5 The chimney should be swept at least twice by a competent and approved person. All chimney joints should be inspected during cleaning. FRESH AIR SUPPLY A solid fuel appliance requires a continuous supply of air to support combustion. If another air using appli- ance such as extractor hood or clothes dryer is installed in the same or an adjacent room, the venti- lation supply will need to be increased to ensure... -
Page 11: Especially Airtight Properties
WARNING NOTE:- Especially Airtight Properties:- If the stove is being fitted in a property where the Properly installed, operated and maintained this design air permeability is less than 5m / (h.m ) (nor- stove will not emit fumes into the dwelling. mally newer properties built from 2006), then a per- Occasional fumes from de ashing and re fuelling manent ventilation must be fitted to provide 550mm... -
Page 12: Top Baffle Removal
WARNING Lighting: ENSURE TOP BAFFLE IS CORRECTLY IN * Slide both air controls to open. PLACE BEFORE LIGHTING THE STOVE. * Lay firelighters or rolled up newspapers on the grate with a reasonable quantity, if necessary, of The top baffle rests on the baffle tap as down in Fig dry kindling, place 2 or 3 small logs on top. -
Page 13: Air Regulation
AIR REGULATION AIR CONTROLS Fuel Ignition Controlled Burn Primary Secondary Primary Secondary Mineral smokeless fuel Fully Open Fully Open 0-80% Open Fully Closed (Maxibrite) Wood Fully Open Fully Open 0-10% Open 0-80% Open RE-FUELLING ON TO A LOW FIREBED If there is insufficient burning material in the firebed to light a new fuel charge, excessive smoke can occur. -
Page 14: Disposal Of Ashes
DISPOSAL OF ASHES MAINTENANCE It is essential to keep the grate free from a heavy Cleaning The Glass: build up of ashes. This product is equipped with a This product is equipped with an air wash for the grate riddling tool which is used to shake ashes off glass. -
Page 15: Exploded Views
NORE EXPLODED VIEW Part no. Item Code Description Handle UBE01010 Handle stop BBE01034 Door UBE01013 Hinge JBE01035 Glass seal rope TBE01036 Glass JBE01037 Door seal rope HBE01038 Side vermiculite board HBE01039 rear vermiculite board FBE01040 Rear air box HBE01041 Baffle B... - Page 16 BARROW EXPLODED VIEW Part no. Item Code Description Handle UBE01010 Handle stop BBE01034 Door UBE01013 Hinge JBE01035 Glass seal rope TBE01036 Glass JBE01037 Door seal rope HBE01038 Side vermiculite board HBE01039 rear vermiculite board FBE01040 Rear air box HBE01041 Baffle B FBE01042 Baffle A FBE01043...
- Page 17 SUIR EXPLODED VIEW Part no. Item Code Description Handle UBE01010 Handle stop BBE01012 Door UBE01013 Hinge JBE01014 Glass seal rope TBE01015 Glass JBE01016 Door seal rope HBE01017 side vermiculite board HBE01018 rear vermiculite board FBE01019 Rear air box HBE01020 Baffle B FBE01021 Baffle A BBE01023...
-
Page 18: Troubleshooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE ACTION Unseasoned wood, too damp or Use recommended fuel only. Fire difficult to start - poor quality. Logs too big To light fire use small, very dry twigs. To maintain fire use split logs. Air Starvation Open air controls to allow ade- Fire Goes Out quate air. - Page 22 Waterford Stanley Ltd., Unit 401-403, Waterford Industrial Estate, Cork Rd, Waterford, Ireland. Made In China NH 290419...
