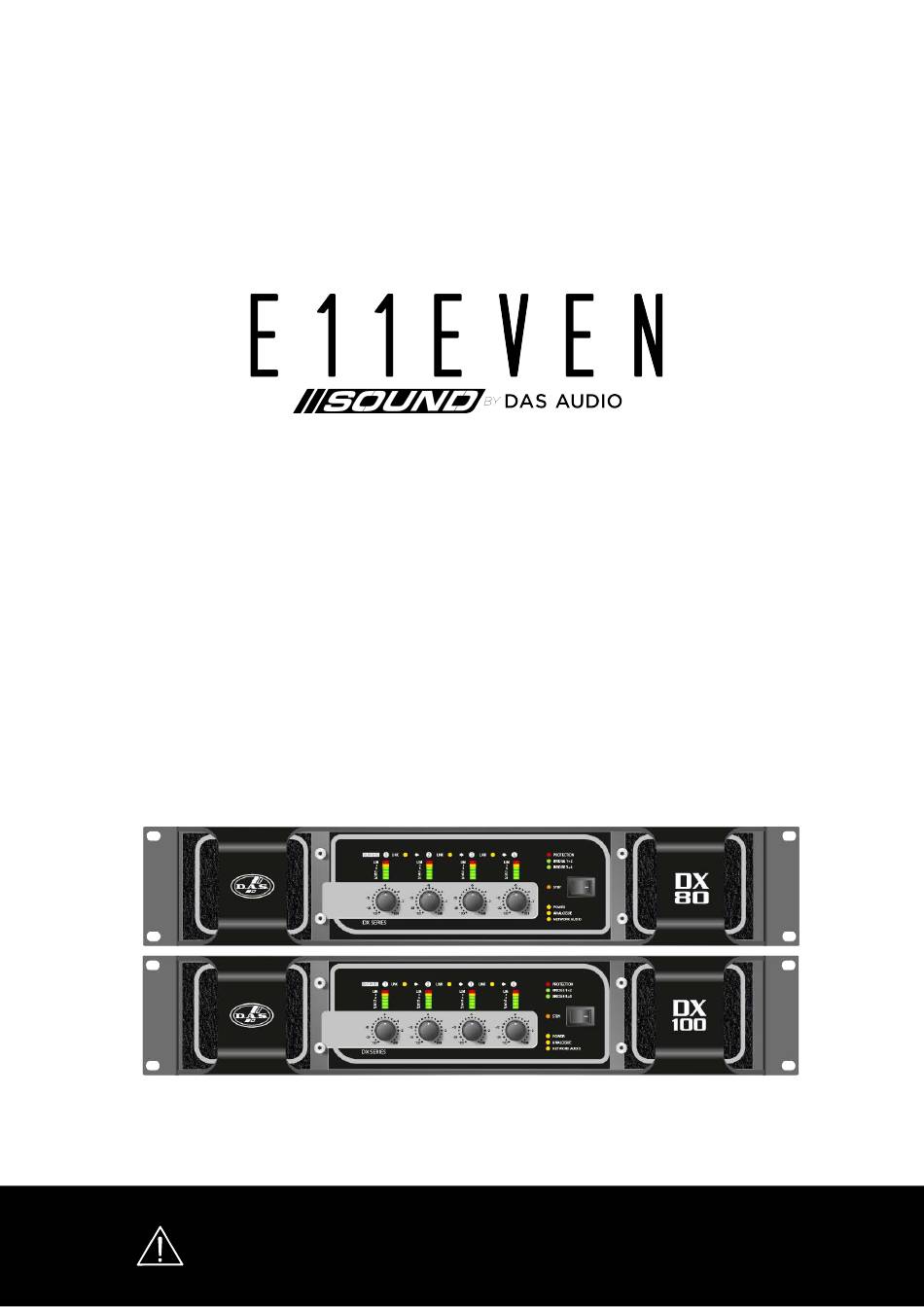

- Page 1 User's Manual DX series - Amplifiers Deliver the Nightclub Sound Experience we all Deserve www.11sound.com Before operating the device, please read the “Safety precautions” section of this manual.
- Page 2 CONTENTS SAFETY PRECAUTIONS DECLARATION OF CONFORMITY WARRANTY INTRODUCTION UNIT OVERVIEW E11EVEN-NET CONTROL SOFTWARE 9 - 18 PRESET RECALL CREATING A NEW PRESET DEVICE PARAMETERS ROUTING INPUT EQ / OUTPUT EQ DYNAMIC EQ (DEQ) GRAPHIC EQ (GEQ) SAVING THE FILE AND GOING ONLINE 22 - 23 LIMITERS COMPRESSORS...
-
Page 3: Table Of Contents
CONTENTS SAFETY PRECAUTIONS DECLARATION OF CONFORMITY WARRANTY INTRODUCTION INSTALLATION: ELECTRICAL CONSIDERATIONS INSTALLATION: MECHANICAL CONSIDERATIONS RF EMISSIONS DYNAMIC AMPLIFIER PERFORMANCE MEASUREMENTS INITIAL SET-UP AND SWITCHING ON FRONT PANEL REAR PANEL MAINTENANCE LINE INPUTS AND OUTPUTS SPEAKER OUTPUTS BRIDGED (MONO) OPERATION SPECIFICATIONS E11EVEN SOUND \ DX \ User’s Manual... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Terminals marked with the lightning symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. Use only high quality cables with plugs pre-installed. All other installation or modification should be performed only by qualified personnel. This symbol, wherever it appears, alerts you to the presence of un-insulated dangerous voltage inside the enclosure - voltage that may be sufficient to constitute a risk of shock. -
Page 5: Declaration Of Conformity
DECLARATION OF CONFORMITY DAS Audio Group, S.L. C/ Islas Baleares, 24 - 46988 - Pol. Fuente del Jarro - Valencia. España (Spain) as E11EVEN Sound System´s supplier: Declares that: The following products: DX-80 & DX100 Are manufactured in accordance with EMC Directive 2014/30/EU, in compliance with the following... -
Page 6: Warranty
WARRANTY All our products are warrantied against any manufacturing defect for a period of 36 months from date of purchase. The warranty excludes damage from incorrect use of the product. All warranty repairs must be exclusively undertaken by the factory or any of its authorised service centers. To claim a warranty repair, do not open or intend to repair the product. -
Page 7: Introduction
Please spend a little time reading through this manual, so that you obtain the best possible performance from the unit and become familiar with its operating requirements. All DAS Audio Group products are carefully designed and engineered for cutting-edge performance and world-class reliability. If you would like further information about this or any other DAS Audio product, please contact us. -
Page 8: Installation: Mechanical Considerations
WHERE A FIXED MAINS LEAD IS FITTED, THE WIRING COLOURS ARE: 230V AREAS: 120V AREAS: GREEN GREEN AND YELLOW EARTH = NEUTRAL = BLUE WHITE LIVE = BROWN BLACK TO PREVENT THE LIKELIHOOD OF SHOCK OR FIRE HAZARD, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE. -
Page 9: Rf Emissions
RF EMISSIONS The high frequency resonant converters in the DX series amplifiers have been designed to have very low radio frequency (RF) emissions; however even these low level emissions can cause interference with other equipment. In order for this to be minimised, the amplifier should be mounted in a metal rack enclosure, which should have a separate (technical) Earth. -
Page 10: Front Panel

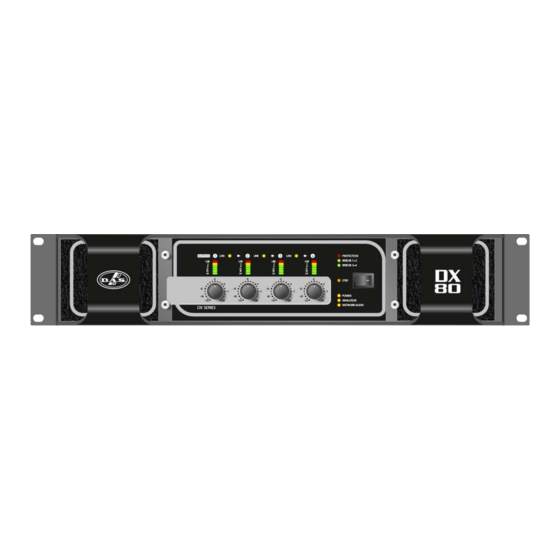

FRONT PANEL PROTECTION LINK LINK LINK BRIDGE 1+2 BRIDGE 3+4 STBY POWER ANALOGUE NETWORK AUDIO DX SERIES Note: The front panel is common for all models. 1: Analogue level controls: These function in both analogue input and network audio input mode. 2: Signal meters: These will show the level of the respective amplifier's output channel. -
Page 11: Rear Panel
All vents on front and rear of unit must not be obstructed. Tous les passages sur avant et arrière de l'unité ne doivent pas être obstrués. Note: Designed and manufactured in England by MC Audio for DAS Audio Group, S.L. The rear panel is common for all models. -
Page 12: Line Inputs And Outputs
REAR PANEL (cont'd) LINE INPUTS AND OUTPUTS The inputs are made via 3-pin XLR connectors, which are electronically balanced and should be connected via a high grade twin core screened cable, as follows: Pin 1: Screen (see note below) Pin 2: Hot (signal +) Pin 3: Cold (signal -) The amplifier is designed to operate with fully balanced equipment and ground loops or loss of performance may be experienced if connected to unbalanced sources. -
Page 13: Bridged (Mono) Operation
REAR PANEL (cont'd) For bi-amped operation, connect as above. There must be no shared connections between channels. Negative output terminals must not be joined together as they are not both at ground potential. Connecting them together will damage the amplifier and void the warranty! As the currents involved are very high, and to ensure best performance, the speaker cables should be kept as short as possible and conform to the following minimum requirements: DX-80, 14A into 4 Ohm speaker loads... -
Page 14: Specifications
SPECIFICATIONS Main Specifications Parameter [Units) DX-80 DX-100 Outout Power o er channel [Crest Fa ct or= 4.8] (Wa tts] 8 Ohms 1000 1400 4 Ohms 2000 28 00 2.7 Ohms 2200 3700 2 Ohms 2000 3 500 Outout Power o er channel bridaed [Crest Fact or= 4.8 ] (Watts] 8 Ohms 4 000 54 00... - Page 15 SPECIFICATIONS (cont'd) Power Consumption and Thermal Emissions - DX-80 Mains Load Current Draw Thermal Emissio ns No Sig'l Light Average Heavy No Sig'l Light Average Heavy 1. 5 3- 4 6 . 3 3 60 37 8 1. 5 5 .0 10 .
- Page 16 www.11sound.com...
