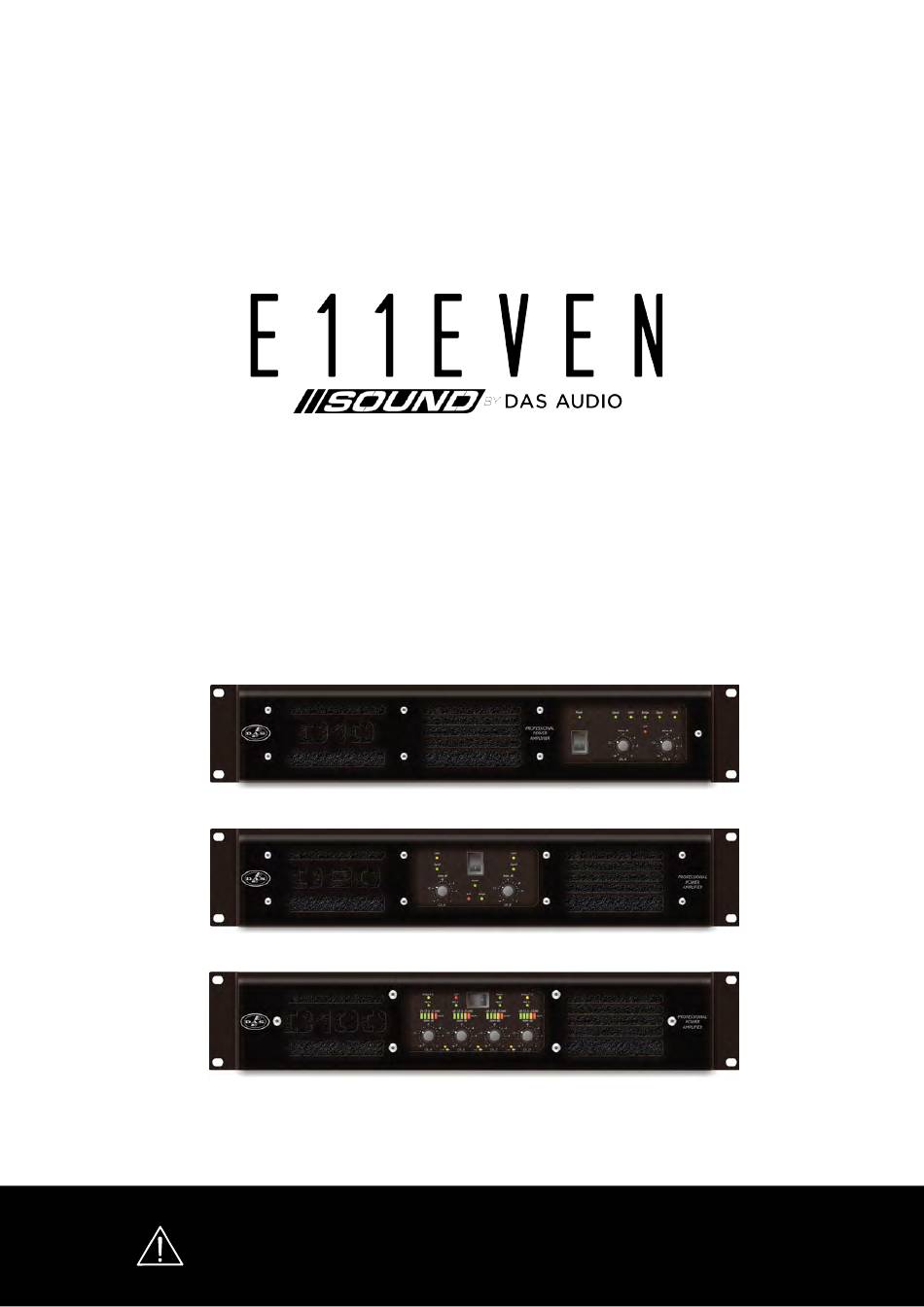

- Page 1 User's Manual D Series - Amplifiers Deliver the Nightclub Sound Experience we all Deserve www.11sound.com Before operating the device, please read the “Safety precautions” section of this manual.
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS DECLARATION OF CONFORMITY WARRANTY INTRODUCTION, UNPACKING THE UNIT, INSTALLATION FRONT PANEL REAR PANEL CONNECTIONS 9 - 11 SPECIFICATIONS APPENDIX I APPENDIX II APPENDIX III E11EVEN SOUND \ D series amplifiers \ User’s Manual... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Terminals marked with the lightning symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. Use only high quality cables with plugs pre-installed. All other installation or modification should be performed only by qualified personnel. This symbol, wherever it appears, alerts you to the presence of un-insulated dangerous voltage inside the enclosure - voltage that may be sufficient to constitute a risk of shock. -
Page 4: Declaration Of Conformity
DECLARATION OF CONFORMITY D 10, D20 & D100 E11EVEN SOUND \ D series amplifiers \ User’s Manual... -
Page 5: Warranty
WARRANTY All our products are warrantied against any manufacturing defect for a period of 36 months from date of purchase. The warranty excludes damage from incorrect use of the product. All warranty repairs must be exclusively undertaken by the factory or any of its authorised service centers. To claim a warranty repair, do not open or intend to repair the product. -
Page 6: Introduction, Unpacking The Unit, Installation
INTRODUCTION Thank you for choosing an E11EVEN Sound product for your application. Please spend a little time reading through this manual so that you can obtain the best possible performance from the unit. All E11EVEN products are carefully designed and engineered for cutting-edge performance and world-class reliability. -
Page 7: Front Panel
FRONT PANEL D-10 D-20 D-100 1: Power Switch: This single pole switch turns the amplifier fully off (but does NOT isolate it from the mains supply). 2: Power LED: This indicates when the amplifier is active. This does NOT indicate the presence of a mains supply when the power switch is OFF. -
Page 8: Rear Panel
REAR PANEL D-10 D-20 D-100 1: Input XLR sockets: Connect signal inputs to these sockets, wired pin 2 hot, 3 cold, 1 ground. For sensitivity and impedance of these inputs, please see the specifications on page 11. When running in bridged (mono) mode, only input A is used (except D-100). -
Page 9: Connections
CONNECTIONS INPUTS The inputs are made via 3-pin XLR connectors, which are electronically balanced and should be connected via a high grade twin core screened cable, as follows: PIN2 - Hot (signal +). Signal Hot. PIN3 - Cold (signal -). Signal Cold. PIN1 - Screen (see note). - Page 10 Only D-100: Additionally Channel A Speakon connector carries Channel B output on Pins +2 & -2 to allow easy bi-amping or bridged operation using a single NL4 connector. Similarly, Channel C's Speakon connector also carries Channel D output. Output Connector A Output Connector C Pin 2+: Hot Ch.B Pin 2+: Hot Ch.D...
-
Page 11: Specifications
Remember, setting higher gain does not change the maximum available power but changes the level of signal input to achieve maximum power. In any case, provided that the input signal is less than 20dBu/7.7V, the built in limiter circuit will prevent distortion within the amplifier. The gain should be set to match the signal level from the source –... - Page 12 OUTPUTS (100V) are: +2 = HOT, -2 = COLD THERE ARE NO USER-SERVICEABLE PARTS INSIDE AND NO MAINTENANCE IS REQUIRED. IN THE EVENT OF A FAILURE, REFER TO A QUALIFIED SERVICE ENGINEER. Parts are available from DAS Audio Group S.L. TECHNICAL SPECIFICATION LINE...
-
Page 13: Appendix Ii
APPENDIX II INSTRUCTIONS FOR USING D-10 AMPLIFIERS WITH 100V/70V LINE TRANSFORMERS Frequency response It is necessary to provide some low frequency roll off to prevent the possibility of the line transformer saturating. On the D-10 the roll off is included on the main board as standard. To bring the 63 Hz roll off into circuit, remove the 4 jumper links at 'hpf'. - Page 14 APPENDIX III Power Consumption and Thermal Emissions: D-100 Mains Load Current Draw Thermal Emissions No Sig’l Light Average Heavy No Sig’l Light Average Heavy 14.4 19.1 16.6 14.0 28.8 17.2 38.2 No Sig'l = Quiescent, Light = Crest Factor of 7.8(18dB), Average = Crest Factor of 4.8(14dB), Heavy = Crest Factor of 2.8(9dB) For details of measurement methods please refer to the Technical Support area of our websit PRC Settings and Maximum Output: D-100...
- Page 15 www.11sound.com...
