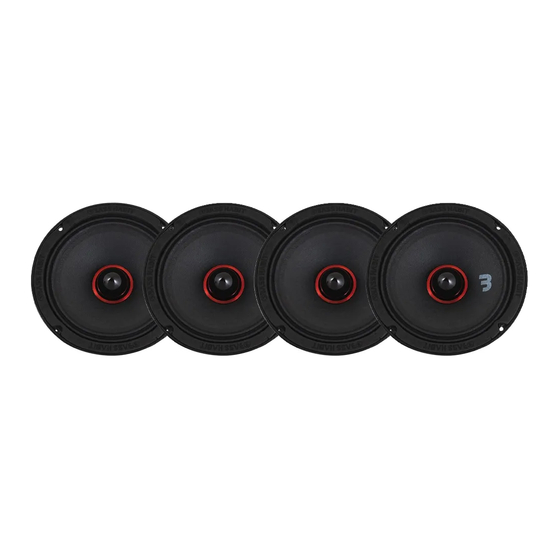

- Page 1 SE165M SE200M SE250M SPL Elite 165/200/250mm Midrange User Manual...
- Page 2 THANK YOU FOR PURCHASING BASS HABIT Thank you for purchasing this Bass Habit speaker. Please read this manual in order to fully understand how to get the best result from this product and ensure that the advices on how to look after the product and the safety precautions are followed.
-
Page 3: Safety And Warranty
Ensure that no moving parts catch on the speaker or grill (e.g. door handles or window glass inside the door). WARRANTY All Bass Habit products carry a full warranty depending on the conditions in the country where it is sold. The warranty is valid from the date of the original receipt as proof of purchase (warranty period differs depending on local warranty laws and policies). - Page 4 Installation of Bass Habit speakers may require experience with a variety of mechanical procedures including enclosure construction. This manual only provides general installation and operation instructions. If you have any reservations about your installation skills, please contact your local authorized Bass Habit dealer for help. CHOOSING SPEAKER MOUNTING LOCATIONS Choosing the correct speaker mounting location will have the greatest effect of the sound quality of the system.
- Page 5 INSTRUCTIONS INSTALLING THE MIDRANGE DRIVER 1) Determine where the speaker will be mounted. Make sure there is a flat area large enough for the speaker to fit properly. An uneven mounting surface can damage the driver. 2) Check to make sure the space you have selected for the speaker will not interfere with vehicle operation. 3) If a template is included in the packaging, use the template and mark the hole with a pen.
-
Page 6: Wiring Examples
WIRING EXAMPLES Your SE165M/SE200M/SE250M midrange driver uses a single 4 ohm voice coil. It is important to know the limits of your amplifier to optimize its performance. You can vary the impedance by altering the wiring configura- tions: Series, Parallel or Series-Parallel. Choose the wiring diagram below that corresponds to the number of speakers in your system and the impedance stability of your amplifier. - Page 7 SPECIFICATION SE165M Midrange Component 165mm (6,5") Size 150W RMS Power 300W MAX Power 4 Ohm Nominal Impedance 100Hz - 10Khz Freq. Response 97 dB Sensitivity Aluminium Frame material Cone material Non Pressed Paper Suspension material M-Roll Cloth Magnet Ferrite Voice Coil Diameter 45mm (1,75") Voice Coil Wire Aluminium...
- Page 8 SPECIFICATION SE200M Midrange Component 200mm (8") Size 200W RMS Power 400W MAX Power 4 Ohm Nominal Impedance 90Hz - 8Khz Freq. Response 97 dB Sensitivity Aluminium Frame material Cone material Non Pressed Paper Suspension material M-Roll Cloth Magnet Ferrite Voice Coil Diameter 45mm (1,75") Voice Coil Wire Aluminium...
- Page 9 SPECIFICATION SP250M Midrange Component 250mm (10") Size 250W RMS Power 500W MAX Power 4 Ohm Nominal Impedance 65Hz - 5Khz Freq. Response 96 dB Sensitivity Aluminium Frame material Cone material Non Pressed Paper Suspension material M-Roll Cloth Magnet Ferrite Voice Coil Diameter 45mm (1,75") Voice Coil Wire Aluminium...
- Page 10 The crossed-out wheelie bin symbol means that the product, literature and packaging included must be taken to separate collection at the end of their working life. Do not dispose of these products as unsorted municipal waste: dispose of them at a recycling point. For info on your nearest recycling point, check with your local waste authority.
