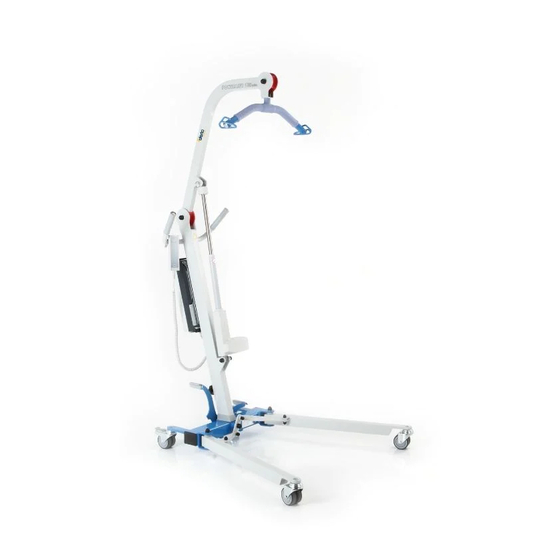

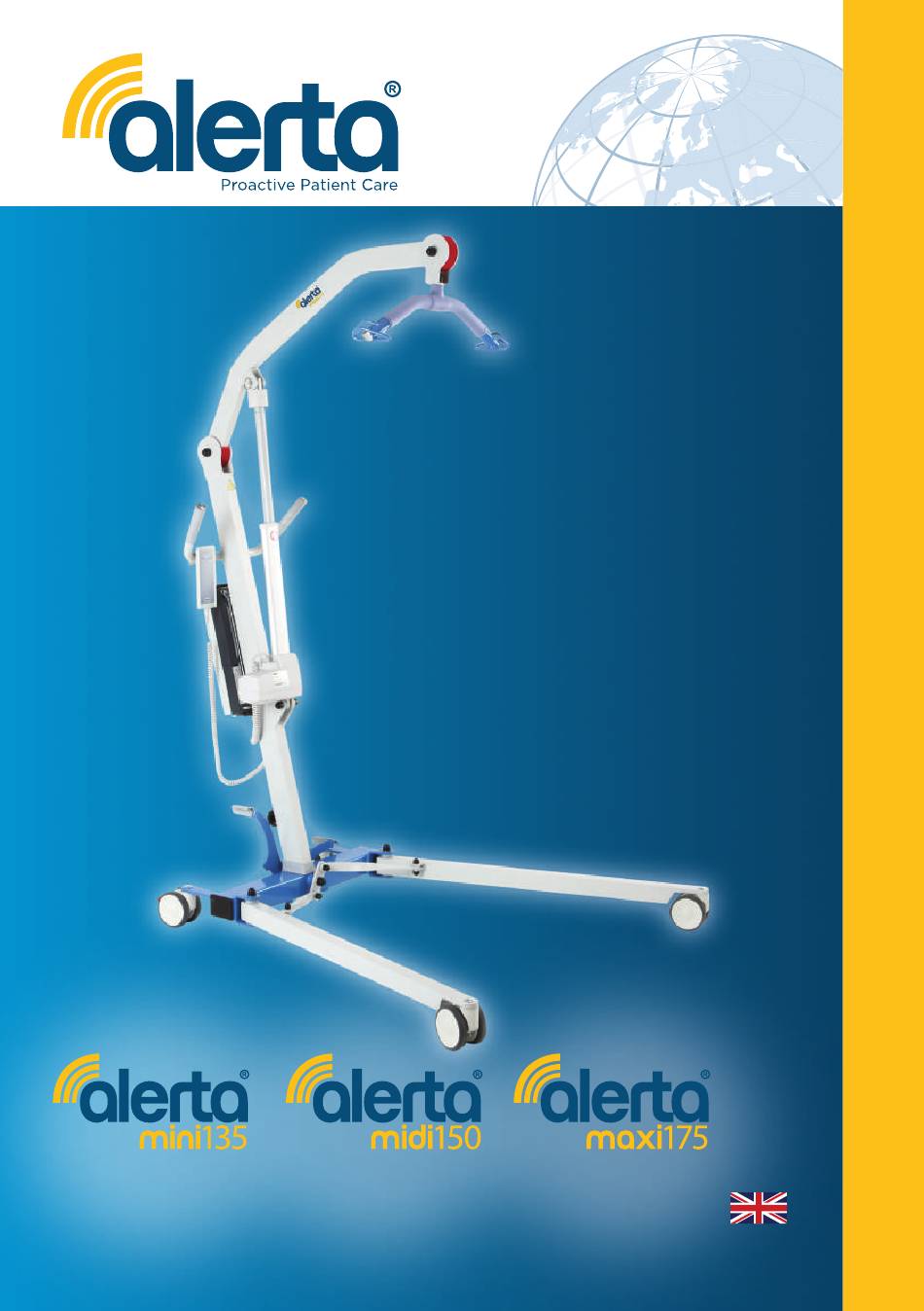

- Page 1 User manual ALT-PL135 ALT-PL150 ALT-PL175 Powerlifter Powerlifter Powerlifter Mini 135 Midi 150 Maxi 175 UK Version...
-
Page 2: Table Of Contents
Contents Features, warranty & technical service Page 03 Safety precautions Page 04 Assembly Page 06 Operating instructions Page 09 Maintenance Page 11 Technical specifications Page 14 www.alertamedical.com PAGE 02... -
Page 3: Features, Warranty & Technical Service
1. Features, warranty & technical service This product is intended by the manufacturer Alerta Medical sells all its products through to be used on humans for the purpose of a network of distributors. In the event of lifting, lowering and moving users. If the... -
Page 4: Safety Precautions
2. Safety precautions 2.2 Braking and moving Any person using or assembling these items must first read and understand the assembly, operating and cleaning instructions provided. While the hoist is stationary, the brakes Read all safety information contained in this should always be on, except when lifting manual (highlighted with the symbol or lowering a patient. - Page 5 It is recommended to establish a patient Some apparatus, particularly older devices, admission procedure that enables identifying that do not comply with electromagnetic risk profiles and applying measures suited to compatibility standards may, however, cause the health condition and behaviour of such or be affected by interference when used patients.
-
Page 6: Assembly
3. Assembly No tools are necessary to assemble the hoist, although some parts are considerably heavy. It is therefore advisable to use the assistance of a helper when handling such parts. Pay attention to avoid being knocked or trapped. 3.1. Components Carefully remove the packaging and place the two pre-assembled structures supplied in a clear area. - Page 7 Model Alerta Powerlifter Picture 1 Making cutting-edge medical equipment affordable PAGE 07...
- Page 8 3.2 Joining the The actuator (10) is supplied and mounted pre-assembled structures on the hoist in the factory. If you need to disassemble the actuator, loosen the ring (a) Place the base structure on the floor with the securing the pin (b). To reassemble do the brakes on the rear wheels (3) on.
-
Page 9: Operating Instructions
4. Operating 4.3 Emergency stop and safety lowering instructions The electrical system includes a red emergency stop button. When the red button 4.1 Spreading and narrowing is in the out position, the battery will operate the legs normally. When the red button is depressed, The hoist’s legs can be narrowed or spread the power from the battery is cut off. - Page 10 4.5 Recharging the battery If you have an extra charging base, you can remove the battery from the charging base If you only have one removable battery and mounted on the hoist and charge it using the one charging base, place the hoist near an extra charging base, suitably located near a electric socket, connect the power supply mains electricity socket.
-
Page 11: Maintenance
5. Maintenance 4.8 Improper use Improper use of this hoist may result in injury 5.1 Safety rules for cleaning to the users and/or damage to the device, and disinfecting in addition to invalidating the warranty. Examples of improper use are: •... - Page 12 5.3 Recommended method 5.5 Preventative maintenance for cleaning and disinfecting It is advisable to carry out a yearly • Use a cloth to clean from top to bottom maintenance check of the hoist and its and from the cleaner to the dirtier parts accessories to ensure they are kept in good working order.
- Page 13 5.8 Troubleshooting PROBLEM CAUSE REMEDY The actuator is The red emergency Turn the red button not working stop is activated clockwise to deactivate The battery is connected Unplug the black power to the electricity mains supply cable from the mains for recharging The battery is low Recharge the battery...
-
Page 14: Technical Specifications
6. Technical specifications (Feb. 2015) Forward www.alertamedical.com PAGE 14... - Page 15 Powerlift 150 hoist Approx. 75° size (cm) 57,5 11,5 174,5 115,5 • Height: minimum 115.5 cm (Q) maximum 174.5 cm (P) • Width: minimum 54 cm (A) maximum 102 cm (C) • Length: 123 cm (V) • Internal width at maximum reach: 77 cm •...
- Page 16 Powerlift 175 hoist Approx. 94,5 55,5 75° size (cm) 11,5 • Height: minimum 133 cm (Q) maximum 186 cm (P) • Width: minimum 64 cm (A) maximum 114 cm (C) • Length: 136 cm (V) • Internal width at maximum reach: 82 cm •...
- Page 17 POWERLIFT 150/135 Mini/175 User manual (Feb. 2015) Forward Making cutting-edge medical equipment affordable PAGE 17...
- Page 18 Powerlift 135 Mini HOIST Approx. 75° size (cm) 111,5 • Height: minimum 116 cm (Q) maximum 181 cm (P) • Width: minimum 54 cm (A) maximum 96 cm (C) • Length: 113 cm (V) • Internal width at maximum reach: 77 cm •...
- Page 19 Notes Making cutting-edge medical equipment affordable PAGE 19...
- Page 20 Making cutting-edge medical equipment affordable Head Office Alerta Medical 4 Symington Place Riverside Business Park Irvine KA11 5DE United Kingdom www.alertamedical.com...
