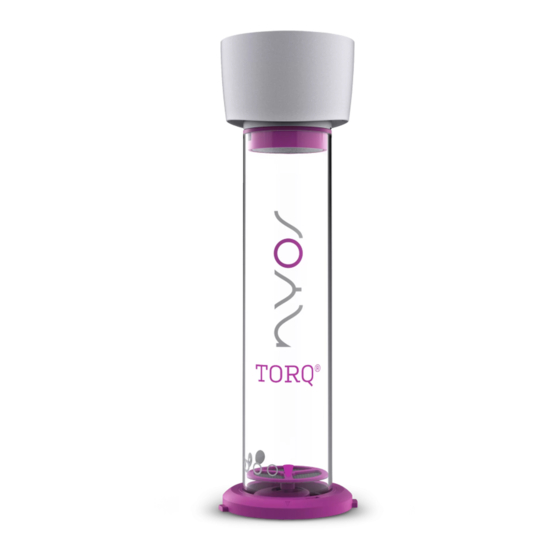

- Page 1 TORQ® G2 system reactor for filter media INSTRUCTIONS TORQ G2 Dock & TORQ G2 Body 0.75 | 1.0 | 2.0 ® ®...
-
Page 2: Table Of Contents
CONGRATUL ATIONS Congratulations to your new Nyos TORQ G2 media reactor. ® ® Please read the instructions and safety information carefully before you use the device. CONTENTS SAFETY INFORMATION ..............3 WARRANTY................. 4 INSTALLATION AND OPERATION ..........6 RECOMMENDED MEDIA CAPACITIES AND TANK SIZES ....12 FAQ AND TROUBLE SHOOTING ........... -
Page 3: Safety Information
SAFETY INFORMATION • Only connect the unit if the electrical data of the unit and the power supply coincide. The unit data is to be found on the unit type plate. • The pump may only be connected to an outlet with earth contact. -
Page 4: Warranty
• This device is not intended for the use by persons (inclu- ding children) with limited physical, sensory or mental capacities, unless they are supervised by a person respon- sible for the safety or this person instructed them on how to use the device. - Page 5 EXCLUSION OF WARRANTY This warranty does not cover: • Soiling and lime scale deposits • Dry running of the pump • Wear and tear damages on wear and tear parts (e.g. rotor, seals) • Improper handling and use (including the use of products from other manufacturers) •...
-
Page 6: Installation And Operation
INSTALLATION AND OPERATION STEP 01 Positioning the Nyos TORQ G2 Dock in your sump ® ® • You receive your Nyos TORQ G2 Dock as plug-and-play ® ® model. The pump has already been installed. • Nyos TORQ G2 has been designed for in sump use. The ®... - Page 7 STEP 02 Filling the TORQ G2 Bodies ® General information on filling Nyos TORQ G2 Bodies ® ® • The lower insert and the lid can be removed from the tube with a slight turn (Fig. 2a and 2b). • Make sure both marks are aligned when connecting tube (Fig.
- Page 8 Filling with one filter media 1. Remove the lid by slightly turning it. 2. The separating grid included with Body 1.0 and 2.0 (part no. 5, page 17) can be removed when only one filter media is used. 3. Add the filter media from the top. Put the lid back on and turn it to lock position (Fig.
- Page 9 3. Put the insert on the acrylic stick and close the tube by turning the insert. 4. Turn the body again and remove the lid. Add the second filter media and put the lid back on (Fig. 5). (Fig. 5)
- Page 10 STEP 03 Insert TORQ G2 Body and start ® operation • Place the filled body on the dock. The body can only be placed on the dock if the two violet markings point to each other. This is the position for removal and insertion.
- Page 11 • The Nyos TORQ G2 media reactor was ® ® designed in such a way that it is virtually bubble-free and silent at optimum use. This requires a run-in period of several days. A smear layer is created on the out- side of the body, so that the water fully moistens the body.
-
Page 12: Recommended Media Capacities And Tank Sizes
TORQ G2 Body 1.0 TORQ G2 Body 2.0 ® ® ® Usage of one filter media Phosphate remover (Nyos PHOSI-EX) ® Maxium capacity 450 ml (15 fl oz) 750 ml (25 fl oz) 1.500 ml (50 fl oz) Optimal capacity... -
Page 13: Faq And Trouble Shooting
FAQ AND TROUBLE SHOOTING PROBLEM CAUSE SOLUTION Bubbles in the outlet and Water does not fully moisten Wait for a few days (even after splattering the outside of the body cleaning) to allow the smear layer on the outside of the body to regenerate itself Flow rate is too high Reduce flow rate... -
Page 14: General Information
GENERAL INFORMATION Emergency overflow The filter sponge of the lid of Nyos TORQ G2 has a hole in ® ® the middle (emergency overflow). In case water exits the hole, clean the sponge. Using filter floss For very dirty or abrasive filter media, you can use filter floss in the free space of the lid (Fig. -
Page 15: Maintenance And Cleaning
MAINTENANCE AND CLEANING Filter floss in case of severe soiling • Nyos TORQ G2 Bodies can be cleaned easily with tap ® ® water. There is no need to use detergents. • The grid of the pump should be cleaned regularly in order to ensure constant performance. -
Page 16: Spare Parts And Exploded Drawings
PARTS LIST TORQ G2 BODIES ® Number TORQ G2 Body 0.75 TORQ G2 Body 1.0 TORQ G2 Body 2.0 ® ® ® Lid 70 Lid 70 Lid 100 Art.: T-BSP_4331 Art.: T-BSP_4331 Art.: T-BSP_4348 Filter sponge for Filter sponge for Filter sponge for lid 70 lid 70... - Page 17 EXPLODED DRAWINGS TORQ G2 BODIES ® TORQ G2 Body 0.75 TORQ G2 Body 1.0 TORQ G2 Body 2.0 ® ® ®...
- Page 18 PARTS LIST AND EXPLODED DRAWING TORQ G2 DOCK ® Number TORQ G2 Dock TORQ G2 DOCK ® ® Motor block Part No.: T-DSP_Motor Impeller Part No.: T-DSP_Imp Shaft Part No.: T-DSP_2740 Bearing Part No.:T-DSP_2757 12, 13, 14 Pump housing with slider Part No.: T-DSP_2764 Dock housing...
- Page 19 NOTES...
- Page 20 Manufactured by Nyos Aquatics GmbH ® Siemensstr. 26 70825 Korntal-Muenchingen, Germany www.nyos.info, support@nyos.info Patents pending in EU, US and elsewhere. TORQ is a protected ® trademark of Nyos Aquatics GmbH. ®...
