Summarization of Contents
Introduction and Welcome
Welcome to Rizoma (ENG)
Welcome message and congratulations on choosing Rizoma products.
Product Usage and Safety Guidelines (ENG)
Follow instructions for correct mounting, use, and safety. Skilled personnel recommended for installation.
General Conditions and Safety
Pre-Ride Checks and Warnings (ENG)
Check fasteners are tightened to torque specs before riding; follow instructions to avoid injury or death.
Installation and Maintenance Advice (ENG)
Ensure correct positioning, check all component functions periodically, and perform regular inspection and maintenance.
Product Compatibility and Repair (ENG)
Rizoma products may not be compatible; do not repair or modify; contact dealer for assistance.
Product Identification and Documentation
Part Number and Model Name

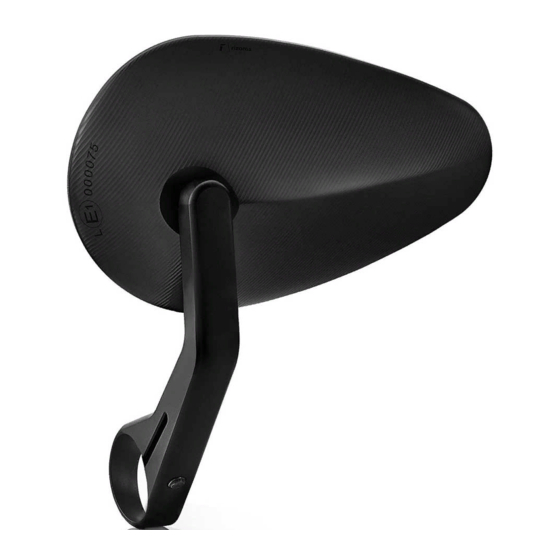

Identifies the product as part number BS232, Mirror "REVERSE RADIAL".
Homologation Information (ENG)
Download homologation document from Rizoma website for road circulation compliance.
Pre-Assembly Information
Kit Contents and Difficulty (ENG)
Check kit completeness, difficulty level is simple, assembly time is 10-15 minutes.
Cleaning and Product Use (ENG)
Warning on cleaning: use neutral detergent and cold water only. Avoid aggressive products.
Road Use Disclaimer (ENG)
Some products are not approved for road circulation; Rizoma disclaims responsibility for different uses.
Installation Steps
Step 1: Mount Mirror on Handlebar (ENG)
Clean and degrease mirror shaft hole, bushing, and handlebar exterior.
Step 2: Mount with Universal Adapter (ENG)
Assemble mirror with universal adapter using expanders, threaded bushing, and washer.
Step 3: Tightening the Screws (ENG)
Lubricate screw threads and heads; tighten to 12-14Nm (9 ft.lb).
Step 4: Install Right Hand Mirror (ENG)
Ensure approx. 1mm clearance between adapter and throttle grip on the right side.
Step 5: Adjust Mirror Position (ENG)
Find desired mirror position and tighten the screw to 12-14Nm (9 ft.lb).
Step 6: Check Minimum Clearance (ENG)
Ensure minimum 5mm clearance between mirror and lever stroke.
Step 7: Install Included Caps (ENG)
Use included caps to close the fixing hole of the OEM mirror.
Important Warnings and Rider Responsibilities
Product Changes and Stunt Riding Risks (ENG)
Rizoma may change products; stunt riding is dangerous and increases injury risk.
Legal Compliance and Rider Skill (ENG)
Italian law applies; user acknowledges own skill limits and agrees to jurisdiction.
Essential Safety Gear (ENG)
Always wear a properly fitted and fastened helmet and appropriate safety equipment.
Motorcycle and Tire Maintenance (ENG)
Follow motorcycle instructions, check tire pressure and condition.
Legal Notes and Homologation Disclaimers
Road Circulation Approval (ENG)
Some products are not approved for road circulation where required; Rizoma disclaims responsibility.
