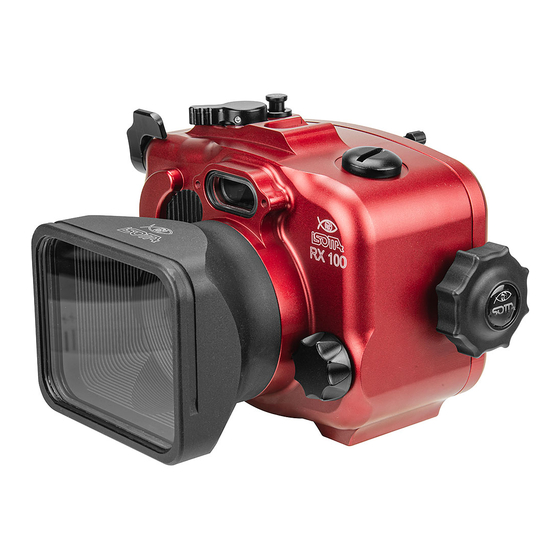

- Page 1 HOUSINGS and ACCESSORIES for UNDERWATER PHOTOGRAPHY Instructions for Sony RX100 Mark VI and RX100 Mark VII www.isotecnic.it...
- Page 2 Thank you for purchasing a product of the line ISOTTA. We are confident that you will benefit from the outstanding performance of our product, manufactured using the most advanced technology available. Our service goes wherever you go: +39 045 6450480 support@isotecnic.it...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Identifying the Parts .......... pag. 04 Warranty .............. pag. 06 Package contents ..........pag. 08 Specifications ............. pag. 08 Precautions ............pag. 09 Quick start guide ..........pag. 10 Parts of the housing .......... pag. 11 Mounting the port ..........pag. 12 Opening and locking the housing ..... -
Page 4: Identifying The Parts
IDENTIFYING THE PARTS Zoom Lever Small Window for built-in flash Shutter Lever Locking knob Front dial Port Flash Lever Accessory Slide Mode Dial LED humidy sensor Control Dial Follow us on... - Page 5 FRONT DIAL Instructions Cyber-Shot RX100 Mark VI and VII* ACCESSORY SLIDE LED HUMIDITY SENSOR Instructions Isotta Compact Camera Housings page 20 FLASH LEVER / Instructions Cyber-Shot RX100 Mark VI and VII* REC / Instructions Cyber-Shot RX100 Mark VI and VII*...
-
Page 6: Warranty
Warranty Certificate indicating the year, month and date of purchase proven by the corresponding original invoice or purchase receipt issued by the authorized Isotta dealer and the serial number of the product making sure to affix the stamp of the dealer on the certificate. - Page 7 4. Any defect or damage that occurs due to fire and natural disasters, environmental pollution and irregular voltage sources. 5. Any defect that occurs due to careless or improper storage and improper maintenance. 6. Any defect that occurs due to exhausted batteries. Batteries are not guaranteed as they are not manufactured by the company Isotecnic, this does not mean that they are not sourced from the best brands on the market.
-
Page 8: Package Contents
• Lubricant • Optical Fiber SPECIFICATIONS All housings are made entirely of Isotta’s signature red-colored anodized aluminum which is anti-corodal with depth rate to 330ft/100m. With double O-Ring seals on each button and on all removable parts to make it extra safe against leakages, every housing has clearly labeled camera controls and is closed with Isotta’s single handed one-turn... -
Page 9: Precautions
Do not use lubricants from other brands with the silicone rubber O-rings on this housing, only use the lubricant provided by ISOTTA. After checking the O-rings to make sure that there are no scratches, dust, or debris, apply a light coating of silicone grease to the entire O-rings with your finger. -
Page 10: Quick Start Guide
13. Unauthorized disassembling and/or modification could result in malfunction or flooding and void product warranty. Take the product to a ISOTTA authorized reseller for repair or inspection. The housing is possible only after cleaning and drying its surface. QUICK START GUIDE 1. -
Page 11: Parts Of The Housing
PARTS OF THE HOUSING FRONT The housing front accomodates the camera. All camera controls are external and are laser-engraved with the symbols for the camera functions. To better understand the functioning of all controls we invite to read the camera’s manual carefully. On the window sides (or central) there are two threaded holes where one or two external strobes can be connected by optical fiber using the adaptor included. -
Page 12: Mounting The Port
MOUNTING THE PORT Included with the case is provided a flat port in tempered glass that, depending on the camera model you choose and his lens, can be fixed or removable. Recognize which kind of port you need for your camera is simple. It is sufficient to check if there is a lock in the camera lens. -
Page 13: Opening And Locking The Housing
OPENING AND LOCKING THE HOUSING 1. The housing can be opened and closed by operating with only one hand. When opening, pull the opening knob, then turn the knob counter-clockwise until the outside housing opens. 2. Remove the back of the housing by pulling it oblique slightly to release the two pins. -
Page 14: Troubleshooting
N.B.* Don’t use vaseline grease on the O-rings seals. We recommend the use of original ISOTTA products. • TRACES OF SALT ON JOINTS WHILE ASSEMBLY HOUSING Salty water on the joints: rinse well and wipe the points with Vaseline oil, except for the optics, which should be cleaned only with special detergents. -
Page 15: Warnings
WARNINGS • CHECK the housing before installing the camera after dispatch or transport it by plane. • DON’T TRANSPORT the housing hermetically sealed on a plane. Remove the rear cap or the rear cap’s o-rings. If you remove the O-rings, then remember to put them back on. •... -
Page 16: Care And Maintenance
N.B. Never use Vaseline oil to lubricate the O-rings, use only silicone grease. We recommend the use of ISOTTA products. - Do not use solvents, thinners, or alcohol to clean the port or the monitor. - Treat the surface of the lens port like a camera lens. After use, rinse and gently dry the outside lens port to avoid water spotting. - Page 17 It is recommended that you ship the housing to our distributor or to Isotecnic factory for a complete overhaul every 2 years or after 500 dives. No reproduction in any form of this manual, in whole or in part, may be made without written authorization from ISOTECNIC Srl.
- Page 18 HOUSINGS and ACCESSORIES for UNDERWATER PHOTOGRAPHY Via Milano, 177/B | Castelnuovo del Garda (VR) | 37014 | Verona | Italy Tel. +39 045.6450480 info@isotecnic.it | www.isotecnic.it Follow us on...
