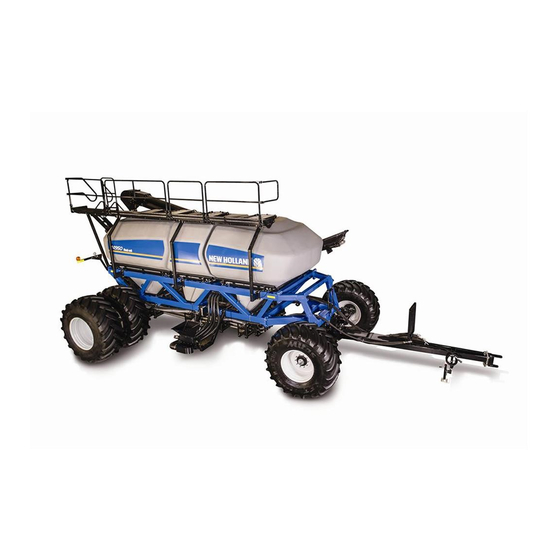

SERVICE MANUAL
P2350 / P3440 / P3550 /
P4460 / P4580 / P4760 /
Part number 47827462
1
edition English
st
April 2017
P4950
Air Cart

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P4580 and is the answer not in the manual?

Questions and answers

Related Manuals for New Holland P4580

Summary of Contents for New Holland P4580

  • Page 1 SERVICE MANUAL P2350 / P3440 / P3550 / P4460 / P4580 / P4760 / P4950 Air Cart Part number 47827462 edition English April 2017...
  • Page 2 SERVICE MANUAL P2350, P3440, P3550 , P4460, P4580, P4760, P4950 47827462 28/04/2017 Find manuals at https://best-manuals.com...
  • Page 3 Contents INTRODUCTION Front axle system ............... 25 [25.400] Non-powered front axle ............25.1 Rear axle system................
  • Page 4 [55.640] Electronic modules ..............55.9 [55.785] Precision farming system .
  • Page 5 47827462 28/04/2017 Find manuals at https://best-manuals.com...
  • Page 6 INTRODUCTION 47827462 28/04/2017 Find manuals at https://best-manuals.com...

  • Page 7: Table Of Contents

    Contents INTRODUCTION Foreword (*) ..................3 Foreword - Important notice regarding equipment servicing .

  • Page 8: Foreword

    INTRODUCTION Foreword P Series Air Carts Technical information This information in this manual has been structured using a unique coding environment. This is the way in which technical information is created, stored, and retrieved in the Technical Information Database. The coding has aligned locations with the warranty system.

  • Page 9: Foreword - Important Notice Regarding Equipment Servicing

    Specifications, descriptions, and illustrative material herein are as accurate as known at time of publication but are subject to change without notice. In case of questions, refer to your NEW HOLLAND Sales and Service Networks. 47827462 28/04/2017...

  • Page 10: Safety Rules

    INTRODUCTION Safety rules P Series Air Carts Personal safety This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible death or injury. Throughout this manual you will find the signal words DANGER, WARNING, and CAUTION followed by special in- structions.

  • Page 11: Safety Rules (*)

    INTRODUCTION Safety rules P Series Air Carts WARNING Chemical hazard! Wear protective clothing and a face shield when working with chemicals. Do not allow chemicals to contact skin or eyes. Always follow the chemical manufacturer's instructions. Failure to comply could result in death or serious injury. W0052A WARNING Unexpected machine movement!
  • Page 12 INTRODUCTION DO NOT attempt to remove material from any part of the machine while it is being operated or components are in motion. Make sure all guards, shields and handrails are in good condition and properly installed before operating machine. Never operate the machine with shields removed.
  • Page 13 INTRODUCTION When welding follow the instructions in the manual. Always disconnect battery before welding on machine. Always wash your hands after handling battery components. Wheels and tires Make sure tires are correctly inflated. Do not exceed recommended load or pressure. Follow instruction in the manual for proper tire inflation.
  • Page 14 INTRODUCTION Driving on public roads and general transportation safety The Slow Moving Vehicle (SMV) sign must be located at the rear of the implement. Comply with local laws and regulations. Use appropriate lighting to meet local regulations. Make sure Slow Moving Vehicle (SMV) emblem and/or Speed Indicator Symbol (SIS) is visible. Use safety chains for trailed equipment when provided with machine or equipment.
  • Page 15 INTRODUCTION When welding on the machine, disconnect both terminals of the battery. Do not weld, grind or smoke near a battery. Follow manufacturer’s instructions when storing and handling batteries. CALIFORNIA Proposition 65 Warning Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm.
  • Page 16 INTRODUCTION Make sure the machine has sufficient clearance to pass in all directions. Pay special attention to overhead power lines and hanging obstacles. High voltage lines may require significant clearance for safety. Contact local authorities or utilities to obtain safe clearance distances from high voltage power lines. Retract raised or extended components, if necessary.

  • Page 17: Safety Rules - Ecology And The Environment

    Improper disposal of batteries can contaminate the soil, groundwater, and waterways. NEW HOLLAND strongly recommends that you return all used batteries to a NEW HOLLAND dealer, who will dispose of the used batteries or recycle the used batteries properly. In some countries, this is a legal requirement.

  • Page 18: Hand Signals

    INTRODUCTION Hand signals P Series Air Carts It is often necessary to communicate using hand signals in agricultural operations when noise or distance inhibit communication by voice. The ASAE S351 standard illustrates these hand signals, which provide an easy means of communication, particularly in the interest of safety.

  • Page 19: Safety Signs

    Safety signs that display the “Read service manual” symbol direct you to the service manual. If you doubt your ability to perform service operations, contact your dealer. NOTE: New decals are available from your NEW HOLLAND dealer. SAIL15SE00440FA Tow- behind air cart...
  • Page 20 INTRODUCTION SAIL15SE01087FA Tow - between air cart with auxiliary tank 47827462 28/04/2017...
  • Page 21 INTRODUCTION All models CAUTION Pressurized tanks apply considerable force to lids. Never open lids when pressurization fan is operating. Failure to comply could result in minor or moderate injury. Quantity: 1 per tank lid Part number: 47681081 47681081 On tank lid (1). SAIL15SE00397AA Auxiliary tank models CAUTION...
  • Page 22 INTRODUCTION All models WARNING Stop fan before opening lid. Do not operate fan with lid open. Avoid exposure to airborne chemicals. Dust and fumes will be exhausted if fan is operated with tank lid open. Chemicals may cause eye, skin or breathing problems.
  • Page 23 INTRODUCTION Auxiliary tank models WARNING Stop fan before opening lid. Do not operate fan with lid open. Avoid exposure to airborne chemicals. Dust and fumes will be exhausted if fan is operated with tank lid open. Chemicals may cause eye, skin or breathing problems.
  • Page 24 INTRODUCTION WARNING Do not ride on machine. Do not stand on tank. Failure to comply could result in death or serious injury. Quantity: 1 Part number: 84004732 84004732A On platform handrail at top of ladder (3). SAIL15SE00396AA DANGER Crush hazard. Exercise caution when manipulating auger, be aware of your surroundings and potential pinch points.
  • Page 25 INTRODUCTION CAUTION Lower ladder may swing upwards rapidly. See operator's manual for setting spring tension. Failure to comply may result in minor or moderate injury. Quantity: 1 Part number: 47681057 47681057 On ladder (5). SAIL15SE00392AA WARNING Rotating parts (fan and alternator drive) Before removing any guards stop tractor and remove key.
  • Page 26 INTRODUCTION CAUTION Avoid hearing loss, wear hearing protection when fans are operating. Failure to comply could result in minor to moderate injury. Quantity: 1 Part number: 47405861 47405861A On left side of frame (7). SAIL15SE00415AA All models CAUTION Avoid injury! Read and follow the instructions in this manual.
  • Page 27 INTRODUCTION Auxiliary tank models CAUTION Avoid injury! Read and follow the instructions in this manual. Failure to comply could result in minor or moderate injury Quantity: 1 2 (auxiliary tank equipped) Part number: 47358801 47358801A On auxiliary tank door (8) (left side). SAIL16SE00079AA WARNING Loss of control hazard! Do not operate on steep...
  • Page 28 INTRODUCTION WARNING Loss of control hazard! Drive within the limits of road conditions and machine loading. Never exceed 32 km/h (20 mph) when towing the machine. Failure to comply could result in death or serious injury. Quantity: 1 Part number: 47403730 47403730A On left side of frame (10).
  • Page 29 INTRODUCTION DANGER 1. Stay away from intake end. Keep others away. 2. Keep all shields in place. 3. Keep hands, feet, hair and clothing away from flighting. Failure to comply will result in death or serious injury. Quantity: 1 English: GD-500.80 French Canadian: 425209A1 Russian: GD-500.80RU GD50080...
  • Page 30 INTRODUCTION P3550, P4580, P4950 only WARNING ENTRY HAZARD NO LADDER THIS HATCH DO NOT ENTER. Failure to comply could result in death or serious injury. Quantity: 2 Part number: English: 84316465 French–Canadian: 84316466 84316465 (14) on rear tank lids on tanks that have two lids. SAIL15SE01220AA 47827462 28/04/2017...
  • Page 31 INTRODUCTION Conveyor only WARNING Rotating parts (conveyor belts) Before removing any guards stop tractor and remove key. Use lock-out tags/procedures as required to prevent unanticipated machine operation. Do not operate with guards removed. Failure to comply could result in death or serious injury.

  • Page 32: Safety Signs

    INTRODUCTION Safety signs ATTENTION Auger must be locked in transport position. Failure to do so may result in implement damage. Quantity: 1 English: GD-500.06 French-Canadian: 425129A1 GD-500-06 On auger tube (16) near transport lock. SAIL15SE00401AA ATTENTION When operating auger fan motor case drain must be connected or fan motor failure will result.
  • Page 33 INTRODUCTION Auger only Auger motor operation guide, when operating the auger turn handle up to convey product up the tube (towards tanks), and down to convey product down the tube (to the hopper) Quantity: 1 Part number: 87503917 87503917 On auger tube (18) SAIL15SE00401AA Auger only Auger motor operation guide, when operating the...
  • Page 34 INTRODUCTION Operation of meter control handles. Note that meter NOTE: The decal in a particular location shows the handle should be placed in storage position when correct handle orientation. tank is not in use. Quantity: 1 per meter bank Part number: 47681087 47681088 47681089 47681090...
  • Page 35 INTRODUCTION Operation of meter control handles. Note that meter NOTE: The decal in a particular location shows the handle should be placed in storage position when correct handle orientation. tank is not in use. Quantity: 1 per meter bank Part number: 47681087 47681088 47681089 47681090...
  • Page 36 INTRODUCTION Conveyor only IMPORTANT Belt alignment and belt tension should be checked periodically. Belt damage will occur if alignment or tension has not been maintained. Belt tension should be 31 N·m (23 lb ft) of torque on adjustment bolts. Belt should be tracked to be centered on the idle and drive roller.
  • Page 37 INTRODUCTION NOTICE Fan motor case drain line Failure to connect this line to a case drain port with less than 170 kPa (26 psi) back pressure will result in motor failure and the voiding of warranty. Quantity: 1 Part number: 47432848 47432848 On the case drain line near the coupler (23).

  • Page 38: Basic Instructions - Shop And Assembly

    Only use CNH Original Parts or NEW HOLLAND Original Parts. Only genuine spare parts guarantee the same quality, duration, and safety as original parts, as they are the same parts that are assembled during standard production. Only CNH Original Parts or NEW HOLLAND Original Parts can offer this guarantee.
  • Page 39 W0111A Special tools The special tools that NEW HOLLAND suggests and illustrate in this manual have been specifically researched and designed for use with NEW HOLLAND machines. The special tools are essential for reliable repair operations. The special tools are accurately built and rigorously tested to offer efficient and long-lasting operation.

  • Page 40: Liquid Fertilizer System - Torque - Fasteners

    INTRODUCTION Liquid fertilizer system - Torque - Fasteners P Series Air Carts Society of Automotive Engineers (SAE) fastener torque Use these torques, unless special torques are specified. Values are for Unified Coarse (UNC) and Unified Fine (UNF) thread fasteners, plated or unplated, as received from supplier. Fasteners can be dry or lubricated with normal engine oil.
  • Page 41 INTRODUCTION Metric International Standards Organization (ISO) fastener torque Use these torques, unless special torques are specified. Values are for coarse thread fasteners, plated or unplated, as received from supplier. Fasteners can be dry or lubricated with normal engine oil. Values do not apply if graphite, molydisulphide or other extreme pressure lubricant is used.

  • Page 42: Torque - Hydraulic Tubes And Fittings

    INTRODUCTION Torque - Hydraulic tubes and fittings P Series Air Carts NOTICE: The torque values given are for DRY TORQUES Standard torque data for hydraulic tubes and fittings Hoses / Tubes to Steel Fittings 37° Flared Fittings Size Tubing OD Thread Size LB FT Inches...

  • Page 43: Basic Instructions - Measuring Voltages

    INTRODUCTION Basic instructions - Measuring voltages P Series Air Carts Tools for electronics system troubleshooting For diagnosing problems with the electronics system you may use one or all of these tools. 1. The monitor diagnostic screens show sensor and system voltages. 2.
  • Page 44 INTRODUCTION reading. If the meter reading minus the probe resistance is less than 0.1 ohms, the two points have electrical continuity. RESISTANCE To measure the resistance between two points. 1. Set your meter to measure resistance (usually labeled with the ohm symbol). 2.

  • Page 45: Basic Instructions - Electrical Testing - Connector Inspection

    INTRODUCTION Basic instructions - Electrical testing - Connector inspection During troubleshooting, always inspect the condition of the pins and cavities on the mating male and female connectors: • Check for moisture in the connectors. • Check for corrosion on the pins and in the cavities. •...
  • Page 46 INTRODUCTION Corroded pins or cavities Inspect the pins and cavities for corrosion which can cause a weak electrical connection between the mating connectors. If corrosion is present, replace the affected pins and cavities. RCIL06PTR105BAA Bent pin Inspect the pins on the male connector. If a pin is bent and will not properly mate with its cavity in the female connector, replace the pin.
  • Page 47 INTRODUCTION Touching pins Inspect the pins on the male connector. If a pin is bent to the point where it is shorted to another pin within the connector, replace the pin. RCIL06PTR104BAA Recessed pin Inspect the male connector for recessed pins, where the pin is pushed back into the connector body, providing min- imal contact when the two connectors are joined.
  • Page 48 INTRODUCTION Broken pin Inspect the male connector for broken pins, where the pin remains with its female cavity, providing minimal contact when the two connectors are joined. RCIL06PTR108BAA 47827462 28/04/2017...

  • Page 49: Basic Instructions - Electrical Testing - Measuring Voltage

    INTRODUCTION Basic instructions - Electrical testing - Measuring voltage RCIL06PTR019CAA 1. Select the DC voltage function on the multimeter. 2. Turn system power ON. 3. Touch the positive (+) lead of the multimeter to the pin or cavity that is being tested. Touch the negative (-) lead to a reliable source of tractor battery ground.

  • Page 50: Basic Instructions - Electrical Testing - Measuring Resistance

    INTRODUCTION Basic instructions - Electrical testing - Measuring resistance RCIL06PTR018CAA To accurately measure small resistances, the internal resistance of the multimeter must be subtracted from the measured resistance. To find the internal resistance of your multimeter: • Turn the multimeter ON. •...

  • Page 51: Basic Instructions - Electrical Testing - Measuring Continuity (Resistance)
