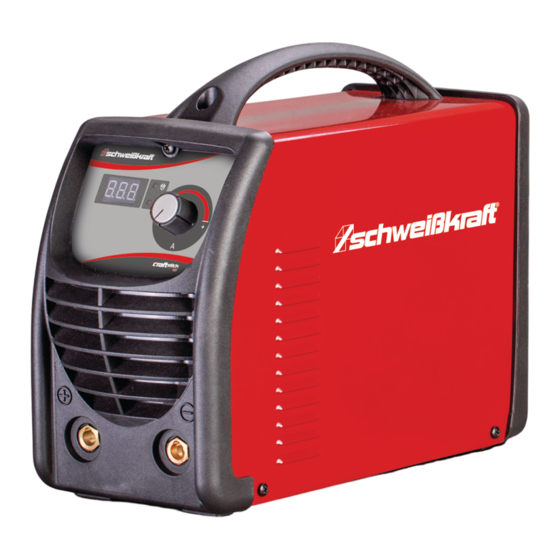

- Page 1 Operating Instructions Electrode Inverter CRAFT-STICK 141 CRAFT-STICK 161, CRAFT-STICK 161P CRAFT-STICK 201P CRAFT-STICK 201P CRAFT-STICK 141...
-
Page 2: Table Of Contents
Product identification 1 Introduction ..........3 1.1 Copyright ............3 Electrode Inverter Item number 1.2 Customer service..........3 1.3 Limitation of liability..........3 CRAFT-STICK 141 1073141 2 Safety ............3 CRAFT-STICK 161 1073161 2.1 Symbol explanation ..........3 CRAFT-STICK 161P 1073162 2.2 Personal protective equipment ...... -
Page 3: Introduction
Introduction Introduction 1.3 Limitation of liability All information and notes in these operating instructions You have made a good choice by purchasing the were summarised while taking applicable standards and Schweißkraft electrode inverter. rules, the state-of-the-art technology and our long-term knowledge and experiences into consideration. -
Page 4: Personal Protective Equipment
Safety CAUTION! Protective gloves with pulse pro- tection This combination of symbol and signal words indi- The protective gloves with pulse protection prevent cates a possibly dangerous situation which may lead the hands from sharp-edged components, as well as to minor or light injuries if they are not avoided. from friction, abrasions, light burns or deeper injuries. -
Page 5: Intended Use
Intended Use Technical Data 4.1 Type plate Fig. 1: Safety labels Fig. 2: Type plate CRAFT-STICK 141 and CRAFT-STICK 201P Intended Use The device is used exclusively for arc welding according to MMA and TIG (only models 161P and 201P ). -
Page 6: Tables
Technical Data 4.2 Tables Parameter CRAFT- CRAFT- STICK 161P STICK 201P Parameter CRAFT- CRAFT- Supply voltage 230 V 230 V STICK 141 STICK 161 50 / 60 Hz Supply voltage 230 V 230 V Type of current 50 / 60 Hz Input current MMA 22,1 A / MMA 28,8 A /... -
Page 7: Transport, Packaging, Storage
Transport, packaging, storage Transport, packaging, storage Operating principle 5.1 Delivery and Transport The EASY-STICK 121 welding unit is an electrode inver- After delivery, check the device for visible transport da- ter for welding with all common rutile, stainless steel and mage. -
Page 8: Principle Of Tig Welding
Operating principle Rod electrode Inert gas nozzle Gas and slag Tungsten Coating electrode Molten bath Inert gas Core rod Filler material Molten baht Workpiece Workpiece Fig. 4: Principle of TIG welding Fig. 3: Functional principle manual arc welding Direct current welding: Welding current and electrode diameter: For welding alloyed steels and non-ferrous metals. -
Page 9: Welding Process
Operating principle Type of electrode: Electrode Color Usage Tungsten waxed grey Universal Tungsten pure green/ Aluminium and alumi- blue nium alloys Thoriated Iron-stainless steel- Fig. 8: Rod workpiece distance tungsten copper Step 4: Remove the burner and add material by touching the rod in the bath when the molten bath beco- Fill material mes liquid. -
Page 10: Description Of The Operating Elements
The desired welding current can be set steplessly with the welding current adjustment knob (5). 7.2 Scope of delivery Craft-Stick 141 and Craft-Stick 161 - 3 m Welding cable 16 mm² with electrode holder - 3 m Ground cable 16 mm² with ground terminal Fig. -
Page 11: Operating Conditions
Operation DANGER OF EXPLOSION! NOTE! - Do not weld in rooms where there is a risk of fire or The welding equipment may only be operated by per- explosion. Special regulations apply here! sons who have been instructed in the use of welding machines and are familiar with safety regulations. -
Page 12: Electrical Connection
Operation 8.2 Electrical connection The electrode holder - cable must be connected to the ¨+¨ connection - according to the instructions of the Check that the voltage indicated on the type plate corre- electrode manufacturer. sponds to the nominal voltage of your voltage mains. Step 1: Connect the cables to the particular terminal on The device may only be used at a connection with a 1- the unit and tighten clockwise (bayonet lock). -
Page 13: Tig Welding
Operation 8.4 TIG welding Step 6: Check the mains connection and connect the de- vice to the mains. (only models161P and 201P) Step 7: Turn on the power with the ON/OFF switch on the rear panel. The power indicator will light. ATTENTION Step 8: Select the LIFT TIG mode with the MMA/MMA VRD/LIFT TIG knob (Pos.1, Fig. -
Page 14: Troubleshooting
Troubleshooting Troubleshooting 9.1 Electrode welding Fault Possible cause Solution Air bubbles in the weld seam 1. Wet electrodes. 1. Dry the electrodes before use. (porosity). 2. Welding current too high. 2. Reduce the welding current. 3. Surfaces dirty with oil, paint etc. 3. -
Page 15: Tig Welding
Troubleshooting 9.2 TIG welding Fault Possible cause Solution The electrode melts when the arc is 1. Electrode connected to output "+". 1. Connect electrode to output "-". skipped. The weld bath is dirty. 1. Electrode contaminated by contact 1. New sharpen the electrode. with the weld bath or rod. -
Page 16: List Of Error Codes
Troubleshooting 9.3 List of error codes Type of Error Description Lamp display error code Thermal Overheating (thermal relay 1) yellow light (thermal protection) permanently on relay Overheating (thermal relay 2) yellow light (thermal protection) permanently on Overheating (thermal relay 3) yellow light (thermal protection) permanently on Overheating (thermal relay 4) yellow light (thermal protection) permanently on... -
Page 17: Care, Maintenance And Repair
Care, maintenance and repair 10 Care, maintenance and repair 10.2Maintenance and repair Maintenance and repair work may only be carried out by DANGER! qualified personnel. Risk of fatal electric shock! If the electrode inverter does not function properly, con- Contact with live components may result in fatal in- tact a specialist dealer or our customer service. -
Page 18: Disposal, Reusing Used Machines
The fan for the electrode inverter CRAFT-STICK 141 cal and electronic equipment. By contributing must be ordered. The fan is identified in the spare parts to the correct disposal of this product, you protect the en- drawing 1 with the number 4. -
Page 19: Spare Parts Drawings
The following spare parts drawings is intended to help identify the necessary spare parts. To order, please send a copy of the list of spare parts with the marked components to your dealer. Spare parts drawing Craft-Stick 141 Fig. 14: Spare parts drawing CRAFT-STICK 141 Spare parts drawing Craft-Stick 161 Fig. 15: Spare parts drawing CRAFT-STICK 161... - Page 20 Spare parts Spare parts drawing Craft-Stick 161 P and 201 P Fig. 16: Spare parts drawing CRAFT-STICK 161P and 201 P CRAFT-STICK | Version 1.12...
-
Page 21: Electrical Circuit Diagrams
Electrical circuit diagrams 13 Electrical circuit diagrams Electrical circuit diagram CRAFT-STICK 141 and CRAFT-STICK 161 Fig. 17: Electrical circuit diagram CRAFT-STICK 141 and CRAFT-STICK 161 CRAFT-STICK | Version 1.12... - Page 22 Electrical circuit diagrams Electrical circuit diagram CRAFT-STICK 161P Fig. 18: Electrical circuit diagram CRAFT-STICK 161P CRAFT-STICK | Version 1.12...
- Page 23 Electrical circuit diagrams Electrical circuit diagram CRAFT-STICK 201P Fig. 19: Electrical circuit diagram CRAFT-STICK 201P CRAFT-STICK | Version 1.12...
-
Page 24: Ec Declaration Of Conformity
Stürmer Maschinen GmbH Dr.-Robert-Pfleger-Straße 26 D-96103 Hallstadt Product group: Schweißkraft® Schweißtechnik Type of machine: Electrode Inverter Designation of the device *: CRAFT-STICK 141 Item number *: 1073141 CRAFT-STICK 161 1073161 CRAFT-STICK 161P 1073162 from serial number S.021RM.378-GS 31807082419 CRAFT-STICK 201P... -
Page 25: Notes
Notes 15 Notes CRAFT-STICK | Version 1.12... - Page 26 www.schweißkraft.de...
