Table of Contents

Advertisement

Quick Links

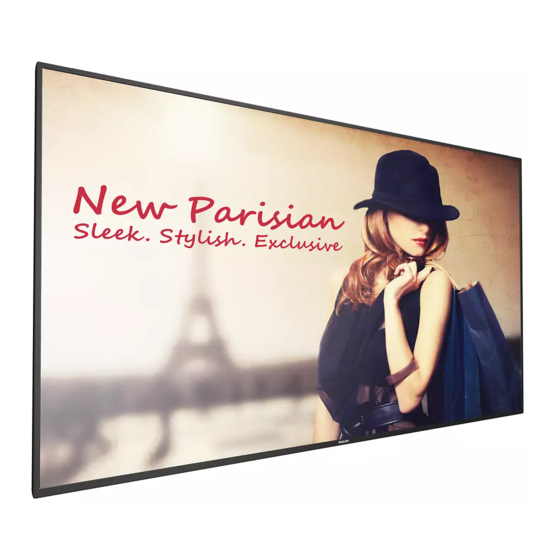

65BDL4050D
V1.00
www.philips.com/welcome
User Manual (English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 65BDL4050D/00 and is the answer not in the manual?

Questions and answers

Related Manuals for Philips 65BDL4050D/00

Summary of Contents for Philips 65BDL4050D/00

  • Page 1 65BDL4050D V1.00 www.philips.com/welcome User Manual (English)
  • Page 2 Read and follow these instructions when connecting and using your display: Operation: • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into ventilation holes or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • When positioning the display, make sure the power plug and outlet are easily accessible. • When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. • Do not subject the display to severe vibration or high impact conditions during operation. • Do not knock or drop the display during operation or transportation. Maintenance: • To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your display, grasp the frame to lift; do not lift the display by placing your hand or fingers on the LCD panel. • Unplug the display if you are not going to use it for an extensive period of time.
  • Page 3 65BDL4050D Read and follow these instructions when connecting and using your display: • Unplug the display if you are not going to use it for an extensive period of time. • Unplug the display if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids. • Consult a service technician if the display does not operate normally when you have followed the instructions in this manual. • The casing cover should be opened only by qualified service personnel. • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into the vents or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • Keep the display dry. To avoid electric shock, do not expose it to rain or excessive moisture. • When turning off the display by detaching the power cable or DC power cord, wait for 6 seconds before re-attaching the power cable or DC power cord for normal operation.
  • Page 4 65BDL4050D Europe – EU Declaration of Conformity This device complies with the essential requirements of the Radio Equipment Directive(2014/53/EU). The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the Radio Equipment Directive(2014/53/EU): - EN60950-1 Safety of Information Technology Equipment - EN 62311 Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz-300 GHz) - EN 300 328 ( For 802.11b/g/n ) Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive - EN 301 489-17 Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment - EN 301 489-1 Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements Taiwan: 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加 大功率或變更原設計之特性及功能。...
  • Page 5 65BDL4050D Canada: Industry Canada statement: This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-247 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement in Brazil: ANATEL RF STATEMENT Per Article 6 of Resolution 506, equipment of restricted radiation must carry the following statement in a visible location “Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário. ” ANATEL BODY SAR STATEMENT “Este produto atende aos requisitos técnicos aplicados, incluindo os limites de exposição da Taxa de Absorção Específica referente a campos elétricos, magnéticos e eletromagnéticos de radiofrequência, de acordo com as resoluções n°303/2002 e 533/2009.
  • Page 6 65BDL4050D Electric, Magnetic and Electromagnetic Fields (“EMF”) 1. We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals. 2. One of our leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products. 3. We are committed to develop, produce and market products that cause no adverse health effects. 4. We confirm that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today. 5. We play an active role in the development of international EMF and safety standards, enabling us to anticipate further developments in standardization for early integration in its products. Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED.
  • Page 7 65BDL4050D How to connect a plug The wires in the mains lead are coloured in accordance with the following code: BLUE - “NEUTRAL” (“N”) BROWN - “LIVE” (“L”) GREEN & YELLOW - “EARTH” (“E”) 1. The GREEN & YELLOW wire must be connected to the terminal in the plug which is marked with the letter “E” or by the Earth symbol or coloured GREEN or GREEN & YELLOW. 2. The BLUE wire must be connected to the terminal which is marked with the letter “N” or coloured BLACK. 3. The BROWN wire must be connected to the terminal which marked with the letter “L” or coloured RED. Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the three wires. North Europe (Nordic Countries) Information Placering/Ventilation VARNING: FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS. Placering/Ventilation ADVARSEL: SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA.
  • Page 8 65BDL4050D China RoHS 电子电气产品有害物质限制使用标识要求 (中国RoHS法规标识要求) 产品中有害物质的名称及含量。 有害物质 零部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 塑料外框 后壳 CCFL panel 电路板组件* 底座 电源线 其他线材 遥控器 *：电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。 本表格依据SJ/T 11364的规定编制。 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下. 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求. 上表中打...
  • Page 9 65BDL4050D 《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品 回收处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。 設備名稱： 液晶彩色顯示器，型號（型式）：65BDL4050D 限用物質及其化學符號 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) 塑料外框 ○ ○ ○ ○ ○ ○ 後殼 ○ ○ ○ ○ ○ ○ LCD panel － ○ ○ ○ ○ ○...
  • Page 10 65BDL4050D End-of-Life Disposal Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations. For additional information on recycling contact www.eia.org (Consumer Education Initiative) Waste Electrical and Electronic Equipment-WEEE Attention users in European Union private households This marking on the product or on its packaging illustrates that, under European Directive 2012/19/EU governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection.
  • Page 11 65BDL4050D According to EU directive 2006/66/EC, the battery can’t be disposed improperly. The battery shall be separated to collect by local service. Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada.

  • Page 12: Table Of Contents

    65BDL4050D Table Of Contents 4.2. Change Picture Format ............18 4.3. Android Launcher ..............18 4.4. Media Player introduction: ........... 19 Unpacking and Installation ............1 4.5. Browser manual .................21 1.1. Unpacking ..................1 4.6. PDF reader play .................23 1.2. Package Contents ................1 4.7. SmartCMS ..................26 1.3. Installation Notes .................1 4.8.
  • Page 13 65BDL4050D USB device compatibility ............50 Input Mode ................52 Pixel Defect Policy ..............53 9.1. Pixels and Sub-Pixels ...............53 9.2. Types of Pixel Defects + Dot Definition ....53 9.3. Bright Dot Defects ..............53 9.4. Dark Dot Defects..............54 9.5. Proximity of Pixel Defects ........... 54 9.6. Pixel Defect Tolerances ............54 9.7. MURA .....................54 10. Cleaning and Troubleshooting ..........55 10.1.

  • Page 14: Unpacking And Installation

    65BDL4050D Unpacking and Installation 1.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • Due to the size and weight of this display it is recommended for two people to move it. • After opening the carton, ensure that the contents are complete and in good condition. 1.2. Package Contents Please verify that you received the following items with your package content: • LCD display • Remote control with AAA batteries • Power cord (1.8 m) • RS232 cable (1.8 m) • RS232 daisy-chain cable (1.8 m) • Quick start guide Quick start guide • Logo guider & logo • Edge Alignment Kit-1: 2PCS Remote Control • Edge Alignment Kit-2: 1PCS and AAA Batteries...

  • Page 15: Installing And Removing Table Stands (Optional)

    65BDL4050D 1.4. Installing and Removing Table Stands (optional) Step 1- Put on the table Lay a protective sheet on the table, whick was wrapped arround the display when it was packaged, beneach the screen surface so as not to scratch the screen face. Step 2- Fix the tube to the display (by using M6xL41 screws) Please refer to the following drawing to know the position of screws. Step 3- Set up the stand (by using thumb) M6xL41 screws Thumb screws Longer portions face the front...

  • Page 16: Mounting On A Wall

    65BDL4050D 1.5. Mounting on a Wall To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with TUV-GS and/or UL1678 standard. Protective Sheet VESA Grid Table 1. Lay a protective sheet on a table, which was wrapped around the display when it was packaged, beneath the screen surface so as not to scratch the screen face. 2. Ensure you have all accessories for mounting this display (wall mount, ceiling mount, table stand, etc). 3. Follow the instructions that come with the base mounting kit. Failure to follow correct mounting procedures could result in damage to the equipment or injury to the user or installer. Product warranty does not cover damage caused by improper installation. 4.

  • Page 17: Mounting In Portrait Position

    65BDL4050D 1.6. Mounting in Portrait Position This display can be installed in portrait position. 1. Remove the table stand, if attached. 2. Rotate 90 degrees counter-clockwise . The “ ” logo should be on the RIGHT side when facing the display. 1.6.1. How to use the logo guider for portrait position 1. Put the guider on the lower-left corner of the front bezel of the display. Fold down both of its edges. 2. Peel off the protective film at the back of the “ ” logo sticker. Hold and press the guider with your left hand. Put the “ ” logo sticker with its adhesive side down into the logo hole with your right hand, and press to make it stick tightly onto the front bezel.

  • Page 18: Operating Instructions Of Edge Alignment Kit

    65BDL4050D 1.7. Operating Instructions of Edge Alignment Kit 1.7.1. Installing Edge Alignment Kit • Using “Edge Alignment Kit-1” on adjacent two displays. • Install the “Edge Alignment Kit-1” with 2 PCS of M4 screw. • Using “Edge Alignment Kit-2” on adjacent four displays. NOTE: W hen installing the edge alignment kit, please consult a professional technician for proper installation. We accept no liability for installations not performed by a professional technician.

  • Page 19: Parts And Functions

    65BDL4050D Parts and Functions 2.1. Control Panel [ ] button Remote control sensor and power status indicator Use this button to turn the display on or put the display to standby. • Receives command signals from the remote control. • Indicates the operating status of the display without OPS: [MUTE] button - Lights green when the display is turned on Switch the audio mute ON/OFF. - Lights red when the display is in standby mode [INPUT] button - Lights amber when the display enters APM mode Choose the input source. - When {SCHEDULE} is enabled, the light blinks green and red • Used as [ ] button in the On-Screen-Display menu.

  • Page 20: Input/Output Terminals

    65BDL4050D 2.2. Input/Output Terminals AC OUT PC LINE IN AC power supply to the AC IN jack of a media player. Audio input for VGA source (3.5mm stereo phone). AC IN DVI IN AC power input from the wall outlet. DVI-I video input. MAIN POWER SWITCH DVI OUT Switch the main power on / off. DVI or VGA video output. HDMI1 IN / HDMI2 IN DisplayPort IN / DisplayPort OUT HDMI video/audio input. DisplayPort video input / output. IR IN / IR OUT MICRO USB IR signal input / output for the loop-through function.

  • Page 21: Remote Control

    65BDL4050D 2.3. Remote Control [ ] POWER button Power ON/OFF. 2.3.1. General functions [PLAY] buttons Control playback of media files.(for Media Input only) Freeze feature Pasue: Freeze hot key for all inputs content. Play: Unfreeze hot key for all input content. ] SOURCE button Root Menu: Go to Video source OSD. ] HOME button Root Menu: Go to Main Menu OSD. Others: Exit OSD. ] LIST button No function.
  • Page 22 65BDL4050D [Number/ ID SET/ ENTER] button Enter text for network setting. Press to set the display ID. Refer to 2.3.2. ID Remote Control for more detail. ] FORMAT button Change Image Zoom Mode [Full][4:3][1:1][16:9][21:9][Custom]. ] BACK button Return to the previous menu page or exit from the previous function. ] INFO button Show Information OSD [ ] OPTIONS button No function. [ ] [ ] VOLUME button Adjust volume.

  • Page 23: Id Remote Control

    65BDL4050D 2.3.2. ID Remote Control Press [ID] button. The red LED blinks twice. 1. Press [ID SET] button for more than 1 second to enter the ID You can set the remote control ID when you want to use this remote Mode. The red LED lights up. control on one of several different displays. Press the [ID SET] button again will exit the ID Mode. The red LED lights off. Press the digit numbers [0] ~ [9] to select the display you want to control. For example: press [0] and [1] for display No.1, press [1] and [1] for display No.11. The numbers available are from [01] ~ [255]. 2. Not pressing any button within 10 seconds will exit the ID Mode. 3. If an error pressing of buttons other than the digits occured, wait 1 second after the red LED lights off and then lights up again, then press the correct digits again.

  • Page 24: Remote Control Buttons On Android

    Then if pressing again, playing will be started from the beginning of the file. 4. When playing PDF, video or music, press button to pause playing. 5.All meida or pdf files should be put at the folder, which is named “philips” with sub-folder, under the root directory of the specified storage (internal/USB/SD Card). All sub-folders (video/photo/music/ pdf) are named by media types and shouldn’t be changed. videos: {root dir of storage}/philips/video/ photos: {root dir of storage}/philips/photo/ music : {root dir of storage}/philips/music/ pdfs : {root dir of storage}/philips/pdf/ Note that the root directories of three storages are Internal storage: /sdcard...
  • Page 25 65BDL4050D NAVIGATION buttons ] INFO button 1. Navigate through menus and choose items. 1. Display information about current input signal. It is shown by Scalar. 2. In the content of the web page, these buttons are to control the 2. Media Player -> Compose -> edit or new add playlist -> choose scroll bar of the screen. Press or is for moving vertical scroll any media files -> press to show the information of the bar up or down. Press or is for moving horizontal chosen media file. scroll bar left or right. [ ] OPTIONS button 3.

  • Page 26: Inserting The Batteries In The Remote Control

    65BDL4050D 2.3.4. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Align the batteries according to the (+) and (–) indications inside the battery compartment. 3. Replace the cover. Caution: The incorrect use of batteries can result in leaks or bursting. Be sure to follow these instructions: • Place “AAA” batteries matching the (+) and (–) signs on each battery to the (+) and (–) signs of the battery compartment. • Do not mix battery types. • Do not combine new batteries with used ones. It causes shorter life or leakage of batteries. • Remove the dead batteries immediately to prevent them from liquid leaking in the battery compartment. Don’t touch exposed battery acid, as it can damage your skin. NOTE: I f you do not intend to use the remote control for a long period, remove the batteries.

  • Page 27: Connecting External Equipment

    65BDL4050D Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using HDMI video input DVD / VCR / VCD HDMI Out [HDMI IN] 3.2. Connecting a PC 3.2.1. Using DVI-I input VGA Out D-Sub 15 pin [DVI-I IN] Audio Out [VGA AUDIO IN] 3.2.2.

  • Page 28: Using Hdmi Input

    65BDL4050D 3.2.3. Using HDMI input HDMI Out [HDMI IN] 3.2.4. Using DisplayPort input DisplayPort Out 3.3. Connecting Audio Equipment 3.3.1. Connecting an external audio device Audio In Stereo Amplifier [AUDIO OUT]...

  • Page 29: Connecting Multiple Displays In A Daisy-Chain Configuration

    65BDL4050D 3.4. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a video wall. NOTE: Maximum 25 displays (5x5) can be used in a DVI daisy-chain configuration. For VGA daisy-chain, Maximum 9 displays can be used. 3.4.1. Display control connection Connect the [RS232 OUT] connector of DISPLAY 1 to the [RS232 IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [RS-232C] [RS-232C IN] [RS-232C OUT] [RS-232C IN] 3.4.2. Digital video connection Connect the [DVI OUT / DVI-I OUT] connector of DISPLAY 1 to the [DVI IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [DVI]...

  • Page 30: Analog Video Connection

    65BDL4050D 3.4.3. Analog video connection Connect the [DVI OUT /DVI-I OUT] connector of DISPLAY 1 to the [DVI-I IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [DVI-I] [DVI-I IN] [DVI/DVI-I OUT] [DVI-I IN] 3.5. IR connection External IR Receiver DISPLAY 1 DISPLAY 2 [IR IN] [IR OUT] [IR IN] NOTE: 1. This display’s remote control sensor will stop working if the [IR IN] is connected. 2. IR loop through connection can support up to 9 displays. 3.6.

  • Page 31: Operation

    65BDL4050D Operation • Admin mode will show four icons: “Settings”, “Apps”, “Network” and “Help”. NOTE: T he control button described in this section is mainly on the • When you leave admin mode, system will return to last remote control unless specified otherwise. source. 4.1. Watch the Connected Video Source 1)Home page of admin mode, this page has four items: “Settings”, See page 14 for external equipments connection.

  • Page 32: Media Player Introduction

    1. Home page of Media Player, this page has three items: “Play”, 4. If an empty playlist is chosen, the app will guide you to select the “Compose” and “Settings”. media source. Play : select playlist to play. All media files should be placed in /philips/ of root directory. Compose: edit playlist. For example, Settings: setting play properties. - videos in /root/philips/video/...
  • Page 33 65BDL4050D 5. You could edit or delete a non-empty playlist, just choose the 8. Press info key after you choose desired file, you will get the detail desired playlist which is with pencil icon. information. 9. Press play key after you choose desired file, you will plays the media 6. Once you start to edit a playlist, you will see below screen. file directly. Source - files in storage. Playlist – files in playlist. There are 4 icons which map to the keys of remote controller. Option key – launch slide bar Play key – play media file. Info key – show media info. Ok key – select/unselect file. 6-1 In the slide bar, it helps you to do the following: - select all : select all storage files. - delete all : delete all playlist files. - add/remove : update playlist from source.

  • Page 34: Browser Manual

    65BDL4050D 11. Select “Settings” on home page, this page has three parts, “Repeat Mode”, “Slideshow Effect” and “Effect Duration”. Repeat Mode : play mode. Slideshow Effect : photo slideshow effect. Effect Duration : photo effect duration. 12. Media Hotkey Play : Playback file. Pause: Pause file. Fast forward: forward 10 second. Rewind: back 10 second. Stop: Stop file and return to start.If the gif file, it like the pause. 4.5.
  • Page 35 65BDL4050D • Click export • Choose file contains urls • Choose storage • Dialog shows path file will be saved and file’s name. • Import file and url will show on list Press “save” button then urls on list will be saved. • File format for import Format should be like below with file extension “txt” 5. Press OK then url records will be saved. 4.2 Export:...

  • Page 36: Pdf Reader Play

    • Set OSD menu => Confiuration1 => Boot on source => Input be BROWER Play List be 1. Then PD will show web page with 1st Url in Browser app. 7.2 Schedule Set OSD menu => Advanced option => Schedule => On time1, Off time2, Input be BROWSER, any day you want of week, and Play List. 4. If an empty playlist is chosen, the app will guide you to select the media source. Finally check the right box. Then PD will show web page with Url in Browser app at time1 and All media files should be placed in /philips/ of root directory. For finish at time2. example, - pdfs in /root/philips/pdf/...
  • Page 37 65BDL4050D 7. if you choose “Sort” in the slide bar, you can change the order of files one by one. 5. You could edit or delete a non-empty playlist, just choose the desired playlist which is with pencil icon. 8. Select “Settings” on home page, this page has two parts, “Repeat Mode” and “Effect Duration”. Repeat Mode : play mode. Effect Duration : photo effect duration. 6. Once you start to edit a playlist, you will see below screen. Source - files in storage. Playlist – files in playlist. There are 4 icons which map to the keys of remote controller. Media Hotkey: Option key – launch slide bar Play key – play media file. Play : Playback file. Info key – show media info.
  • Page 38 65BDL4050D - Press OK key, the bottom of the page will show the page number, if page number over total page number, it will not change page and show current page number at the bottom of the page.

  • Page 39: Smartcms

    The options in the settings, including IP, account, and PIN Code, would be disabled. 5) Content: cms content can be stored in the internal storage, SD card, and USB storage. By default, the target is internal. a. If server is connected, cms data would be downloaded from SmartCMS server. b. If server is disconnected, cms data would be accessed from local storage. 6) Local cms content (*.cms file) a. If content is set to be internal storage, *.cms should be stored in the FTP root folder(high priority) or /sdcard/philips(low priority). b. If content is set to be USB storage or SD card, *.cms should be stored in the root folder of external storage.

  • Page 40: Custom App

    65BDL4050D 4.8. Custom app If no customer installed apk, the list will be blank. The list will be blank and “Save””Forget” will be gray and useless. User can set up the application for Customer Source Note: (1) Only display User Installed app. (2) Will not show up system pre-install app. 4.8.1. OSD Menu operation: RCU: Source -> Custom If set up customer APK, PD will open customer app when switch source to Customer mode. If no set up customer APK, PD will show Black screen when switch source to Customer mode. If customer installed apk,user can select customer installed apk in list • Case 1: Not set up Custom App case. Customer app will show up and focus on first item automatically. 4.8.2. Function Introduction After set up, the setting screen display the app name. Save Select the App, click the Save will perform the function of storage.

  • Page 41: Signage Display

    65BDL4050D signage display F. Gateway Address (2) Mac Address Note: 5.1. Setting WiFi will be disable automatically if Ethernet turn on and connect to Setting main items: network. (1) Wi-Fi (2) Ethernet (3) Signage Display (4) System Tools (5) Storage (6) Apps (7) Date & time (8) Developer options (9) About 5.3.1. DHCP DHCP mode: (1) Cannot modify IP Address, Netmask, DNS Address and Gateway. (2) (If connect successfully, it will display current network configuration. 5.2. Wi-Fi Via Enable/Disable to control Wi-Fi On/OFF. After Enable, the screen will list all available WiFi AP.

  • Page 42: Signage Display

    65BDL4050D 5.4. Signage Display (2) Will pop-up a window for user to select USB and SD card. No priority Divide into 3 groups: General Settings / Server Settings / Source Settings (1) General Settings A. Signage Display Name B. Boot Logo C. Screenshot (2) Server Settings i s s u e . A. Email Notification B. FTP C. Remote Control (3) Source Settings A. Media Player B.
  • Page 43 65BDL4050D List will be blank. Save and Forget button will be gray and 3. Screenshot Via Enable/Disable to control screenshot On/Off. After Enable, user can set screenshot timeslot and save path. Note: Time slot of deletion and screenshot: (1) Will delete picture at initial time 0 sec. u s e l e s (2) Will screeshot at first 40 sec. Case 2 The users do not settle customized boot log, PD find bootanimation. zip file under SD or USB. The screen will show bootanimation.zip and select the first file automatically. 1) Interval Set up interval timeframe. 30 mins or 60 mins. Case 3 The user settle customized boot logo, The screen will show /data/ local/bootanimation.zip 2) Start Time Set up screenshot start time.

  • Page 44: Server Settings

    Via Enable/Disable to control Email On/Off.After Enable, user can set up Set screenshot repeat cycle. User can choose screenshot time frame. Email notification configuration. (Multiple selection) 1) SMTP 5)Save to Email Set up screenshot save path. Internal storage, SD card or USB Set SMTP configuration.User can set Gmail account or other mail storage. account.User can select other mail account and set up SMTP server, Note: Security type and port itme picture storage path: Note: (1) In root of internal storage/usb storage/sd card, PD will create Password input limitation folder automatically. (1) Length: 6-20 characters (2) the picture will save to philips/Screenshot/. (2) Format: no limit (3) Do not use the port: 5000 6)Purge Screenshots Set up purge timeframe. One day or One week.
  • Page 45 65BDL4050D To test Gmail account receive/send function. 2. FTP Via Enable/Disable to control FTP On/Off. After set up, PD can share FTP files. 1) Account Set up FTP account Note: Input limitation (1) Length: 4-20 characters (2) Format: I. English a-z and A-Z II. Number 0-9 Gmail safety setting If it can not send manager after setting Gmail, please login your Gmail test account,then access to website: https://www.google.com/settings/security/lesssecureapps. Confirm the “Access for less secure apps”, please set to Turn on 2) Password Set up FTP password. Note: Input limitation 2)Manager Email (1) Length: 6-20 characters Email (2) Format: Set up Receiver mail account...
  • Page 46 65BDL4050D Note: Input limitation (1) Length: Max 5 characters (2) Range: 1-65535 (3) Format: I. Number 0-9 (4) Do not use the port: 5000 After password input: 3. Remote Control Via Enable/Disable to Control Remote Control On/Off User can input Server address. If server does not registered, it will ask user for PIN code. Bind status: (1) Will show network is disconnected if not yet connects to network. Set up completed screen: Bind status: 3)Storage Path (2) Will show Server is disconnected if network connected but Set up FTP share path.:/storage/emulated/legacy remote control server disconnected. Note: Input limitation (1) Cannot save if the path is invalid 4) Port Set up FTP port number.Default: 2121...

  • Page 47: Source Settings

    65BDL4050D 5.4.3. Source Settings 1. Media Player Can Edit Media Player play list and effect settings. Bind status: (3) Will show Server is unbinded if Remote control server feedback unbinded status. (1) Open Media Player Player List edit page. Bind status: (4) Will show server is binded if Sever binded successfully. (2) Open Media Player slideshow effect edit page. Bind status: 2. Browser (5)Will show Error PIN code if input incorrect PIN code. Can edit Bookmark configuration. (1) Open Browser setting page.

  • Page 48: System Tools

    65BDL4050D 3. SmartCMS (1) Open PDF Player Player List edit page. 1) Server (2) Open PDF Player effect edit page. Set up SmartCMS Server address. 2) Account Set up SmartCMS account. Note: Input format limitation:ASCII only (refer to 11.2 ASCII Table) 3) PIN Code Set up SmartCMS PIN Code 4) Version Can select Ver. 2 and Ver. 3 • Ver. 2: Using 2.0/2.2 update advertising agreement. • Ver. 3: Using 3.0/3.1 update advertising agreement. 5. Custom app In Ver. 2 cases, do not use Server/Account/PIN Code values, so the three gray and cannot be used.

  • Page 49: Clear Storage

    5.5.1. Clear Storage 5.5.3. Import & Export The purpose is to clear all data in Philips folders. The function of Import & Export PD settins. Note: Divided into 4 mode: (1) Saved file name: settings.db (1) Clear all Philips folde (2) Will save to Philips folder in storage. (2) Only clear Philips folder under Internal storage. 1. Export (3) Only clear Philips folder under USB storage. Will export settings.db to Philips folder under USB or SD card. (4) Only clear Philips folder under SD card. Note: If no Philips folder exists in USB or SD card, it will be created automatically. Pop-up the window to display all folders which can be clear. 2. Import Import settings.db from Philips folder under USB or SD card. 5.5.2. Factory Reset Factory Reset can recover to Factory default settings. 5.6. Storage Press OK to execute Reset function automatically . Display current PD Android storage information.

  • Page 50: Apps

    65BDL4050D SD CARD and USB STORAGE : 5.9. Developer options Need to insert SD card or USB, the information will show up total space and available of SD card or USB storage. Android developer options. 5.7. Apps 5.10. About Display applications information. Main info in About: (1) System updates (2) Android version (3) Kernel version (4) Build number 5.8. Date & time Via Scalar OSD menu to control Auto Time On/Off. When Salar OSD menu turn off Auto time, user can set up Time Zone manually. Note: 5.10.1. System updates Add new NTP server to display current serverIP . Will automatically search update.zip in USB or SD card.

  • Page 51: Supplementary

    65BDL4050D After select update.zip file, PD will restart and start to update. 5.11. Supplementary 5.11.1. Rotation Via Scalar OSD menu to operate Rotation: Home -> Configuration2 -> Rotation -> OSD rotation 1. Landscape After set up Landscape mode, the setting screen will divide into 2 part. Select Left item, right side will display the sub menu. 2. Portrait After set up Portrait mode, the setting screen only display one layer.

  • Page 52: Ascii Table

    65BDL4050D 5.11.2. ASCII Table...

  • Page 53: Osd Menu

    65BDL4050D OSD Menu 6.2. OSD Menu Overview An overall view of the On-Screen Display (OSD) structure is shown 6.2.1. Picture menu below. You can use it as a reference for further adjusting your display. 6.1. Navigating the OSD Menu Brightness Picture Contrast Sharpness 6.1.1. Navigating the OSD menu using the Screen Black level remote control Tint Audio FORMAT SOURCE Color Noise reduction Medium Gamma selection...

  • Page 54: Screen Menu

    65BDL4050D Color control H position The color levels of red, green, and blue are adjusted by the color bars. Control Horizontal Image position within the display area of the LCD. R: Red gain, G: Green gain, B: Blue gain. Press + button to move screen to right. Press - button to move screen to left. Smart picture V position PQ setting PC mode: {Standard} / {Highbright} / {sRGB}. Control Vertical Image position within the display area of the LCD. Video mode: {Standard} / {Highbright} / {Cinema}. Press + button to move screen to up. Press - button to move screen to down. Smart Contrast Clock Auto detect black data and white data on content and set suitable backlight.

  • Page 55: Audio Menu

    65BDL4050D Zoom Audio reset Action Expands the horizontal and vertical sizes of the Picture image simultaneously. Screen H zoom Expands the horizontal size of the image only. Audio V zoom Expands the vertical size of the image only. Con guration 1 H position Moves the horizontal position of the image left Balance or right. Adjust to emphasize left or right audio output balance. Treble V position Moves the vertical position of the image up or Adjust to increase or decrease higher-pitched sounds. down. Bass Adjust to increase or decrease lower-pitched sounds. Auto adjust Volume Press “Set” to detect and adjust H position, V position, Clock, Phase Adjust to increase or decrease the audio output level.

  • Page 56: Pip Menu

    65BDL4050D 6.2.4. PIP menu • The PIP function is available only for certain signal source combinations as shown in the table below. Medoa PDF Sub mode HDMI1 HDMI2 DVI DisplayPort VGA Browser SmartCMS Custom Picture Player Reader PIP size Small HDMI1 PIP position Bottom-Right HDMI2 Screen PIP change Action PIP source DisplayPort Audio PIP audio Main Medoa PIP reset...

  • Page 57: Configuration2 Menu

    DDC/CI Information OSD 10 Sec. Choose to turn on or off the DDC/CI communication function. Logo Select {On} for normal use. Monitor ID Action Heat status Action Light sensor(require Philips accessory CRD41 External Monitor information Action Sensor Box) DP version DP 1.1 Choose to turn on or off backlight adjustment according to environment brightness. Choose from : {Off} / { On} Human sensor(require Philips accessory CRD41 External...
  • Page 58 65BDL4050D ** If Logo set to USER. Monitor information User logo does NOT support rotation function. Monitor ID Model name 65BDL4050D Set the ID number for controlling the display via the RS232C connection. CNCA123456789 Serial no Each display must have a unique ID number when multiple sets of this Operation hours 46H45M SW Version V0.300 display are connected. Monitor ID number range is between 1 to 255. The option are: {Monitor group} / {Tiling matrix} / {Auto ID} DP version Monitor Id DisplayPort support mode. The options are: Monitor Id • {DP 1.1} (Default) : DP 1.1 single stream(clone mode) Monitor group • {DP 1.2 SST}: DP 1.2 Single stream(clone mode) Tiling matrix...

  • Page 59: Advanced Option Menu

    65BDL4050D 6.2.7. Advanced option menu Tiling With this function you can create a single large-screen matrix (video wall) that consists of up to 225 sets of this display (up to 15-sets on the Input resolution Auto Con guration 2 vertical and 15-sets on the horizontal sides). This function requires a IR control Action daisy-chain connection. Keyboard control Action Advanced option Tiling Action Tiling O timer H monitors Date and time Action...
  • Page 60 65BDL4050D Frame compensation - Yes Date and time Auto Sync Year 2015 Month Hour Minute Daylight saving time Current date time 2015 . 01 . 01 22 : 41 : 00 Press [OK] to set clock 1. Press [OK] button to enter the submenu. 2. Press [ ] or [ ] button to toggle between {Year}, {Month}, {Day}, {Hour}, {Minute}, and {Daylight saving time}.
  • Page 61 65BDL4050D NOTE: W e recommend you to set up current date and time in the HDMI with One Wire {Date and time} menu before using this function. CEC control. 1. Press [OK] or [ ] button to enter the submenu. • {Off} - Disable CEC.(Default) • {On} - Enable CEC. Schedule Auto signal detection Choose to let the display detect and display available signal sources Today 2015 . 01 . 04 04 : 14 : 01 automatically. • {Off} - Once a signal is connected, it can only be selected manually.
  • Page 62 65BDL4050D Mode 3 Mode 1(default) DC OFF: DC OFF: Backlight Off only Power Off Power Save: Power Save: Backlight Ooff only Power Off Mode 4 Mode 2 DC OFF: DC OFF: Backlight Off only Power Off Power Save: Power Save: No signal(Backlight On) Power Saving Following table is the action for Android board with different power mode. DC off/on: Press power button by RC Power mode in OSD Mode 1/2 Mode 3/4 DC off shutdown 1. The current source APK(such as MediaPlayer, Browser, PDF, SmartCMS or Custom) will be closed. 2.

  • Page 63: Usb Device Compatibility

    65BDL4050D USB device compatibility USB Multimedia Codec Formats Video Decode Type Video Codec Container Decode Encode Channel Remark Supported Image Size:48x48pixels to 1920x1088pixels Maximum Frame Rate:30fps MPEG1/2 MPEG1/2 File Format: DAT, MPG, VOB, TS Maximum Bit Rate:80Mbps Audio Codec: MP2, MP3 Supported Image Size:48x48pixels to 1920x1088pixels Maximum Frame Rate:30fps Maximum Bit Rate:38.4Mbps File Format: AVI, MKV, MP4, MOV, MPEG-4 MPEG4 Audio Codec: MP2, MP3, AAC,PCM,...
  • Page 64 65BDL4050D Image Decode Type Image Codec Photo Decode Encode Channel Remark JPEG JFIF file format 1.02 File Format: JPG, JPEG Decode: Resolution 48X48 to 8176X8176 (1) Not Support Non-interleaved Scan (2) Software support SRGB JPEG (3) Software support Adobe RGB JPEG File Format: BMP MaximumSupported Image Size:4096x4096 pixels File Format: GIF Resolution No Restriction File Format: PNG Resolution No Restriction NOTES: • Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table above. • Video content with a Bit rate or Frame rate larger than the rate specified in the table above can cause choppy video during playback.

  • Page 65: Input Mode

    65BDL4050D Input Mode VGA Resolution: Active Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Stand for Mode Resolution H Pixels V Lines 60 Hz 25.175 MHz 480 72 Hz 31.5 MHz Video Graphic Array 75 Hz 31.5 MHz WVGA 400 70 Hz 33.75 MHz 16:9 Wide Video Graphic Array 60 Hz 40 MHz SVGA 600 Super VGA 75 Hz 49.5 MHz 60 Hz 65 MHz 1024 768 Extended Graphic Array 75 Hz 78.75 MHz WXGA...

  • Page 66: Pixel Defect Policy

    We strive to deliver the highest quality products and use some of the industry’s most advanced manufacturing processes whilst practicing stringent quality control. However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. This notice explains the different types of pixel defects and defines the acceptable defect level for the LCD screen. In order to qualify for repair under warranty, the number of pixel defects must exceed a certain level as shown in the reference table. If the LCD screen is within specification a warranty exchange / claim back will be refused. Additionally, because some types or combinations of pixel defects are more noticeable than others, Philips sets even higher quality standards for those. 9.1. Pixels and Sub-Pixels A pixel, or picture element, is composed of three sub-pixels in the primary colors of red, green and subpixel blue.

  • Page 67: Dark Dot Defects

    Dark Dot Defects Black dot defects appear as pixels or sub-pixels that are always dark or “off ”. These are the examples of black dot defects: One dark dot Two adjacent dark dots = 1 pair of dark dots Two dark dots, specifications defines the minimum distance between dark dots 9.5. Proximity of Pixel Defects Because pixel and sub-pixels defects of the same type that are nearby one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. In the table below you can find specifications about: • Allowed amount of adjacent dark dots = (adjacent dark dots =1 pair of dark dots) • Minimum distance between dark dots • Total no. of all defective dots 9.6. Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub- pixel defects exceeding the tolerances listed in the following table.

  • Page 68: Cleaning And Troubleshooting

    65BDL4050D Cleaning and Troubleshooting 10.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. Placing any object near the top of the display could also result in heat related damage to the object as well as the display itself. • Be sure to disconnect all cables before moving the display. Moving the display with its cables attached may damage the cables and thus cause fire or electric shock. • Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of cleaning or maintenance procedure. Front Panel Cleaning Instructions • The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth. • If the surface becomes dirty, soak a soft, lint-free cloth in a mild detergent solution.

  • Page 69: Troubleshooting

    65BDL4050D 10.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of the 2. Make sure the power switch is switched on. display is not switched on. 3. Connect a signal connection to the display. 3. The selected input has no connection. 4. The display is in standby mode. Interference displayed on the display or audible Caused by surrounding electrical appliances or Move the display to another location to see is the noise is heard...

  • Page 70: Technical Specifications

    65BDL4050D Technical Specifications Display: Item Specifications Screen Size (Active Area) 1428.4 (H)x 803.5 (V) [mm] (64.5’’ diagonal) Aspect Ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.744 (H) x 0.744 (V) [mm] Displayable colors 10 bits(D),1.06 Billion colors Brightness (typical) 450 cd/m (typ) Contrast ratio (typical) 1300:1 Viewing angle 178 degrees In/Out Terminals: Item Specifications Speaker Output Internal Speakers 10W (L) + 10W (R) [RMS]/8Ω 1 Way 1 Speaker System 82 dB / W / M / 160 Hz ~ 13 KHz Audio Output Phone Jack x 1 0.5V [rms] (Normal) / 2 Channel (L+R) Audio Input 3.5 mm Stereo x 1 0.5V [rms] (Normal) / 2 Channel (L+R) RS232 2.5mm Phone jack x 2...
  • Page 71 65BDL4050D General: Item Specifications Internal memory 16GB eMMC (12GB usable) Power Supply AC 100 - 240V, 50 - 60Hz Power Consumption (Max) 185 W Power Consumption (typ.) 103 W Power Consumption (Standby & Off) <0.5W (RS232 in active) Dimensions (Without Stand) [W x H x D] 1452.3 x 833.4 x 63.5 mm Weight (Without Stand) 29.8 Kg Gross Weight (Without Stand) 38.5 Kg Environmental Condition: Item Specifications Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 5 ~ 95% RH (No condensation) Altitude Operational 0 ~ 3,000 m Storage / Shipment 0 ~ 9,000 m Internal Speaker: Item...
  • Page 72 2016 © Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice.
