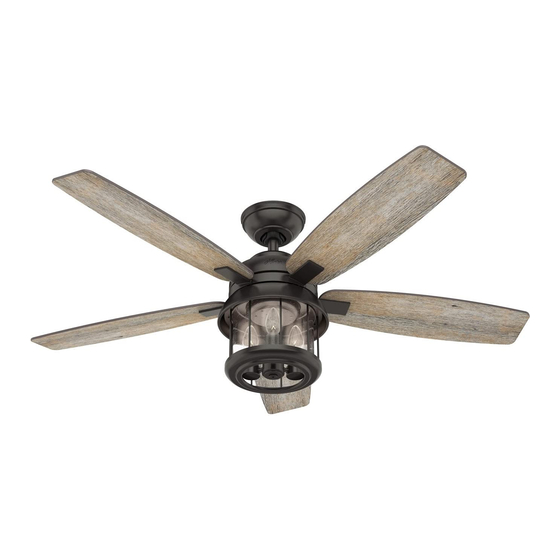

- Page 1 Coral Bay Installation Manual Model: 51469 Weathered Copper 59420 Noble Bronze Fan weight ±2 lbs: 23.4 lbs (10.6 kg) ©2021 Hunter Fan Co. PG3593 031021...
- Page 2 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 Here is what comes in your box: 1886 Hunter Pro Tip: We recommend that you pull everything out of the box and lay it out. We have grouped the drawn components below with the hardware you’ll need for those Do not discard the hardware bags or mix parts from different bags.
-
Page 4: Choosing The Right Installation Location
A little more information on Angled Mounting: For optimum performance and appearance, a longer downrod should be used with your Hunter ceiling fan when installing on high or angled ceiling. If your ceiling is angled greater than 34° you will also need an Angled Mounting Kit. -
Page 5: Installing The Ceiling Bracket
You have two options for installation. Pick which one works best for your location. Remove any existing Hunter Pro Tip: bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box. The machine screws are the ones that came with your outlet box. -
Page 6: Hanging The Fan
1886 Hanging the Fan DO NOT PICK THE FAN UP BY THE CANOPY OR WIRES. Place the downrod ball into the slot in the ceiling bracket. Progress Check: Your fan should look like this. Note: Fan style may vary. Ceiling Bracket Downrod Hanging Fan Wiring... -
Page 7: Wiring The Fan
Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches your wall switch setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualifi ed electrician. Hunter Pro Tip: Here is how to connect the wires: Push the bare metal ends of the wires together and slide a wire nut over them. -
Page 8: Installing The Canopy
1886 Installing the Canopy Insert the two canopy screws found in the hardware bag. Canopy Screw Lift the canopy into place so that the screw holes are aligned. Installing the Blades: Put the blade washers, found in the hardware bag, onto the blade screws, found in the hardware bag. -
Page 9: Installing The Light Fixture
1886 Installing the Light Fixture 1 of 6 2 of 6 Light Kit Screw Light Kit Screw Insert the third screw, Feed the wire plug through the found in the hardware center hole of the upper switch bag, into place and then Partially install two light kit housing, then wrap keyhole tighten all three screws. -
Page 10: Preparing The Remote
1886 Preparing the Remote The remote control is Remote Function Guide Key Press Function already paired for use. + Quick Press Light On/Off For your convenience, a remote function card is + Long Press Light Dimming packed in with your remote. + Quick Press Fan On/Off To access the battery... -
Page 11: Troubleshooting
• Check to see if any of the blades are cracked. If so, replace all of the blades. Hunter Pro Tip: Cleaning the Fan Use soft brushes or cloths to prevent scratching. Cleaning products may damage the finishes. -
Page 12: Limited Lifetime Warranty
Hunter instructions, accidental damage caused by the fan owner or related parties, Please do not ship your fan or any fan parts to Hunter. Delivery will be refused. modifications to the fan, improper or incorrectly performed maintenance or repair,...
