VENT - FREE GAS
WALL HEATER
OWNER'S OPERATION AND
INSTALLATION MANUAL
BLUE FLAME MODELS
B10TNB - B, B10TPB - B
B20TNB - BB, B20TPB - BB
B30TNB - BB, B30TPB - BB
PFS
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable va-
pors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Questions, problems, missing parts? Before returning to your retailer, call
our customer service department at 1-866-762-4050, 8:00 am - 4:30 pm CST,
®
US
Monday through Friday or email service@bluegrassliving.com

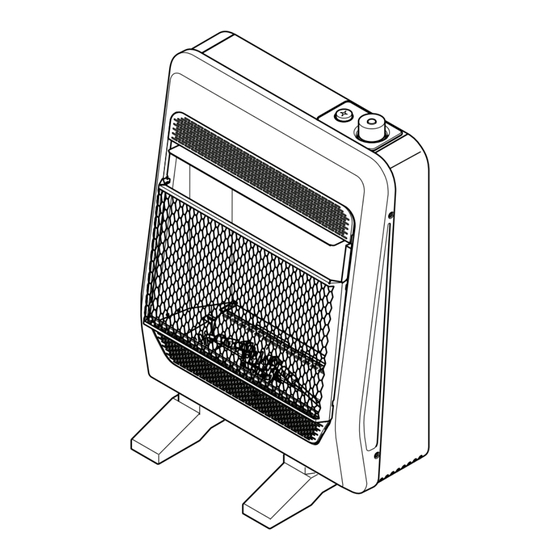

B20TNB-BB
Model Shown
Advertisement
Table of Contents
Related Manuals for Bluegrass Living B30TNB
Summary of Contents for Bluegrass Living B30TNB
- Page 1 B20TNB-BB Model Shown VENT - FREE GAS WALL HEATER OWNER’S OPERATION AND INSTALLATION MANUAL BLUE FLAME MODELS B10TNB - B, B10TPB - B B20TNB - BB, B20TPB - BB B30TNB - BB, B30TPB - BB ® WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety ............3 Operation ..........16 Qualified Installing Agency ......4 Electrical Connection ....... 18 Specifications ..........5 Electrical Wiring ........18 Product Features ........6 Inspecting Burners........19 Local Codes..........6 Care And Maintenance ......20 Preparing For Installation ...... -
Page 3: Safety
SAFETY This appliance is only for use WARNING: Do not attempt to with the type of gas indicated on access or change the setting of the rating plate. This appliance the fuel selection means. is not convertible for use with Access to and adjustment of other gases. -
Page 4: Qualified Installing Agency
SAFETY 3. This heater needs fresh air ventilation to WARNING: Make sure grill run properly. This heater has an Oxygen guard is in place before running Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the heater heater. if not enough fresh air is available. See Air for Combustion and Ventilation, pages 7 WARNING: Due to high tem- through 8. -
Page 5: Specifications
Min 11" Heater Dimensions (HxWxD) 21.2" x 15.79" x 6.85" Carton Dimensions (HxWxD) 22.83" x 17.95" x 8.23" Heater Weight 14.3 lbs Shipping Weight 17.2 lbs MODEL B20TNB-BB B20TPB-BB Ignition Piezo Piezo Gas Type Natural Propane/LP Maximum Input Rating 20,000 BTU/Hr... -
Page 6: Product Features
Figure 1. If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement parts. Burner Grill Heater Cabinet Front Panel Figure 1 - Vent-Free Gas Heater B20TNB-BB Shown with Base Feet www.bluegrassliving.com 200455-01A... -
Page 7: Unpacking
UNPACKING 1. Remove heater from carton. 3. Check heater for any shipping damage. If heater is damaged, promptly inform dealer 2. Remove all protective packaging applied where you bought heater. to heater for shipping WATER VAPOR: A BY - PRODUCT OF UNVENTED ROOM HEATERS Water vapor is a by-product of gas combus- The following steps will help ensure that water... - Page 8 AIR FOR COMBUSTION AND VENTILATION VENTILATION AIR Ventilation Air From Inside Building Ventilation Air From Outdoors Provide extra fresh air by using ventilation This fresh air would come from an adjoining grills or ducts. You must provide two perma- unconfined space. When ventilating to an nent openings: one within 12"...
-
Page 9: Installation
INSTALLATION IMPORTANT: Vent-free heaters add moisture NOTICE: This heater is intended to the air. Although this is beneficial, installing for use as supplemental heat. heater in rooms without enough ventilation air Use this heater along with your may cause mildew to form too much moisture. primary heating system. - Page 10 INSTALLATION INSTALLING THERMOSTAT SENSING BULB ( OPTIONAL ) 1. Pull out the sensing bulb from the two clips located in the shipping position. There is no need to take out the two bulb clips. 2. Take out the bulb clip from the hardware package and insert it into the square hole.
- Page 11 INSTALLATION Attaching to Wall Stud Method 2. Mark screw locations on wall (see Fig- For attaching mounting bracket to wall studs: ure 7). Note: Mark only last hole on each end of mounting bracket. Insert mounting 1. Drill holes at marked locations using 9/64" screws through these holes only.
- Page 12 INSTALLATION Placing Heater On Mounting Bracket 1. Locate two horizontal slots on back panel of heater (see Figure 10). 2. Place heater onto mounting bracket. Slide Front View horizontal slots onto stand-out tabs on mounting bracket. Front View Horizontal Slots Wall Heater Stand-...
- Page 13 INSTALLATION CONNECTING TO GAS SUPPLY WARNING: A qualified ser- CAUTION: For propane/LP vice technician must connect gas, Never connect heater directly to the gas supply. This heater heater to gas supply. Follow all requires an external regulator local codes. (not supplied). Install the external WARNING: This appliance regulator between the heater and requires a 3/8"...
- Page 14 INSTALLATION Apply pipe joint sealant lightly to male threads. as shown in Figure 13. Pointing the vent down This will prevent excess sealant from going protects it from freezing rain or sleet. into pipe. Excess sealant in pipe could result Install sediment trap in supply line as shown in clogged heater valves.
- Page 15 INSTALLATION CHECKING GAS CONNECTIONS WARNING: Test all gas piping WARNING: Never use an open and connections for leaks after flame to check for a leak. Apply a installing or servicing. Correct mixture of liquid soap and water all leaks at once. to all joints.
-
Page 16: Operation
INSTALLATION PRESSURE TESTING HEATER GAS CONNECTIONS 1. Open equipment shutoff valve (see Fig- 5. Correct all leaks at once. ure 14, page 15). 6. Light heater (see Lighting Instructions 2. Open gas supply tank valve. below). Check all other internal joints for leaks. - Page 17 OPERATION 7. Keep control knob pressed in for 30 Note: The first time that the heater is oper- seconds after lighting pilot. After 30 ated after connecting the gas supply,the seconds, release control knob. If control control knob should be pressed for about knob does not pop up when released, thirty (30) seconds.
-
Page 18: Electrical Connection
ELECTRICAL CONNECTION FOR BLOWER KIT Do not use this heater if any part of it has been under water. Immediately call a qualified ser- Cover of vice technician to inspect the Grounded Grounding Pin heater and replace any part of Outlet Box the electrical system which has been under water. -
Page 19: Inspecting Burners
INSPECTING BURNERS IMPORTANT: Owner’s should check pilot flame pattern and burner flame pattern often. Incorrect flame patterns indicate the need for cleaning (see Care and Maintenance, page 20) or service. WARNING: Only a qualified service person should service and repair heater. This includes maintenance requiring replacement or alteration of components. -
Page 20: Care And Maintenance
CARE AND MAINTENANCE WARNING: Turn off heater and let cool before servicing. CAUTION: You must keep control areas, burner, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service techni- cian. -
Page 21: Troubleshooting
TROUBLESHOOTING WARNING: If you smell gas: • Shut off gas supply. • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor’s phone. Fol- low the gas supplier’s instructions. - Page 22 TROUBLESHOOTING Problem Possible Cause Corrective Action ODS/pilot lights but flame 1. Control knob is not fully 1. Press in control knob fully. goes out when control pressed in. knob is released. 2. Control knob is not pressed 2. After ODS/pilot lights, keep in long enough.
- Page 23 TROUBLESHOOTING Problem Possible Cause Corrective Action Heater produces a whis- 1. Turning control knob to high 1. Turn control knob to low (1) tling noise when burner (5) position when burner is position and let warm up for is lit. cold.
-
Page 24: Technical Service
TECHNICAL SERVICE You may have further questions about installation, operation, or troubleshooting. If so, contact Bluegrass Living, Inc. at 1-866-762-4050. When calling, please have your model and serial numbers of your heater ready. SERVICE HINTS When Gas Pressure Is Too Low •... -
Page 25: Parts
PARTS MODELS B10TNB - B, B10TPB - B www.bluegrassliving.com 200455-01A... - Page 26 PARTS MODELS B10TNB - B, B10TPB - B This list contains replaceable parts for your heater. When ordering replacement parts, follow the instructions listed under Replacement Parts on page 24 of this manual. ITEM B10TNB-B B10TPB-B DESCRIPTION Back Body Panel 161132-01 161132-01 Mounting Bracket...
- Page 27 PARTS MODELS B20TNB - BB, B20TPB - BB B30TNB - BB, B30TPB - BB 20,000 BTU/Hr Model Shown www.bluegrassliving.com 200455-01A...
- Page 28 B20TNB - BB, B20TPB - BB B30TNB - BB, B30TPB - BB This list contains replaceable parts for your heater. When ordering replacement parts, follow the instructions listed under Replacement Parts on page 24 of this manual. ITEM B20TNB-BB B20TPB-BB B30TNB-BB B30TPB-BB...
-
Page 29: Replacement Parts
REPLACEMENT PARTS Note: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty. PARTS UNDER WARRANTY Contact authorized dealers of this product. • Model and serial number of your heater If they can’t supply original replacement •... - Page 30 NOTES ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ www.bluegrassliving.com 200455-01A...
- Page 31 NOTES ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ www.bluegrassliving.com 200455-01A...
-
Page 32: Warranty
Bluegrass Living makes no other warranties regarding this product. Bluegrass Living’s liability is limited to the purchase price of the product and Bluegrass Living shall not be liable for any other damages whatsoever under any circumstances including direct, indirect, incidental, or consequential damages.
