HD MEMORY CARD CAMERA RECORDER
GY-HM890U/GY-HM890E
GY-HM890CHU/GY-HM890CHE
GY-HM890RE/GY-HM890RCHE
GY-HM850U/GY-HM850E
GY-HM850CHU/GY-HM850CHE
GY-HM850RE/GY-HM850RCHE
INSTRUCTIONS
.

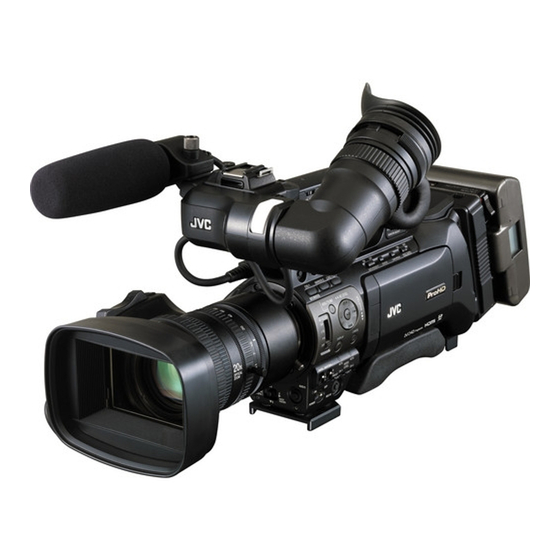

In this illustration, the supplied viewfinder, microphone, and lens are attached to the GY-HM890U/GY-
HM890E/GY-HM890RE.
The lens is not supplied for GY-HM890CHU/GY-HM890CHE/GY-HM890RCHE and GY-HM850CHU/
GY-HM850CHE/GY-HM850RCHE.
The specifications and appearance of this product are subject to changes for further improvement
without prior notice.
Please check the latest version of the INSTRUCTIONS from the following Mobile User Guide. You can
also download the PDF from the Mobile User Guide.
Mobile User Guide
When you are outside, you can refer to the instructions from your Android phone or iPhone.
http://manual3.jvckenwood.com/pro/mobile/global/
You can view the Mobile User Guide using the browser on your Android phone or iPhone.
For Customer Use:
Enter below the Serial No. which is located
on the body.
Retain this information for future reference.
Model No.
GY-HM890U / GY-HM890CHU
GY-HM850U / GY-HM850CHU
Serial No.
IM 1.04
Please read the following before getting started:
Thank you for purchasing this product.
Before operating this unit, please read the
instructions carefully to ensure the best
possible performance.
In this manual, each model number is
described without the last letter (U/E) which
means the shipping destination.
(U: for USA and Canada, E: for Europe)
Only "U" models (GY-HM890U/GY-HM890CHU/
GY-HM850U/GY-HM850CHU) have been
evaluated by UL.
LST1584-001B
