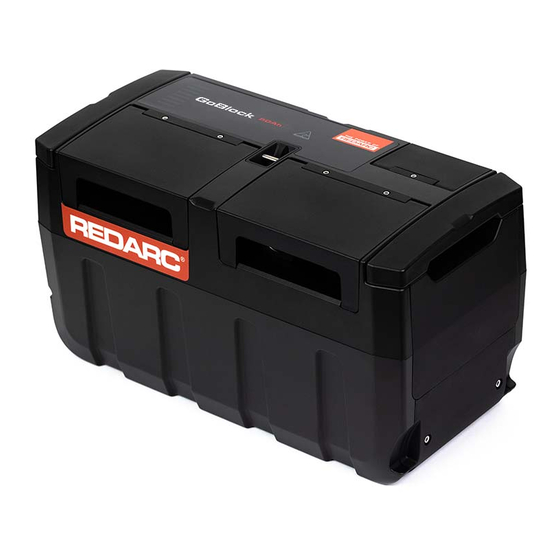

Redarc GoBlock PPS12100 Quick Start Manual

Portable dual battery system
Hide thumbs
Table of Contents

Advertisement

Quick Links

MODELS:
ƒ PPS12050
ƒ PPS12100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GoBlock PPS12100 and is the answer not in the manual?

Questions and answers

Related Manuals for Redarc GoBlock PPS12100

Summary of Contents for Redarc GoBlock PPS12100

  • Page 1 MODELS: ƒ PPS12050 ƒ PPS12100...
  • Page 2 Not all portable power is created equal. Only one system was designed, engineered, built and tested to handle the most unforgiving conditions on earth — the Australian Outback. The GoBlock is a fully contained Portable ® Dual Battery System that also functions as a Portable Power Station, and can be used without any installation.
  • Page 3 Solar Panels via the PowerDock ����������������19 GoBlock Shipping Advice ��������������������������41 Checking the Product Serial Number ���������41 CHARGING VEHICLE BATTERIES ����������� Recovery Mode �����������������������������������������20 Green Power Priority ���������������������������������22 REDARC RedVision ® ������������������������ Pair to the GoBlock Via Bluetooth ��������������23 Controlling the GoBlock Remotely �������������25...

  • Page 4: Warnings And Safety Information

    ƒ Do NOT alter or disassemble the Go-Block under any circumstances. All faulty units must be returned to REDARC for repair. Incorrect handling or reassembly may result in a risk of electric shock or fire and will void the unit warranty.

  • Page 5: Safety Message Conventions

    ƒ Keep the GoBlock away from major heat sources, high voltage, and avoid exposed sunlight for long periods of time. ƒ REDARC recommends only using genuine Anderson™ connectors for GoBlock installations. Counterfeit or generic connectors may result in a poor quality connection.

  • Page 6: Quick Start

    The app will automatically detect if there is a new firmware version available — simply follow the in-app prompts to install the new firmware. REDARC recommends disconnecting from all inputs and outputs before commencing a firmware update. GET THE APP…...
  • Page 7 CONTENTS Charge for 24 hours The GoBlock is supplied partially charged. To get the best out of your GoBlock, fully charging it before the first-use is recommended. This will allow the internal cells to equalise and ensure optimum life-cycle and performance of your GoBlock. Connect the GoBlock to a powered wall outlet using the 7.5 A Mains Trickle-Charger.
  • Page 8 CONTENTS GoBlock PARTS 1. Trickle-Charge Input 7. PowerDock Anchor Point Input socket for charging the GoBlock battery from The PowerDock connects securely onto the Anchor either the supplied 7.5 A Mains Trickle-Charger Point when the GoBlock is docked and locked. (page 13) or the 7.5 A Accessory Socket 8.
  • Page 9 CONTENTS 12. Auxiliary Anderson™ Input (50 A) 16. PowerDock Interface Connection interface for Auxiliary input including solar Connection interface for the REDARC PowerDock (not panels (page 17) and Battery Recovery Leads/Clips included, available for separate purchase). (not included) for the Recovery function (page 21) 17.
  • Page 10 CONTENTS GoBlock CONTROLS AND LEDS Provided that the GoBlock has adequate charge, the Battery Level LEDs will display the GoBlock's charge level for 30 seconds by doing one of the following: ƒ Press the Control Button. ƒ Plug devices/chargers into the GoBlock input/output sockets. ƒ...

  • Page 11: Low Battery

    CONTENTS Battery Level LEDs The primary function of the Battery Level LEDs is to display the battery level during both charging and discharging, however it also displays the following information: ƒ Alert Codes to notify the user in the event of an Alert (page 32). ƒ...
  • Page 12 CONTENTS TURN GoBlock ON AND OFF GoBlock features an automatic Sleep Mode to save power, and will wake up automatically when a load or input is detected. GoBlock can also be turned Off via the Control Button. This disables Bluetooth and disconnects all ®...
  • Page 13 CONTENTS CHARGE THE GoBlock GoBlock contains a high-quality lithium iron phosphate battery (LiFePO ) battery that is capable of a rapid 50 A recharge rate. The GoBlock is supplied partially charged, however charging the battery fully before its first use is recommended.
  • Page 14 CONTENTS Charge From a Vehicle Accessory Socket Plug the supplied 7.5 A Accessory Socket Trickle-Charger into a vehicle accessory socket in your vehicle, then plug the charger into the Trickle-Charge Input on the GoBlock. The GoBlock will charge at a maximum rate of 7.5 A, however this may be less depending on the voltage of the vehicle.

  • Page 15: Cable Sizing

    Anderson™ Input on the back of the GoBlock. Use a suitable adaptor if the power output connector on you vehicle is not an Anderson™ connector. Visit the REDARC website for detailed instructions on how to run a direct wire from your start battery to charge via the Auxiliary Anderson Input.
  • Page 16 CONTENTS Charge From the PowerDock NOTE: PowerDock is sold separately. Depending on the PowerDock installation configuration, GoBlock will automatically charge simultaneously via the PowerDock from the following sources: ƒ Fixed solar panels (e.g. vehicle-mounted solar panels) (1) ƒ Vehicle power (2) The charging sources will be automatically selected based on the priority defined by the Green Power Priority feature (page 22).
  • Page 17 CONTENTS Charge From Solar Panels/Blankets CAUTION The maximum total output voltage of solar panels connected to the GoBlock must not exceed 32 V. Excessive voltage (> 32 V) from solar panels may damage the GoBlock internal electronics and could cause the unit to become hot. If overheating or smoke is detected, immediately disconnect the solar panels.

  • Page 18: Solar Panels

    CONTENTS SOLAR PANELS The GoBlock can be connected to Solar Panels in two ways: ƒ By directly connecting a solar panel to the Auxiliary Anderson™ Input on the GoBlock. See 'Charge From Solar Panels/Blankets' on page 17 for safety information. ƒ When docked in the PowerDock (sold separately) that has solar panels hard-wired to it. GoBlock utilises intelligent Green Power Priority technology (page 22) in order to collect maximum...
  • Page 19 (i.e. a suitable diameter) to support the maximum short-circuit current rating of your solar panel. REDARC Recommends the following REDARC solar products for charging your GoBlock. Visit the REDARC website to view the full range of REDARC solar products. Solar Panels ƒ...

  • Page 20: Recovery Mode

    CONTENTS CHARGING VEHICLE BATTERIES The GoBlock can charge a vehicle battery via the Recovery Modes. Recovery Mode In the event of a flat vehicle start battery, the GoBlock Recovery feature enables you to sacrifice some GoBlock charge and safely return it to the flat vehicle start battery. This process can be initiated when the GoBlock is docked in the PowerDock, or by connecting the GoBlock Auxiliary Anderson™...
  • Page 21 CONTENTS RECOVERY — VIA THE AUXILIARY ANDERSON™ INPUT Connecting the GoBlock to a flat vehicle start battery using REDARC GoBlock Battery Recovery Leads (not supplied). NOTICE ƒ Only connect the Recovery Leads to the Auxiliary Anderson™ Input on the back of the GoBlock.

  • Page 22: Green Power Priority

    CONTENTS 5. When Recovery is complete, the top yellow and all four green Battery Level LEDs will flash and an audio tune will play. This will continue for approximately three minutes, or until a vehicle input is detected. The top yellow LED and the The top yellow LED and all green green Battery Level LEDs Battery Level LEDs are flashing —...
  • Page 23 App to connect the ® GoBlock to your smartphone via Bluetooth . Scan the QR ® code or search for ‘REDARC’ on your device’s app store. The RedVision App and its interactions with the ® GoBlock have not been tested on all smartphone models.
  • Page 24 SUBSEQUENT CONNECTIONS Once a smartphone has been paired with a GoBlock, it will automatically reconnect when the RedVision App is opened and the GoBlock is selected from the list of available REDARC products. ® PAIRING GoBlock TO MULTIPLE SMARTPHONES The GoBlock can be paired to multiple smartphones, however it can only be monitored/controlled by one smartphone at a time.
  • Page 25 ® which product is connected to your smartphone by tapping on the Menu icon on the top left of the app. All available paired REDARC products will be listed — select the GoBlock you wish to control. The RedVision App Home Screen ®...

  • Page 26: Carry Handles

    CONTENTS TRANSPORTING THE GoBlock Carry Handles The GoBlock's extendable carry handles allow it to be carried comfortably and safely. CAUTION ƒ Lifting a heavy object can cause muscle strain or back injury. Use lifting aids if needed, and proper lifting techniques when moving the GoBlock. ƒ...
  • Page 27 CONTENTS Safe Vehicle Transportation WARNING ƒ An unsecured GoBlock can become dangerous in an accident or sudden stop. The GoBlock must be adequately restrained for safe transportation in a vehicle. Choose appropriate load restraint equipment, and ensure it’s in good working order before every use. ƒ...
  • Page 28 CONTENTS RESTRAIN THE GoBlock USING TIE-DOWN STRAPS Additional anchor points may need to be installed in your vehicle if the standard vehicle anchor points are inadequately rated. To restrain the GoBlock with tie-down straps, use the following: ƒ 2 × Tie-down straps with a minimum load capacity of 200 kg (440 lb) each. Nylon webbing straps are recommended —...

  • Page 29: Care And Maintenance

    CONTENTS CARE AND MAINTENANCE Care and Maintenance Advice ƒ Carefully inspect the unit before each trip to ensure it is in good condition. Do not use the GoBlock if you suspect that it has been damaged in any way. ƒ Always close the socket dust covers when input/output sockets are not in use. ƒ...

  • Page 30: Long Term Storage

    CONTENTS Long-Term Storage STORAGE ISOLATION SWITCH The GoBlock has a Storage Isolation Switch that disconnects the internal battery from the unit electronics. Note that it does NOT turn off the GoBlock inputs/outputs if there is another power source connected. When to use the Storage Isolation Switch: ƒ...
  • Page 31 Many common household appliances draw higher power than the PPS/Inverter setup can supply. Recommended Inverter Setup: ƒ REDARC 350 W Pure Sine Wave Inverter ƒ PPSKIT-001 GoBlock to Inverter Cable Connecting the GoBlock to an inverter.

  • Page 32: Troubleshooting

    TROUBLESHOOTING The GoBlock features sophisticated diagnostics to notify the user when the GoBlock is unable to function correctly. Before contacting an authorised REDARC Distributor, try to resolve the cause of the Alert or Fault by following the recommended actions. Faults In rare cases, a Fault may occur indicating a fundamental problem with the GoBlock.
  • Page 33 CONTENTS ALERT CODE IDENTIFICATION AND RESOLUTION In the event of an Alert, the Control Button LED will flash red and an Alert Code will be displayed by the Battery Level LEDs. Recovery — Internal Fault Charge-back fault — something went wrong during Recovery. Fault resolution: 1.
  • Page 34 CONTENTS Input Over Voltage The Alternator or Trickle-Charge Input is too high voltage, or the total voltage rating of connected solar panels is too high. 1. Check the voltage rating of auxiliary products and make sure that they do not exceed the limits of each input.

  • Page 35: General Troubleshooting

    If you experience any of the listed problems, follow the recommended actions in order until the problem is resolved — all steps may not be needed to resolve the problem. If the problem persists after completing all of the recommended actions, contact REDARC directly, or your local REDARC Distributor.
  • Page 36 CONTENTS GoBlock will not charge 1. Check that the Storage Isolation Switch is turned to 'ON' (page 30). 2. Check that the GoBlock is not already completely charged. 3. Check that there is not an Over/Under Temperature Alert. See 'Alert Codes' (page 32).

  • Page 37: Technical Specifications

    CONTENTS TECHNICAL SPECIFICATIONS Battery Specifications PPS12050 PPS12100 Battery capacity 50 Ah (640 Wh) 100 Ah (1280 Wh) Nominal Voltage 12.0 – 15.8 V Battery chemistry LiFePO (lithium iron phosphate) Self discharge rate Isolated: 1 to 3% per month 1 to 3% per month Sleep: ≈ 2 months ≈ 4 months Off: ≈ 5 months...

  • Page 38: Electrical Specifications

    CONTENTS Electrical Specifications INPUTS Trickle-Charge Input (Barrel Jack) Maximum Current 7.5 A Nominal Voltage 13.5 V Efficiency > 90% Protection Overvoltage at 15.8 V PowerDock Vehicle Input Maximum Current 50 A Operating Voltage Range 9 to 32 V Turn On/Off Threshold 12.7 – 15.8 V (in 12 V installation, ignition not connected) 12.0 –...

  • Page 39: Compliance And Standards

    CONTENTS OUTPUTS Total Output Current Limit 50 A Current rating Nominal voltage Protection (nominal/typical) Accessory Socket 10 A 13.5 V Merit Socket 15 A 13.5 V All outputs are overcurrent protected with automatic Fridge Socket 15 A 13.5 V resettable electronic fuses USB Type A Outputs (× 4) 2.4 A (each) 5 V Anderson...

  • Page 40: Limited Warranty

    CONTENTS WARRANTY LIMITED WARRANTY For full warranty terms and conditions, visit the Warranty page of the REDARC website. Refer to the web address and contact details applicable to your region. Australia, New Zealand & Europe North America www.redarc.com.au/warranty www.redarcelectronics.com/warranty REDARC Electronics Pty Ltd...

  • Page 41: Additional Information

    CONTENTS ADDITIONAL INFORMATION Safe Disposal of the Product LiFePO batteries must be disposed of in accordance with local laws. Never dispose of a LiFePO household or general waste. WARNING ƒ Do not incinerate or dispose of in fire. ƒ LiFePO batteries must not be transported by air under any circumstances.
  • Page 42 Copyright © 2021 REDARC Electronics Pty Ltd. All rights reserved. REDARC®, GoBlock®, PowerDock™, RedVision® and THE POWER OF REDARC® are trademarks of REDARC Electronics Pty Ltd. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by REDARC is under license.
  • Page 44 CONTACT Australia 1300 REDARC (1300-733-272) New Zealand +64 9 222 1024 UK & Europe +44 (0)20 3930 8109 redarc.com.au +1 (704) 247-5150 Canada +1 (604) 260-5512 Mexico +52 (558) 526-2898 redarcelectronics.com INST70−1...
