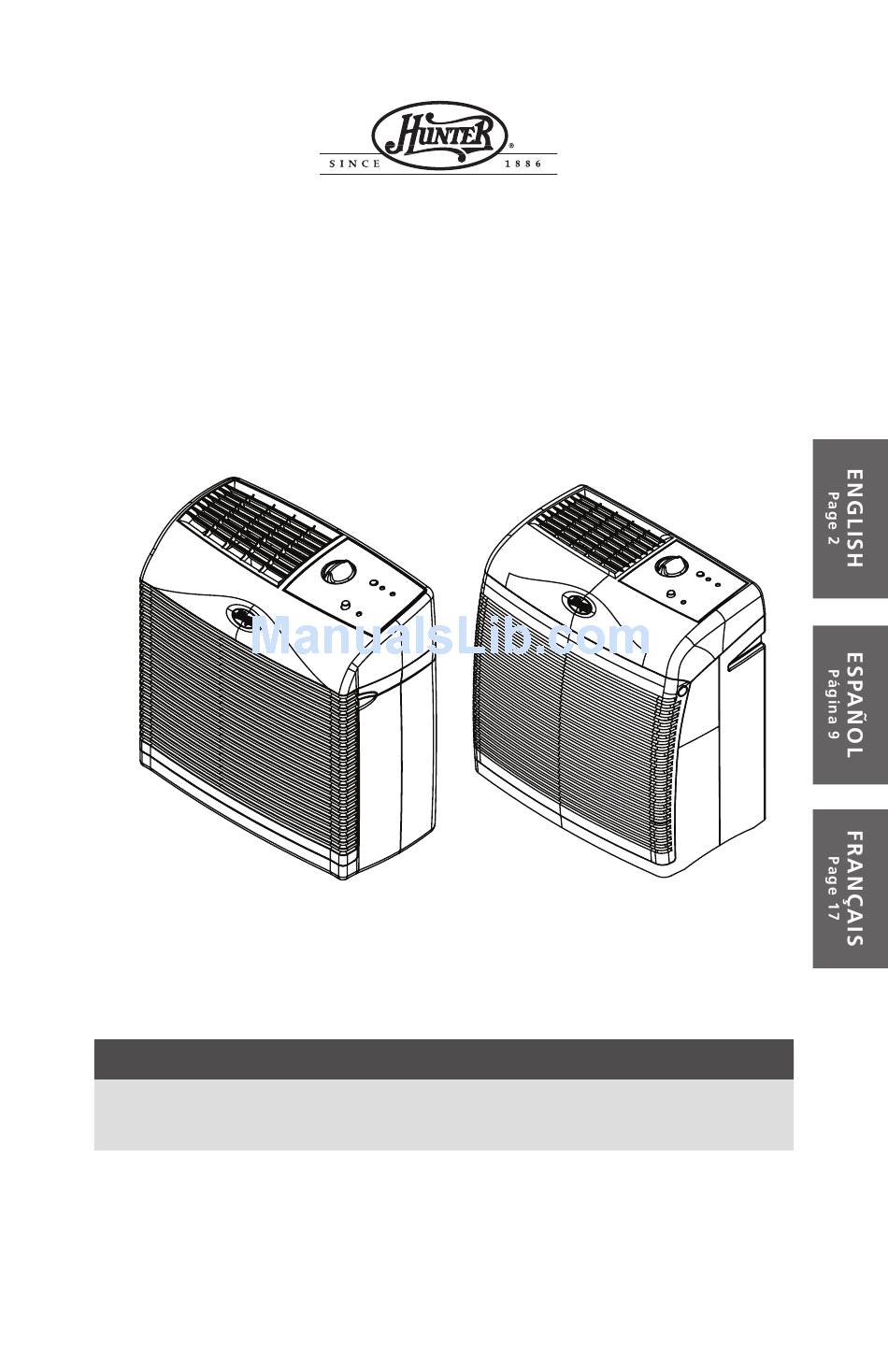

- Page 1 HEPAtech ® Air Purification System Model 30057A Model 30067A, 30124A, 30124A Air Purifier Model HEPAtech Filter Pre-Filters ® 30057A 30928 30901 30067A, 30124A 30928 30901 www.hunterfan.com 41557-01 01/31/2007 ©2007 Hunter Fan Company...
-
Page 2: Important Safety Instructions
7. DO NOT immerse the Air Purifier in water as permanent damage will occur. Refer to and follow the CLEANING AND FILTER REPLACEMENT in- structions. Introduction Thank you for purchasing the HEPAtech ® Air Purification System from Hunter Fan Company. You have purchased our latest development in portable Air Purification Systems. This system has been developed to improve the quality of the air you breathe. Our HEPAtech ® Air Purification System out performs other air purification systems by quickly and effectively removing dust, smoke, and pollen particles as small as .1 microns in size. Room air is pulled in through the front grill and cleaned across the HEPAtech ® filter. Clean air is then released out the top grill in order to avoid stirring up settled particles. Using the Ionizer Using the ionizer improves the quality of air in the room. Negative ions are released into the air and positively charged dust, smoke, and pollen particles are attracted to the negative ions. These particles settle out of the air and can be vacuumed up dur- ing normal cleaning. These particles are also more easily captured by the HEPAtech ® filter as they pass through the HEPAtech Air Purification System. To ensure the best ® air circulation in the room, we recommend that you place your air purifier six inches away from any walls. 41557-01 01/31/2007 ©2007 Hunter Fan Company... -
Page 3: Setting Up Your Air Purifier
® HEPAtech ® Filter Filter Pre-Filter Pre-Filter Front Front Grill Grill Tabs for Buttons for opening the opening the front grill front grill Figure 2 - Model 30067A, 30124A Figure 1 - Model 30057A Hook Tape Figure 3 Grill Vents Hook Tape ©2007 Hunter Fan Company 01/31/2007... -
Page 4: Operating Your Air Purifier
® filter should be changed. The exact life of the pre-filter and filter will depend upon the environment. If necessary, the filters should be changed more frequently. To reset the pre-filter or filter timers when one indicator (or both) is lit: 1 . Change the filter and/or pre-filter as described in the Maintenance section of the manual. 2 . To reset the counter to zero hours and turn off the indicator, simply press and hold the filter reset key for three seconds. If both the pre-filter and filter indicators are lit, the reset key will first turn off the pre-filter indicator. Then, you must release the reset key and then press and hold the filter reset key again for three seconds to turn off the filter indicator. To reset the pre-filter or filter timers before the indicators are lit: In some environments, you may want to change the pre-filter or filter more frequently than indicated by the filter indicators. This procedure allows you to reset the pre-filter or filter counter before the indicators are lit. 1 . Change the filter and/or pre-filter as described in the Maintenance section of the manual. 2 . Now, you must choose which timer you want to reset. Press and hold the filter reset key (approximately three seconds) until the pre-filter indicator flashes. Press the reset key again to alternate between the two indicators. The timer that will be reset is designated by the flashing indicator. 3 . Once you have the correct indicator flashing, press and hold the reset key for three seconds to reset that timer to zero hours. The indicator will stop flashing when it has been reset. If needed, repeat these steps to reset the other timer. 41557-01 01/31/2007 ©2007 Hunter Fan Company... -
Page 5: Replacement Filters
5 . Remove the new filter from its wrapping and look at the directional arrows printed on the side of the filter. Install the filter with arrows pointing towards the unit. Press the filter firmly into the air purifier. To avoid damaging the filter media, you should press on the frame of the filter only. 6 . If you notice a decrease in air output or an increase in noise, the HEPAtech ® Filter may be clogged. Replace it with a new HEPAtech ® Filter. Replacement Filters To obtain a replacement filter for your Air Purifier, call 1-800-4Hunter for your nearest retailer or Hunter Customer Service at (US) 1-888-830-1326, (Canada) 1-888-855-8300. Please be prepared to tell the operator the model number of your Air Purifier and the model number of the filter you need to re- place. Visit our website at www.hunterfan.com. Hunter Air Purifier Model No.: 30057A 30067A, 30124A Pre-Filter Replacement Model No.: 30901 30901 30901 HEPAtech Filter Replacement Model No.: 30928 30928 30928 ® ©2007 Hunter Fan Company 01/31/2007... -
Page 6: Other Home Comfort Products From Hunter
99.97% – .1 Microns As the air is pulled into the purifier, the activated carbon pre-filter absorbs odors and catches large particles. Then, the air travels through the HEPAtech ® filter where the smaller particles are collected. Then, the ionizer releases negative ions into the air that attract positively charged dust, smoke, and pollen particles. Finally, the clean, purified air is released back into the room. Other Home Comfort Products from Hunter Hunter Original The Care-Free Programmable ® Humidifier Thermostat ™ To learn more about Hunter Fan Company products, please see our Web page at: www.hunterfan.com 41557-01 01/31/2007 ©2007 Hunter Fan Company... -
Page 7: Year Limited Warranty
® ing the first five (5) years from the date of installation to you due to a defect in material or workmanship, we will provide a replacement Air Purifier free of charge. Installation is deemed to occur at the date if purchase. If the Air Purifier cord, ionizer, or front grill fails any time within one (1) year after instal- lation due to a defect in material or workmanship, we will replace or, at our option, repair the unit free of charge at our nearest service centre or at our Service Department in Mem- phis, Tennessee. You will be responsible for all parts and labour costs after this one-year period. USE OF A NON-HUNTER FILTER WILL INVALIDATE THIS WARRANTY. IF THE ORIGINAL RESIDENTIAL USER OR CONSUMER PURCHASER CEASES TO OWN THE AIR PURIFIER, THIS WARRANTY AND ANY IMPLIED WARRANTY WHICH THEN REMAINS IN EFFECT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PAR- TICULAR PURPOSE, ARE VOIDED. NO WARRANTY, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS MADE IN RESPECT TO THE FILTER MATERIAL OR CARBON FILTER. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. THE DURATION OF ANY IMPLIED WARRANTY INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IN RESPECT TO THE MOTOR IS EXPRESSLY LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE. This warranty is voided if the air purifier is not purchased and used in the USA or Canada. This warranty excludes and does not cover defects, malfunctions or failures of the Air Purifier which were caused by repairs by persons not authorized by us, use of parts or ac- cessories not authorized by us, mishandling, modifications, or damage to the Air Purifier while in your possession, or unreasonable use, including failure to provide reasonable and necessary maintenance. This warranty does not cover Air Purifiers used in commercial ap- plications. There are no express or implied warranties as to commercial purchasers or users. To obtain service, contact the nearest Hunter authorized service centre or the Hunter Fan Company Service Department, 2500 Frisco Avenue, Memphis, Tennessee 38114, 888-830- 1326 (U.S.) or 888-855-8300 (Canada). For the name of our nearest authorized Hunter Fan Company Service Centre, write to the Hunter Fan Company at the preceding address. (Continued) ©2007 Hunter Fan Company 01/31/2007... - Page 8 You will be responsible for insurance and freight or other transportation to our factory service center. We will return the Air Purifier freight prepaid. The Air Purifier should be properly packaged to avoid damage in transit since we will not be responsible for any such damage. Proof of purchase is required when requesting warranty service. The purchaser must present sales receipt or other document that establishes proof of purchase. IN NO EVENT SHALL HUNTER FAN COMPANY BE LIABLE FOR DIRECT, IN- DIRECT, SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE AIR PURIFIER. YOUR SOLE REMEDY WILL BE REPAIR OR REPLACEMENT AS PROVIDED ABOVE. SOME AMERICAN STATES AND CANADIAN PROVINCES DO NOT ALLOW: • LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS; • THE EXCLUSION OR LIMITATION OF DIRECT, INDIRECT SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES; SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE. Hunter Fan Company 2500 Frisco Avenue Memphis, Tennessee 38114 ® Printed in China & Taiwan 41557-01 01/31/2007 ©2007 Hunter Fan Company...
