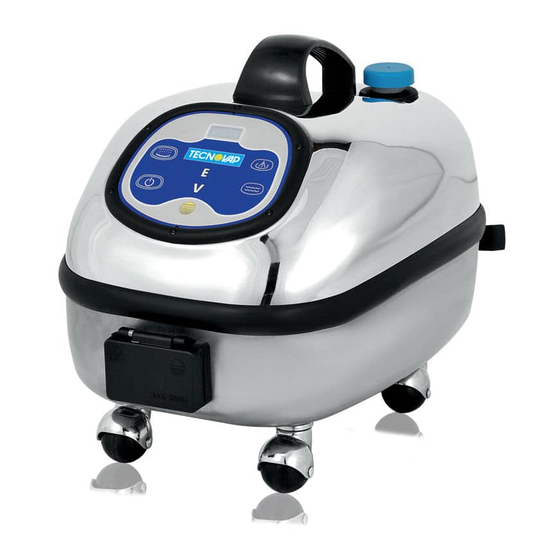

- Page 1 EVO 304 24-7 / EVO BLU 24/7 EVO 304 24/7 – EVO BLU 24/7 USER INSTRUCTION Models with detergent This manual is available in digital format on request; kindly contact Info@tecnovap.it Pag. 1 29/16...
- Page 2 EVO 304 24-7 / EVO BLU 24/7 Interpretation of the symbols placed on the unit BEFORE USING THE STEAM GENERATOR, READ AND FOLLOW THIS INSTRUCTION MANUAL. IT IS RECOMMENDED TO KEEP THIS INSTRUCTION MANUAL TO CONSULT IT LATER OR TO GIVE IT TO THE FOLLOWING OWNERS.
- Page 3 EVO 304 24-7 / EVO BLU 24/7 ENVIRONMENT PROTECTION ALL PACKAGING ARE RECYCLABLE, PACKINGS DO NOT HAVE TO BE THROWN IN THE DOMESTIC WASTE BUT THEY HAVE TO BE DELIVERED TO THE CENTERS SPECIALIZED FOR THE DISPOSING OF THE WASTE. DEVICES USED ANYMORE...
-
Page 4: Table Of Contents
EVO 304 24-7 / EVO BLU 24/7 SUMMARY SUMMARY SAFETY REGULATIONS TECHNICAL CHARACTERISTICS PREFACE NOMENCLATURE TECHNICAL DRAWINGS OPERATING INSTRUCTIONS MAINTENANCE BEFORE REFERRING TO THE TECHNICAL SERVICE DECLARATION OF CONFORMITY SAFETY REGULATIONS It is recommended not to open or remove any machine part for any reason; in case the unit should present an abnormal functioning or a failure, disconnect the power plug and contact an authorized service center or the dealer where the product has been purchased. - Page 5 EVO 304 24-7 / EVO BLU 24/7 MUD DRAIN FROM THE BOILER The machine is equipped with a warning system “mud drain”. The writing CALC will appear on the display to indicate that it is necessary to proceed with the boiler cleaning (see chapter 8 maintenance).
-
Page 6: Technical Characteristics
EVO 304 24-7 / EVO BLU 24/7 TECHNICAL CHARACTERISTICS FACTORY: TECNOVAP SRL VIA DEI SASSI 1A 37026 PESCANTINA VERONA ITALY Model 24/7 Detergent Standard code E03208I E032060 EW3208I EW32060 ED3208I ED32060 Boiler volume Water tank Detergent tank Not available Rated Voltage... -
Page 7: Preface
This model has a reliable stainless steel boiler which allows to obtain a powerful and steady steam flow. Evo 304 24/7 / Evo Blu 24/7 is furthermore equipped with a separate detergent tank for the injection of disinfectant/detergent at 90-125°C or with a system for the injection of hot water. -
Page 8: Nomenclature
EVO 304 24-7 / EVO BLU 24/7 NOMENCLATURE 01) Water tank cap 30) Extension tubes 02) Detergent tank cap (only for models with 31) Blocking hook detergent injection) 03) General power switch 33) Rectangular brush 04) Power cord with plug 34) Cloth holder 05) Boiler drain cap 35) Triangular brush... -
Page 9: Technical Drawings
EVO 304 24-7 / EVO BLU 24/7 TECHNICAL DRAWINGS Hot water or detergent (based on the model) Pag. 9 29/16... -
Page 10: Operating Instructions
EVO 304 24-7 / EVO BLU 24/7 FUNCTIONS CONTROL PANEL Steam ready indicator Low water indicator Multifunction display Boiler activation switch Power button OPERATING INSTRUCTIONS (a) Open the box and eventually block the unit on its cart (optional). (b) Remove the tank cap (01) and add water, it is recommended to add only softened water, all other liquids can damage the generator or make it unsafe. - Page 11 EVO 304 24-7 / EVO BLU 24/7 (d) Insert the plug (04) into an electrical outlet, making sure that the voltage and the amperage correspond to those printed on the plate located under the machine. ATTENTION Once the water tank is empty the indicators (11) and (17E) will switch on intermittently followed by an acoustic signal;...
- Page 12 EVO 304 24-7 / EVO BLU 24/7 switches on which indicates the presence of steam inside the boiler. Once the indicator (10) lights up select the desired steam flow through the switch (17A) on the steam hose, ( at each switching on of the unit, the steam selection is always deactivated; the led lights on the hose will blink alternatively to indicate the necessity to select the desired steam flow).
- Page 13 EVO 304 24-7 / EVO BLU 24/7 remove the most obstinate dirt from kitchen tops, hoods, fryers, etc. It is possible to clean the dishwasher by spraying steam with the turbo lance (37). In case of heavy incrustation, we suggest to use the small nylon brush (39). IN THE BATHROOM For all areas which are difficult to reach we suggest applying to the steam hose (12) the steam lance (37) and a small brush (39).
- Page 14 EVO 304 24-7 / EVO BLU 24/7 To remove wax from the floor use a cloth fastened to the rectangular brush (33). The steam helps loosen the wax so that its removal will be easier. To spread the wax on the floor use as mentioned above a clean cloth fastened onto the brush.
-
Page 15: Maintenance
EVO 304 24-7 / EVO BLU 24/7 Steam iron Mod. Tulipano: To iron with steam the iron thermostat (61) should be positioned between the symbol “••” (wool) and the symbol “•••” (cotton). Wait a few minutes as to allow the iron to reach its ideal temperature. The steam flow from the iron is obtained by activating at short intervals the red switch (62) on the handgrip of the iron. - Page 16 EVO 304 24-7 / EVO BLU 24/7 MAINTENANCE OF THE STEAM GENERATOR ELIMINATION OF SCALE DEPOSITS FROM THE BOILER The unit is equipped with a maintenance warning which is working by writing CALC on the display alternatively with the visualized temperature. When the sign lights up it is possible to finish the cleaning task, then disconnect the power plug and let the appliance cool down for at least 5 hours.
- Page 17 EVO 304 24-7 / EVO BLU 24/7 8.3. PRESSURE GAUGE With the unit being turned on press and keep pressed the button (07), after some seconds the display will show the value of the pressure in bar inside the boiler; this data will remain visible on the display for 10 seconds.
-
Page 18: Before Referring To The Technical Service
EVO 304 24-7 / EVO BLU 24/7 BEFORE REFERRING TO THE TECHNICAL SERVICE PROBLEM POSSIBLE CAUSE REMEDY The machine does not produce Lack of power. Make sure that the plug (04) is well inserted and steam. that the main switch of the building is activated. The red “low water”... -
Page 19: 10. Declaration Of Conformity
EVO 304 24-7 / EVO BLU 24/7 10. DECLARATION OF CONFORMITY Pag. 19 29/16... - Page 20 EVO 304 24-7 / EVO BLU 24/7 DICHIARAZIONE DI CONFORMITA’ CE (EC DECLARATION OF CONFORMITY) TECNOVAP S.R.L. con la presente dichiara che: le macchine per pulizia a vapore modello: (Certifies that the steam cleaning machine model:) Evo Cod: E03208I, E032060, EW3208I, EW32060, ED3208I, ED32060...
- Page 21 EVO 304 24-7 / EVO BLU 24/7 Generator working Frequency Notes hours intervention Extraordinary maintenance procedures Pag. 21 29/16...
- Page 22 EVO 304 24-7 / EVO BLU 24/7 Generator Intervention working Intervention description, replaced components etc. hours NOTES Pag. 22 29/16...
- Page 23 EVO 304 24-7 / EVO BLU 24/7 Pag. 23 29/16...
- Page 24 EVO 304 24-7 / EVO BLU 24/7 Pag. 24 29/16...
- Page 25 EVO 304 24-7 / EVO BLU 24/7 THE MANUFACTURER RESERVES THE RIGHT TO IMPLEMENT TECHNICAL AND STRUCTURAL CHANGES AND IMPROVEMENTS WITHOUT PRIOR NOTICE. Pag. 25 29/16...
