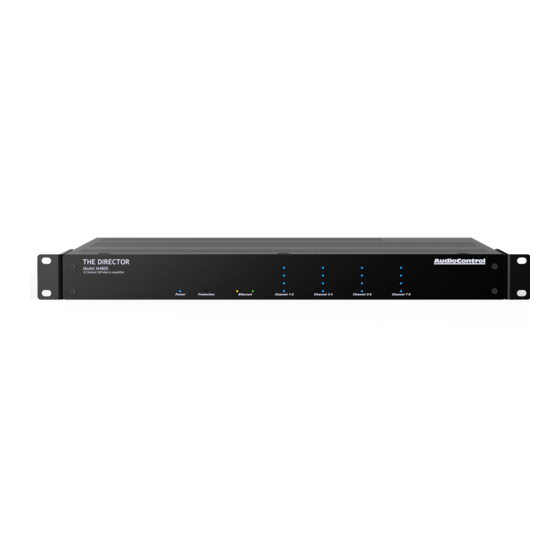

  • Page 1 Audio Control M4800 M6400 D4600 Crestron Driver User Guide...
  • Page 2 Audio Control M6400 / M4800 / D4600 Crestron Driver User Guide Contents Introduction ....................... 2 Diagram ........................3 Module Definitions ...................... 4 Grouping ........................9...

  • Page 3: Introduction

    Audio Control M6400 / M4800 / D4600 Crestron Driver User Guide Introduction This driver has been designed to provide two-way control of AudioControl M4800, M6400 and D4600 network amplifiers, via TCP/IP. The package includes a demonstration file in smw format to aid with integration into a Crestron project.

  • Page 4: Diagram

    Audio Control M6400 / M4800 / D4600 Crestron Driver User Guide Diagram AudioControl ZoneAnalogue AudioControl AudioControl AudioControl Device Comms ZoneDigital AudioControl Group...

  • Page 5: Module Definitions

    Audio Control M6400 / M4800 / D4600 Crestron Driver User Guide Module Definitions AudioControl_{Model} _Comms_VX_XX.umc The central module handling all communications between Crestron and the amplifier. This module will require a "TCP/IP Client" device to be configured in the SIMPL Windows program, with the IP address of the amplifier defined, and the port defined as “23”.
  • Page 6 Audio Control M6400 / M4800 / D4600 Crestron Driver User Guide AudioControl ZoneAnalogue_VX_XX.umc Signal Name Type Description Signal FROM AudioControl_{Module}_Comms.umc This signal ZoneCommsRx INPUT must match the Zone parameter. Example: If 'Zone3CommsTx' is connected, Zone must be set to 'Zone 3'.
  • Page 7 Audio Control M6400 / M4800 / D4600 Crestron Driver User Guide Set the zone volume level. Valid range 0d to VolumeSet INPUT 100d. Set the zone bass level. Valid range 0d (-10) to BassSet INPUT 20d (+10). A value of 10d is equivalent to 0 cut/boost or flat response.
  • Page 8 Audio Control M6400 / M4800 / D4600 Crestron Driver User Guide 11. Digital C (M4800 only) 12. Digital D (M4800 only) D-Series 13. Bus A 14. Bus B 15. Local The zone that this module is controlling. This Zone PARAMETER must match ZoneCommsRx.
  • Page 9 Audio Control M6400 / M4800 / D4600 Crestron Driver User Guide 13. Bus A 14. Bus B 15. Local Set the group volume level. Valid range 0d to VolumeSet INPUT 100d. Set the group bass level. Valid range 0d (-10) to...

  • Page 10: Grouping

    Audio Control M6400 / M4800 / D4600 Crestron Driver User Guide Grouping When setting up groups, there is an option to lock the groups on the zone configuration page: It is recommended that you do not use this feature. If a group is locked and the group volume +/- buttons are pressed, the device will only change the volume for the first zone in the group.
