- Page 1 VERSION 1.0 LOKRING HAND ASSEMBLY TOOLS ® INSTRUCTION MANUAL HMRK-L, HMRK-V, MZ & MZ-V...
-
Page 3: Table Of Contents
VERSION 1.0 CONTENTS NOTICES EXPLANATION OF SYMBOLS INTENDED USE LIMITATION OF LIABILITY SCOPE OF DELIVERY WARRANTY TERMS MANUFACTURER PRODUCT DESCRIPTION SAFETY BEFORE FIRST USE ASSEMBLY JAWS INSERTION OF THE ASSEMBLY JAWS HMRK-V AND MZ-V ASSEMBLY OF LOKRING CONNECTORS TYPE 00 ASSEMBLY OF LOKRING CONNECTORS TYPE 50 MAINTENANCE, CARE, AND DISPOSAL STORAGE... -
Page 4: Notices
02 | LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL VERSION 1.0 NOTICES The illustrations in this manual are provided for purposes of basic understanding and can deviate from the actual version. The usual procedures, such as wearing suitable work clothing when work- ing with the product, are presumed to be known. -
Page 5: Limitation Of Liability
• 1 x LOKRING hand assembly tool WARRANTY TERMS The warranty terms are included in the manufacturer’s General Terms & Conditions. MANUFACTURER VULKAN Lokring Rohrverbindungen GmbH & Co. KG Heerstrasse 66, 44653 Herne, Germany Tel.: +49 2325-922-155 Fax. +49 2325 51222... -
Page 6: Product Description

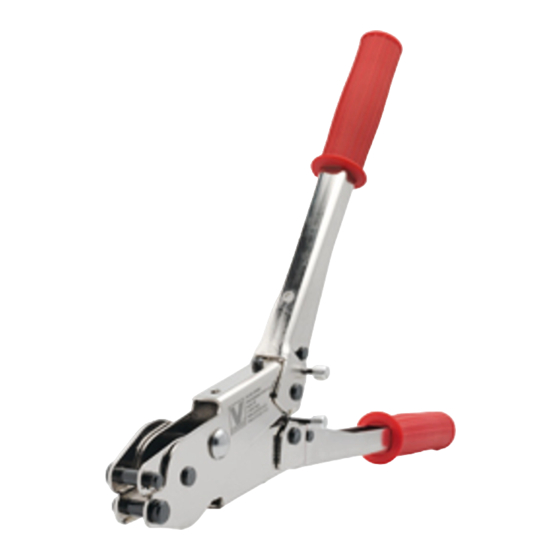

04 | LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL VERSION 1.0 PRODUCT DESCRIPTION There are 4 different versions of the hand assembly tool: HMRK-L HMRK-V MZ-V Type HMRK-L HMRK-V MZ-V Dimensions 400 x 70 x 45 mm 400 x 70 x 45 mm 400 x 70 x 45 mm 400 x 70 x 45 mm 15.75"... -
Page 7: Safety
LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL | 05 VERSION 1.0 SAFETY DANGER! DANGER! DANGER OF INJURY! Severe injury is the result! Hold the tool with both hands in such a manner that the possibility of injury due to the jaws moving together is excluded. WARNING! WARNING! DANGER OF INJURY! Severe injury is the result! For all tasks with the hand assembly tool the relevant safety... -
Page 8: Use
06 | LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL VERSION 1.0 BEFORE FIRST USE Take the hand assembly tool out of its packaging. A thin film of oil has been applied to the hand assembly tool. Remove excess oil with a lint-free cloth. Open and close the hand assembly tool a few times to check the functionality of the hand assembly tool. -
Page 9: Insertion Of The Assembly Jaws
LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL | 07 VERSION 1.0 INSERTION OF THE ASSEMBLY JAWS Insert the suitable assembly jaws as shown. Attention! Always insert bolts from the proper side. If you hold the tool as shown, insert the left bolt from the front and the right bolt from the rear. -
Page 10: Assembly Of Lokring Connectors Type
08 | LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL VERSION 1.0 Open and close the assembly arm (E) until the tube connection is correctly assembled. To release the hand assembly tool, completely open the assembly arm (E) so that the pawl (C) is not engaged in the sprocket, and the assembly jaws have opened again. -
Page 11: Maintenance, Care, And Disposal
LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL | 09 VERSION 1.0 MAINTENANCE, CARE, The hand assembly tools are maintenance-free. For a longer service life we recommend oiling the AND DISPOSAL roller chain and the sprocket on occasion with usual machine oil. Replace defective components immediately and only with original spare parts as specified in Appendix A (original parts list). -
Page 12: Examples As Assembly Aid
10 | LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL VERSION 1.0 EXAMPLES AS ASSEMBLY AID TYPE 00 INCORRECT CORRECT DON’T PLACE THE ASSEMBLY JAWS (1) DIRECTLY BEHIND THE JOINT (2)! Put the assembly jaws MB (1) in place behind both LOKRINGs (3). TYPE 50 INCORRECT CORRECT... - Page 13 LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL | 11 VERSION 1.0 ASSEMBLY JAWS INCORRECT CORRECT Use the right jaw size behind. CORRECT INCORRECT Insert the assembly jaws as shown on the right picture.
-
Page 14: Parts Lists With Overview Drawing
12 | LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL VERSION 1.0 PARTS LISTS WITH OVERVIEW DRAWING Pos. Quantity Article name Article no. handle HM, fix L20000227 bolt H10,0 x 0,5 - ø 8,0 x 19,8 - G L12000114 HMRK-L bolt H10,0 x 2,0 - ø 8,0 x 25,0 - G L12000115 bolt H12,0 x 4,5 - ø... - Page 15 LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL | 13 VERSION 1.0 HMRK-L...
-
Page 16: Hmrk-V
14 | LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL VERSION 1.0 HMRK-V Pos. Quantity Description Article no. bolt H10,0 x 0,5 - ø 8,0 x 19,8 - G L12000114 bolt H10,0 x 2,0 - ø 8,0 x 25,0 - G L12000115 bolt H12,0 x 4,5 - ø... - Page 17 LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL | 15 VERSION 1.0 HMRK-V...
- Page 18 16 | LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL VERSION 1.0 Pos. Quantity Description Article no. hand assembly tool MZ neutral L13003959 1.01 handle MZ, fix L20000181 1.03 bolt H11,0 x 0,5 - ø 8,0 x 22,8 - G L12001243 1.04 bolt H10,0 x 2,0 - ø...
- Page 19 LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL | 17 VERSION 1.0...
-
Page 20: Mz-V
18 | LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL VERSION 1.0 MZ-V Pos. Quantity Description Article no. hand assembly tool MZ-V neutral L13004246 1.03 bolt H11,0 x 0,5 - ø 8,0 x 22,8 - G L12001243 1.04 bolt H10,0 x 2,0 - ø 8,0 x 26,0 - G L12001244 1.05 bolt H12,0 x 4,5 - ø... - Page 21 LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL | 19 VERSION 1.0 MZ-V...
- Page 22 20 | LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL VERSION 1.0 NOTES...
- Page 23 LOKRING HHAND ASSEMBLY TOOL INSTRUCTION MANUAL | 21 VERSION 1.0...
-
Page 24: Online Service
22 | LOKRING HAND ASSEMBLY TOOL INSTRUCTION MANUAL VERSION 1.0 ONLINE-SERVICE FOR FURTHER INFORMATION, PLEASE REFER TO OUR WEBSITE WWW.VULKAN.COM. AUTHORISED DISTRIBUTORS www.vulkan.com/en-us/lokring/contact/ VIDEOS www.vulkan.com/en-us/lokring/videos/ TECHNICAL DOCUMENTATION AND SUBMITTAL www.vulkan.com/en-us/lokring/downloads/technical-documentation-and-submittal CATALOGUES & BROCHURES www.vulkan.com/en-us/lokring/downloads/ CERTIFICATES www.vulkan.com/en-us/lokring/downloads/certificates/... -
Page 25: Imprint
® Tel.: + 49 (23 25) 922-155 VULKAN Lokring. VULKAN Lokring as the supplier is responsible for the qualitative delivery of the tube connections and tools which are ordered from this catalogue. Fax: + 49 (23 25) 51222 E-mail: info.lok@vulkan.com... - Page 26 VULKAN Lokring Rohrverbindungen GmbH & Co. KG | Heerstraße 66 | 44653 Herne | Germany Phone + 49 (0) 2325 922-155 | + 49 (0) 2325 51222 | Mail info.lok@vulkan.com | www.vulkan.com For a list of our Authorised Distributors, please refer to...
