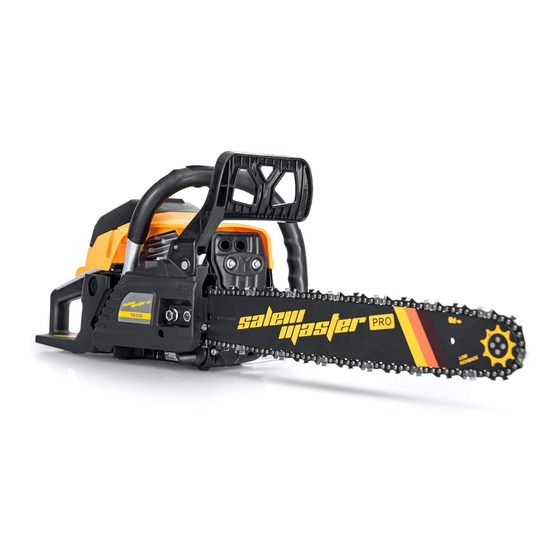

- Page 1 OPERATOR'S MANUAL 2-Cycle Chain Saw 6220G /6220H/5820G/5820H...
-
Page 2: Table Of Contents
Contents Introduction..............2 Troubleshooting............27 Safety................4 Assembly..............13 Operation..............16 Maintenance..............22... -
Page 3: Introduction
Saw Chain Trigger lockout Guide Bar Trigger Rear Handle Visible fuel tank Bumper Spike Starter Cover Chain Oil Tank Switch Button Fuel Tank Cylinder Muffler Saw Chain Guide Bar Clutch cover Bar Nuts Chain-tensioning Screw Note: isible fuel tank 5820G/6220G only. - Page 4 Symbols on the product This product agrees with the applicable EAC directives Meaning Warning This product agrees with the applicable Ukraine directives Read this manual Prohibited Use approved head protection, hearing protection and eye Hold the product properly with protection both hands Use approved protective gloves Do not use with one hand...
-
Page 5: Safety
• the product has an accessory that is not • the product is not repaired at an approved from the manufacturer or not approved by service center or by an approved authority. the manufacturer. Safety maintenance to the product if you are not Safety definitions sure about the situation. - Page 6 • Do not go away from the product when the • The product must be operated with two engine is on. Stop the engine and make hands. Do not operate the product with one sure that the chain does not rotate. hand.
- Page 7 • Always hold the product with your two hands. Hold the front handle with your left hand and the rear handle with your right hand. Hold the product on the right side of your body. • The saw chain starts to rotate if the choke control is in the choke position when the engine starts.
- Page 8 • The operator should remain on the uphill side of the terrain as the tree is likely to roll or slide downhill after it is felled. • Plan and prepare your path of retreat before you start to cut. Your path of retreat must be approximately 135 degrees away from the felling direction.
- Page 9 saw chain during the cut. Loss of control can result if the product touches an object in wood. • Pinch-Kickback can occur when the saw chain suddenly stops during the cut. The wood closes in and pinches the moving saw chain along the top of the guide •...
- Page 10 cause the loss of control of the product • Do not overreach or cut above shoulder by the operator. height. • Obey the manufacturer's sharpening and Make sure that you understand the different maintenance instructions for the saw chain. forces and how to prevent them before you •...
- Page 11 Always have fire extinguishing tools and a 6. If the saw chain turns with an idle engine, shovel available to help prevent forest fires. examine the idle adjustment screw of the carburetor. Protective devices on the product • Make sure that you regularly do the Guard maintenance to the product.
- Page 12 or death because of asphyxiation or carbon • Examine the product for damaged parts. monoxide. Before more use of the product, make sure the damaged guard or part operates • Tighten the fuel tank cap carefully or a fire correctly. Examine for broken or incorrectly can occur.
-
Page 13: Assembly
Assembly 3. Put the guide bar above the bar bolts. WARNING: Read and understand Steer the guide bar to under clutch the safety chapter before you position. assemble the product. To assemble the guide bar and saw chain Guide Bar bolts 1. - Page 14 10.Tighten the saw chain by turning the chain 6. Make sure that the edges of the cutting tensioning screw clockwise with the links are turned forward on the top edge of combination wrench the guide bar. Chain Cutters Rotation Chain Drive Links 7.
- Page 15 ADJUSTING THE CHAIN TENSION CAUTION: The chain must be tensioned whenever the flats on the drive links hang out of the bar groove. Check for proper chain tension before starting the unit and periodically during operation. 1. Stop the engine. 2.
-
Page 16: Operation
25:1 Visible fuel tank Fuel Tank Chain oil tank Note: isible fuel tank 5820G/6220G only To make the fuel mixture 1. Determine the correct quantity of gasoline UNLEADED GAS 2 CYCLE OIL and engine oil (mixture ratio 25:1). Do not 1 GALLON US 5.1 FL. - Page 17 4. Fill the saw chain oil tank with the CAUTION: Do not use gasoline recommended saw chain oil. with an octane number less than 5. Put back the cap of the saw chain oil tank. 90 RON (87 AKI). This can cause damage to the product.
- Page 18 3. Pull the choke control out fully. 9. If the engine starts or tries to start, push the choke control back fully position. Choke control Choke control 10.Continue to pull until the engine starts. 11.Hold the rear handle with your right hand and the front handle with your left hand.
- Page 19 Cylinder flooded 15.Run 10 seconds at normal idle speed. 16.Pull the throttle trigger slowly but fully for 5 a. Turn off the switch button. seconds to check acceleration, then b. Remove the air filter cover. release. c. Remove the air filter. 17.Use the product.
- Page 20 4. Pull the starter rope handle until the engine Adjusting the automatic oiler starts. The oiler automatically delivers the proper amount of oil to the guide bar and saw chain. As the engine speed increases, so does the oil flow. The amount of oil flowing to the guide bar and saw chain maybe changed by turning the adjustment screw with a small standard...
- Page 21 To fell a tree 1. Remove dirt, stones, loose bark, nails, staples and wire from the tree. 2. Make a notch 1/3 the diameter of the tree, perpendicular to the direction of the fall. 5. As the felling back cut nears the hinge, the tree starts to fall.
- Page 22 To limb a tree 1. Use larger limbs to hold the log off the ground. 2. Remove small limbs in one cut. • If the log is supported on both ends, cut 1/3 the diameter from the top. Complete the cut by underbucking the lower 2/3 of the log to meet the first cut.
-
Page 23: Maintenance
Maintenance • Turn the guide bar daily for more even WARNING: Read and understand wear. the safety chapter before you clean, • Make sure that the lubrication hole in the repair or do maintenance on the guide bar is not clogged. product. - Page 24 • Examine the drive sprocket for excessive • Clean or replace the spark arrestor screen wear and replace if necessary. on the muffler. Muffler. Drive sprocket • Clean the air intake of the starter unit. • Make sure that the nuts and screws are Air filter tight.
- Page 25 Adjust the carburetor To clean the spark arrester screen . Use a wire brush to clean the spark arrester screen. To do maintenance on the spark plug CAUTION: Use the recommended spark plug. Make sure that the replacement is the same as the manufacturer supplied part.
- Page 26 • Cutting angle. To sharpen the saw chain The cutter The cutting part of the saw chain is called the cutter and consists of a cutting tooth (A) and the depth gauge (B). The cutters cutting depth is determined by the difference in height between the two, the depth gauge setting (C).
- Page 27 To sharpen the cutting teeth Use a round file and a file gauge to sharpen the cutting teeth. information on the recommended dimension of the file and gauge for the saw chain installed on your product. 1. Make sure that the saw chain is correctly tensioned.
- Page 28 TROUBLESHOOTING CAUSE SOLUTION THE UNIT WILL NOT START OR STARTS BUT DOES NOT CONTINUE TO RUN The unit was started incorrectly Follow all Starting and Stopping Instructions The carburetor mixture adjustment setting is incorrect Contact our service center The spark plug is fouled Clean, gap or replace the spark plug The fuel tank is empty Fill the fuel tank with properly mixed fuel...
