Summary of Contents for Salem Master Pro 6220G

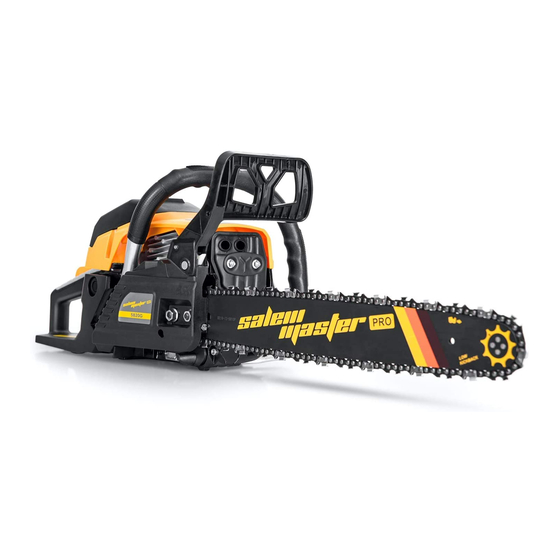

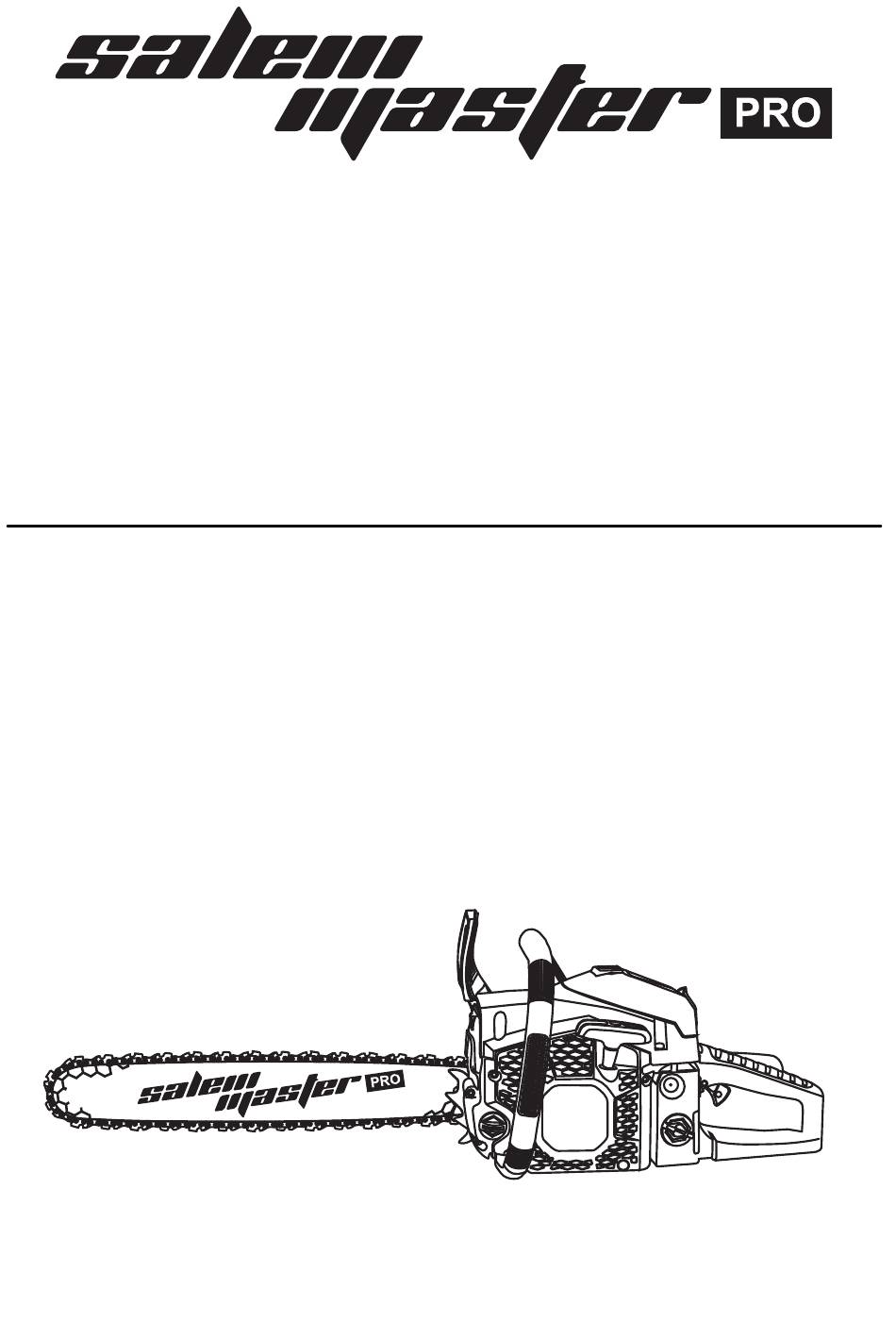

- Page 1 Assembly&Use Manual 2-Cycle Chain Saw 6220G /5820G...
-
Page 2: Product Overview
Introduction Operator's manual READ ALL INSTRUCTIONS BEFORE OPERATING Product overview 1. Starter handle 12.Guide bar 23.Guide-bar nuts 2. Air filter cover 13.Saw chain 24.Chain tensioning screw 3. Front handle 14.Pumper spike screw 25.Guide-bar cover 4. Cylinder cover 15.Chain oil tank 26.Combination tool 5. -
Page 3: To Assemble The Guide Bar And Saw Chain
Assembly 3. Put the guide bar above the bar bolts. WARNING: Read and understand Steer the guide bar to under clutch the safety chapter before you position. assemble the product. To assemble the guide bar and saw Guide Bar bolts chain 1. - Page 4 10.Tighten the saw chain by turning the chain 6. Make sure that the edges of the cutting tensioning screw clockwise with the links are turned forward on the top edge of the guide bar. combination wrench Chain Cutters Rotation Chain Drive Links 7.
-
Page 5: Adjusting The Chain Tension
ADJUSTING THE CHAIN TENSION 11.Hold up the end of the guide bar and tighten the bar nuts with the combination wrench. CAUTION: The chain must be tensioned whenever the flats on the drive links hang out of the bar groove. Check for proper chain tension before starting the unit and periodically during operation. -
Page 6: Operation
Operation WARNING: Read and understand the safety chapter before you operate the product. CAUTION: For proper engine operation and maximum reliability, pay strict attention to the oil and fuel mixing instructions on the 2-cycle oil container. Using improperly mixed fuel can severely damage the engine. WARNING: Gasoline is extremely flammable. -
Page 7: To Start And Stop
2. Make sure that the area near the cap of the CAUTION: Do not use gasoline saw chain oil tank is clean. with an octane number less than 3. Remove the cap of the saw chain oil tank. 90 RON (87 AKI). This can cause damage to the product. - Page 8 3. Pull the choke control out fully. 9. If the engine starts or tries to start, push the choke control back fully position. Choke control Choke control 10.Continue to pull until the engine starts. 11.Hold the rear handle with your right hand and the front handle with your left hand.
- Page 9 Cylinder flooded 15.Run 10 seconds at normal idle speed. 16.Pull the throttle trigger slowly but fully for 5 a. Turn off the switch button. seconds to check acceleration, then b. Remove the air filter cover. release. c. Remove the air filter. 17.Use the product.
- Page 10 4. Pull the starter rope handle until the engine Adjusting the automatic oiler starts. The oiler automatically delivers the proper amount of oil to the guide bar and saw chain. As the engine speed increases, so does the oil flow. The amount of oil flowing to the guide bar and saw chain maybe changed by turning the adjustment screw with a small standard...
-
Page 11: Troubleshooting
TROUBLESHOOTING CAUSE SOLUTION THE UNIT WILL NOT START OR STARTS BUT DOES NOT CONTINUE TO RUN The unit was started incorrectly Follow all Starting and Stopping Instructions The carburetor mixture adjustment setting is incorrect Contact our Amazon service The spark plug is fouled Clean, gap or replace the spark plug The fuel tank is empty Fill the fuel tank with properly mixed fuel...
Need help?
Do you have a question about the 6220G and is the answer not in the manual?
Questions and answers
What size are the bar nuts for replacement?

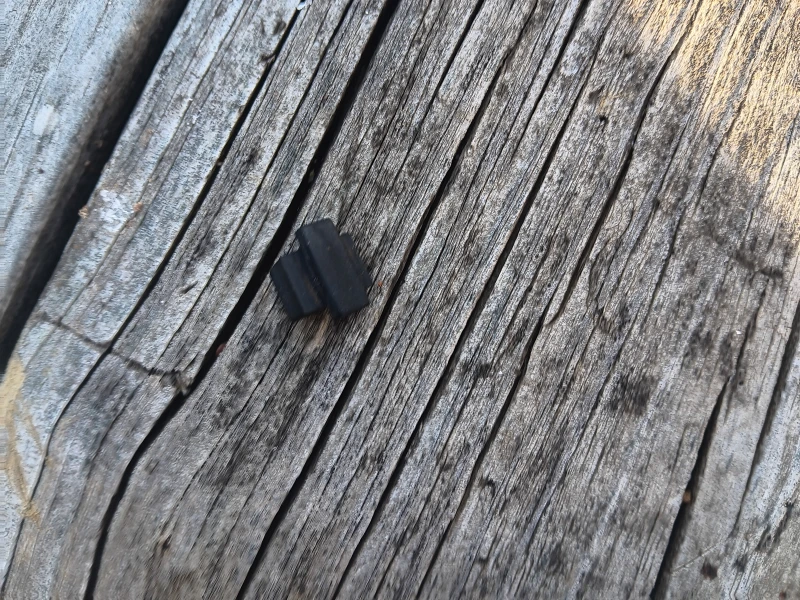

Have a rubber pice that goes on the choke and don't know where it goes at
