S9360A, S9361A,
S9380A, S9381A

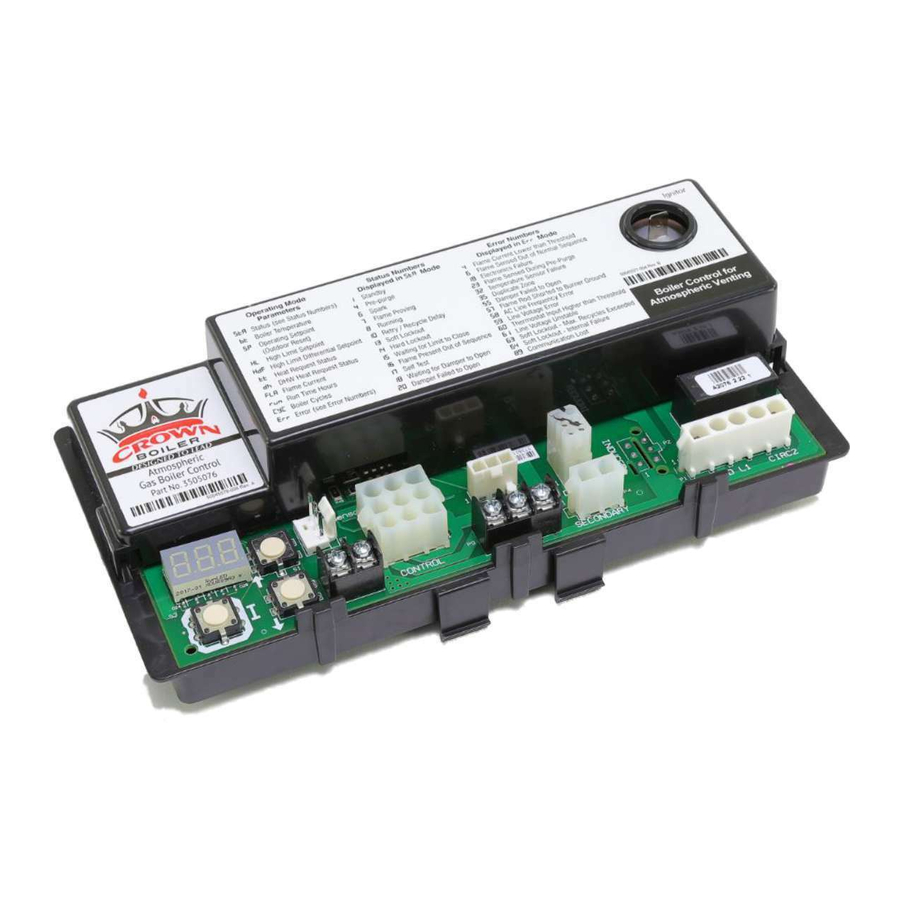

Integrated Boiler Controllers
APPLICATION
These integrated boiler control modules provide ignition
sequence, flame monitoring and safety shutoff for
intermittent pilot spark ignition, or direct spark ignition
heating systems. They also provide limit rated water
temperature control with one or two sensors and display
interface capability for either "on-board" or remote user
interface applications.
• S9360A—Spark Ignition, Intermittent Pilot, Remote
Display.
• S9361A—Spark Ignition, Intermittent Pilot, "On board"
Display.
• S9380A—Direct Spark Ignition, Remote Display.
• S9381A—Direct Spark Ignition, "On board" Display.
• Enabled with EnviraCOM™ communication capability
to support remote monitoring and diagnostics.
• Limit-rated Temperature Sensing Probe.
• Ignitor sensor type
— two rod (separate ignitor and sensor)
— one rod (combined ignitor and sensor)
2012 DOE Compliance and Operation
Operation of this control may delay the burner operation while the residual heat is circulated
out of the boiler.
NOTE:
This operation may be different than earlier integrated boiler control
revisions which did not implement thermal purge.
INSTALLATION INSTRUCTIONS
SPECIFICATIONS
IMPORTANT:
The specifications given in this publication do
not include normal manufacturing tolerances.
Therefore, an individual unit may not match the
listed specifications exactly. Also, this product is
tested and calibrated under closely controlled
conditions, and some minor differences in
performance can be expected if those
conditions are changed.
Model Numbers
S—Switching Control
9 3—Integrated Hydronic Control Platform
6—Spark Ignition
8—Direct Spark Ignition
0—Remote Display Required
1—Integrated On-Board Display
A—Boiler Control
B—Water Heater Control
C—Pool Heater Control
1—No Circulator
2—On/Off Circulator
3—On/Off Circulator meeting CSD-1
66-1203-05
