INDEX
Component list . . . . . .2
Tool list . . . . . . . . . . . .4
1
Unpacking . . . . . . . . . .5
2
Stem & Handlebar . . . . .6
3
Front wheel . . . . . . . . .7
4
Set bike up . . . . . . . . . .9
5
Fender . . . . . . . . . . . . .10
6
Fender stays . . . . . . . .11
7
Seatpost . . . . . . . . . . . .12
8
Saddle . . . . . . . . . . . . .13
9
Angles . . . . . . . . . . . . .14
10 Bell . . . . . . . . . . . . . . . .15
11 Pedals . . . . . . . . . . . . .16
12 Reflector . . . . . . . . . . .17
13 All set up . . . . . . . . . . .18
14 Maintenance . . . . . . . . .19

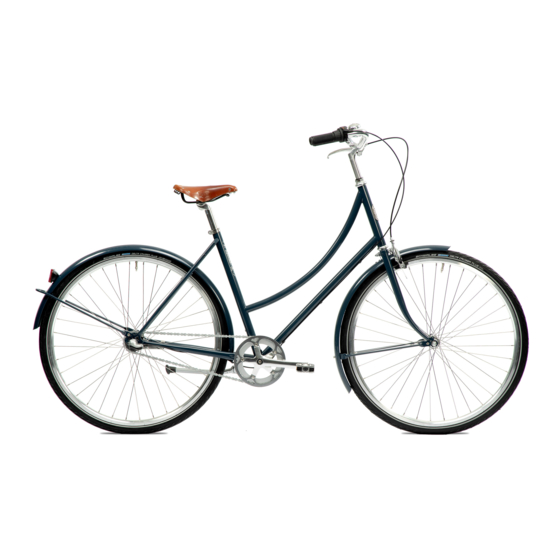

A new Pelago bicycle is packed pre-assembled in a box with
most of the parts already installed.
The bicycle is packed in the box to prevent it from damage
in shipping, and that's why some parts are not installed. Don't
worry - assembling the bike is easy and soon you'll be riding!
These instructions are only guidelines for building up your new
bicycle and there might be small variations with specific models.
If you have any questions or do not understand something in the
instructions, consult with your local dealer, bicycle shop or our
web support.
This manual is not intended as a comprehensive use, service,
repair or maintenance manual. Please see a dealer or professional
bicycle service for all service, repairs or maintenance.
MANUFACTURER
Pelago Mfg Ltd.
Helsinki, Finland
info@pelagobicycles.com
TEL +358 (0)45 161 6847
Advertisement
Table of Contents
Related Manuals for Pelago Bristol
Summarization of Contents
Unpacking and Initial Setup
Unpacking
Carefully unpack the bicycle to avoid scratching paint or causing damage.
Stem and Handlebar Installation
Insert Stem to Frame
Install the bicycle stem into the frame securely.
Insert Handlebar to Stem
Attach the handlebar to the stem, checking alignment for specific models.
Front Wheel Installation
Install Front Wheel to Fork
Mount the front wheel onto the fork, ensuring correct tyre rotation.
Tighten Front Wheel to Fork
Securely fasten the front wheel to the fork with the specified torque.
Setting Up the Bike
Set Bike Up with Kickstand
Position the bicycle upright using the kickstand.
Fender and Fender Stay Installation
Install Fender
Attach the fender to the bicycle frame, ensuring proper alignment.
Install Fender Stays
Connect fender stays to the fork and frame for support.
Seatpost and Saddle Installation
Install Seatpost Clamp and Seatpost
Insert and secure the seatpost into the frame.
Install Saddle
Attach the saddle to the seatpost.
Adjusting Angles
Check Saddle Angle
Verify the saddle angle is within the recommended 0-5 degrees.
Check Handlebar Angle
Adjust the handlebar angle to approximately -10 degrees.
Pedal Installation
Install Right Pedal
Screw the right pedal clockwise into the crank arm.
Install Left Pedal
Screw the left pedal counter-clockwise into the crank arm.
Final Checks and Break-in
Your Bike Is Built Up!
Perform final checks on brakes, tyres, and gears for safe operation.
Break-in Period and First Service
Allow components to settle and schedule a first service after one month.
