THE MPR-9400 PV CONTROLLER is your TOTAL PV controller solution for your
telecommunication, residential and hybrid power needs. TOTAL because we put the
most advanced and innovative features in our basic to advanced controller systems.
The MPR-9400 addresses the TOTAL needs of your batteries as well as your loads.
THE MPR-9400 provides dramatically reduced maintenance costs as well as increased
s u rvivability at your sites.
Kyocera Solar, Inc. provides complete turn-key power system contro l l e r s.
F e a t u re s
•
Communication via RS232 Serial Interf a c e
•
Advanced MPR-9400 modular Micro - P rocessor contro l
c i rc u i t ry to allow flexible controller configurations
•
PV power from 60 to 300 amps (larger PV inputs
available) at all voltages from 12 to 120VDC
• Three subarray staged taper charg e
• Pulse finish charg e
• True equalizations
•
Advanced charging algorithms, EBBM™
• Te m p e r a t u re compensated
•
Advanced generator contro l s
•
Load control from 35 to 200 amps
• One or two stages - load prioritized
•
± 5% Load voltage re g u l a t i o n
• One to three staged "CEMF"
•
Complete monitoring capabilities
• Multiple voltage, multiple currents, multiple
t e m p e r a t u res, solar insolation, date and time, fuel
level and data logging. All control channel states moni-
t o re d
•
L E D 's - Load, PV, LVA, HVA, GEN and Analog back up
•
3 X 3 Keypad and 2 X 24 LCD for set point modification
and viewing monitored parameters
•
A l a rm relays, LVA and HVA, form C voltage fre e
•
System Safety
• Reverse polarity pro t e c t e d
• Transient voltage pro t e c t i o n
• Circuit breakers on arrays and Loads
•
NEMA 4X or NEMA 1 enclosure - sizes
v a ry depending on controller capacity
•
Analog back up of digital contro l s
•
Remote communications option
•
MAIN battery disconnect option
•
Two year limited warr a n t y
M P R - 9 4 0 0
P H O T O V O LTAIC – HYBRID
POWER SYSTEM CONTROLLER
Medium to Large Size Systems

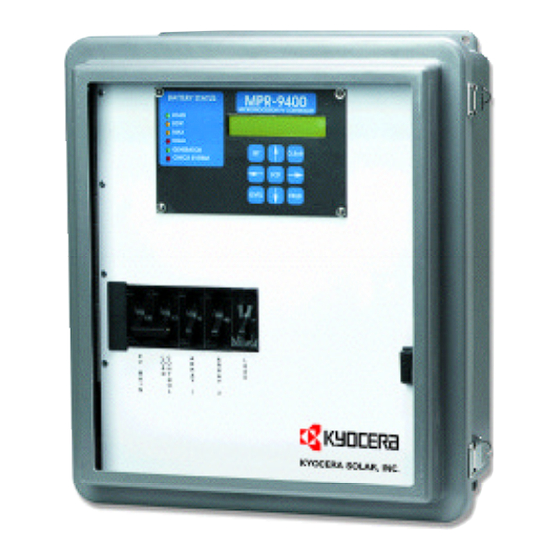

S t a n d a rd MPR-9400 Instrument Panel
S t a n d a rd MPR-9400 Power Components
Advertisement
Related Manuals for Kyocera MPR-9400
Summary of Contents for Kyocera MPR-9400
- Page 1 M P R - 9 4 0 0 P H O T O V O LTAIC – HYBRID POWER SYSTEM CONTROLLER Medium to Large Size Systems THE MPR-9400 PV CONTROLLER is your TOTAL PV controller solution for your telecommunication, residential and hybrid power needs. TOTAL because we put the most advanced and innovative features in our basic to advanced controller systems.
- Page 2 M P R - 9 4 0 0 Remote Communication The M P R - 9 4 0 0 can be equipped with an optional 14,400 baud MODEM which will allow the user to dial the remote site's MPR-9400 using our M P R C O M M s o f t w a re package OR communications can be accomplished via the R S 2 3 2 serial interface through your communication equipment to retrieve the system’s status.
