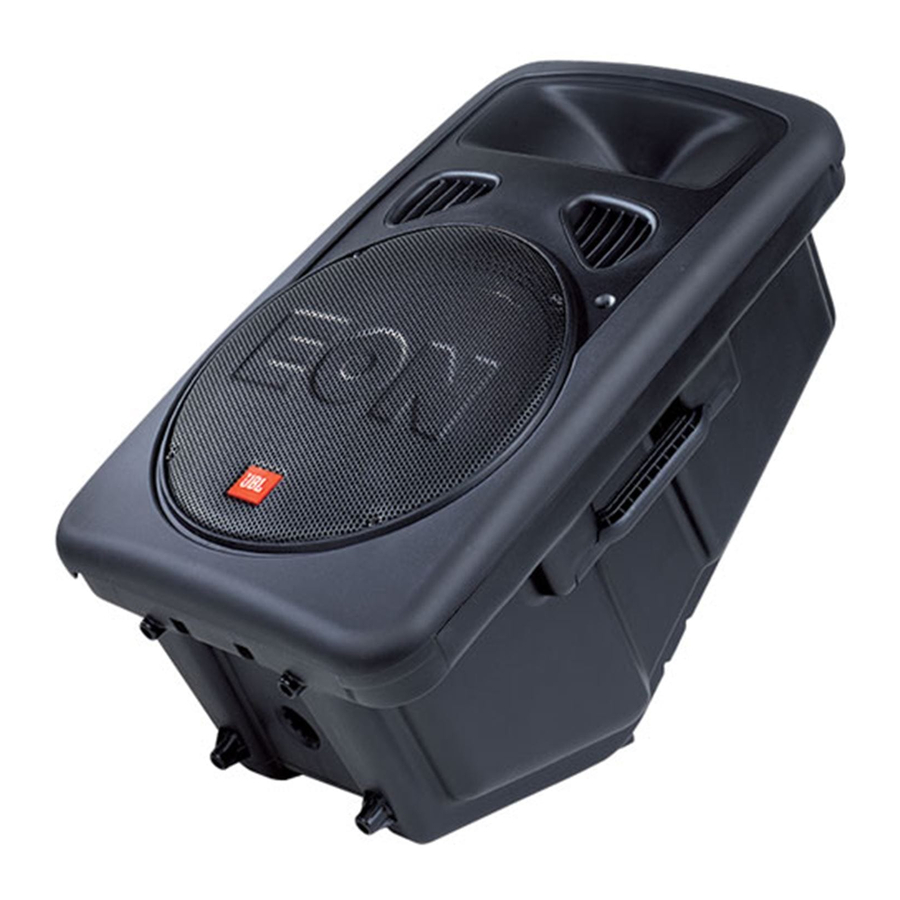

JBL EON Power15 Introduction And General Information

Introduction and General Information
This manual has been prepared to assist technicians with the repair and maintenance of
the JBL EON line of portable performance systems. The procedures described in this man-
ual require advanced technical experience and equipment to perform.
There are no user-serviceable parts inside these products. Opening these
products or attempting to service may expose the user to electrical shock.
Refer servicing to qualified personnel.
Substitutions
Although many of the electronic components used in these products may be available from
electronic suppliers, some components are JBL replacements only. A product repaired with-
out JBL specified components may not meet the factory specifications. The product war-
ranty may be voided by a repair using unapproved JBL components.
Test Equipment
1) Audio Precision System One, or
Distortion Analyzer
Function Generator
2) 20MHz Oscilloscope
3) Desoldering Equipment
4) Digital Multimeter
5) High Power Load Bank
6) Variac
The complexity of the product under repair requires professional audio service equipment.
Do not attempt to repair this product without this equipment.
Factory Repair
In the U.S. and Canada: In the event that an EON product must be returned to the factory
for service, contact JBL Professional Service at (818) 895-3479 for return instructions. Do
not return any merchandise without prior authorization.
Outside the U.S.: Contact the JBL Professional Distributor in your area for service
information.
WARNING
