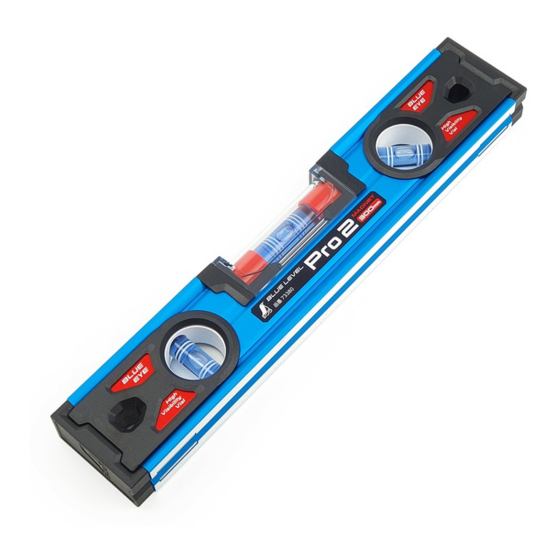

Shinwa 75318 Instruction Manual

Blue Level Pro 2 Digital Dust/Waterproof
350 mm （75313） /350 mm with Magnet （75316）
450 mm （75314） /450 mm with Magnet （75317）
600 mm （75315） /600 mm with Magnet （75318）
Instruction Manual
●For angle and gradient measurement with piping, construction, equipment
and civil engineering, etc.
●IP65 dustproof/waterproof performance *1(digital measurement unit only)
●Alarm function with 3 sounds depending on inclination when device is near
0 ° or 90 ° (● See how to change the alarm sound during measurement) to
easily make fine adjustments horizontally and vertically
●If the level body is used in reverse, the display automatically shows in
reverse as well
●Large buttons that are easy to operate
●With a cover to protect the horizontal vial. Cover can be removed and
washed when dirty. (Vial is not waterproof)
●Horizontal vial can be adjusted as required *2
●High-visibility vial with clear blue liquid and white line. Horizontal vial has
three base lines on both sides to measure horizontal, 1/50 and 1/100
gradients.
●Digital unit can measure rise, angle and gradient
●Digital measurement unit functions include calibration, hold, relative
measurement (zero set), backlight, auto power off, and battery
consumption warning
●Pipe measurement is also possible using measurement reference side with
V-shaped groove
●Handy for steel frame work thanks to powerful magnet with yoke
*1 Dustproof performance: Dust will not penetrate.
Waterproof performance: It will not be harmfully affected by water sprayed
from any direction.
*2 If you remove the sealing sticker next to the horizontal vial and adjust the
accuracy yourself, the accuracy we specified cannot be guaranteed.
The vertical vial and 45 ° vial cannot be adjusted.
