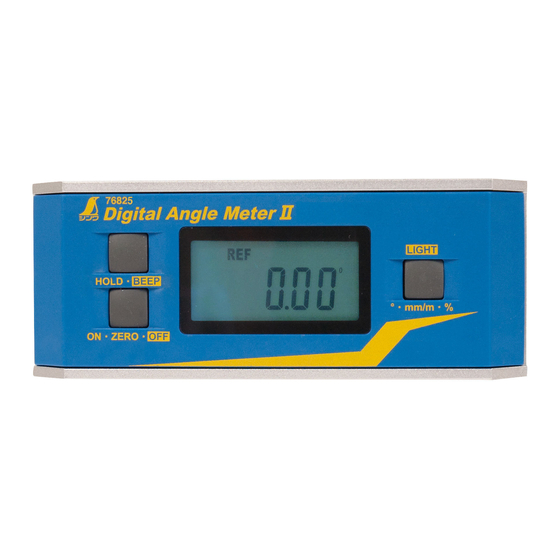

Shinwa Digital Angle Meter II Instruction Manual

Digital Angle Meter Ⅱ
Dust/Waterproof

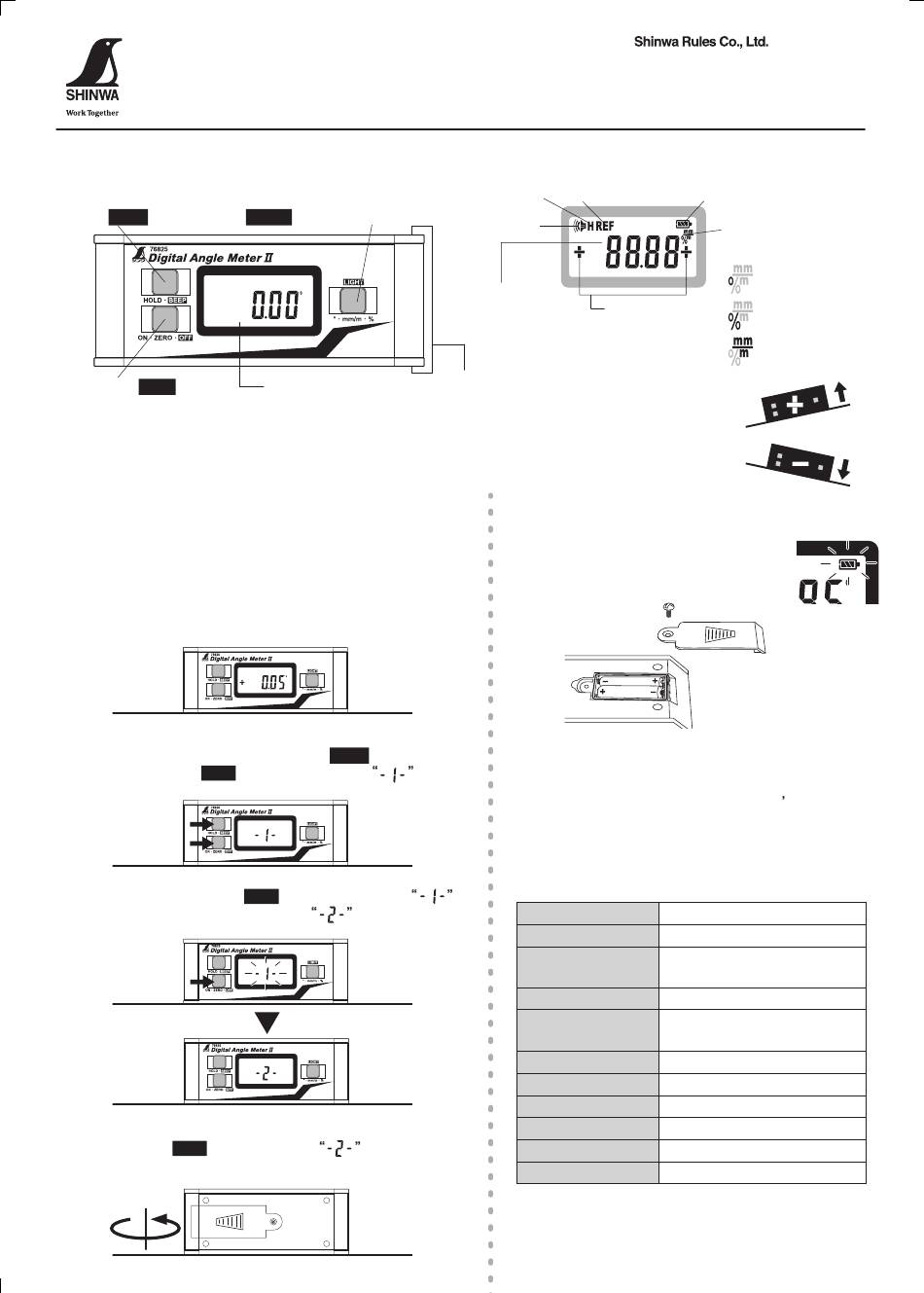

■Part Names
HOLD ・ BEEP button
ON ・ ZERO ・ OFF button
*1 When the device is turned upside down,
the measured value display will also rotate
so you can always read the numerical value
displayed.

■Calibration

*This device is calibrated at the time of shipment.
Should it receive a strong impact such as from being
dropped, or if it is affected by a magnetic field,
calibrate the device as follows.
1. Place the device on a surface as level as possible
and turn on the power.
A surface as level as possible
2. Simultaneously press the HOLD ・ BEEP button and
the ON ・ ZERO ・ OFF button to display .
Press
simultaneously
3. Press the ON ・ ZERO ・ OFF button once and
will blink and then change to .
4. Turn it around on the same surface and press the
ON ・ ZERO ・ OFF button. When blinks and
changes to the angle display, calibration is complete.
Turn around
Item Code 76825/Item Code 76826 (with Magnet)
LIGHT ° ・ mm/m ・ % button
Liquid crystal display
*2 When the right of the device (as seen from the
front) is on an increasing gradient, a + (plus)
will be displayed, and when it is on a decreasing
gradient, a − (minus) will be displayed.
HOLD icon REF icon
BEEP icon
*1
Measured
*2
value display
Tilt display
Measurement reference plane
■Replacing the Batteries
If the battery level is low, the
battery consumption icon will
appear on the LCD screen and
start blinking. Replace with new
batteries.
1. Unscrew the battery cover on the back and
remove the battery cover.
2. Replace the batteries with new batteries.
*Pay attention to the batteries orientation.
3. Replace the battery cover and tighten the
screws.
■Specifications
Measuring Range
Minimum Indication
Precision
Use Temperature
Power Source
Auto Power Off
Material
Accessory
Dust/water proof
Body Size
Weight
*3 Dustproof performance: Dust will not penetrate.
Waterproof performance: It will not be harmfully
affected by water jets from any direction.
https://www.shinwasokutei.co.jp/english/
3-18-21 Koya, Sanjo, Niigata, 955-8577 JAPAN
MADE IN CHINA
Instruction Manual
Battery consumption icon
Measurement unit
icon
: Angle
: Gradient
: Rise per 1 m
90° × 4 directions (360° )
0.05° , 0.1%, 1mm/m
0° , 90° : ±0.05°
Other Degrees: ±0.15°
− 10 ‒ 50℃
2x AAA Alkaline batteries
(Batteries included are for trial use only
and may not last as long)
5 minutes
ABS resin, aluminum
Holder case
IP65
*3
151 × 60 × 31 mm
280 g (including battery)
