Summary of Contents for LiteGear LITEMAT 2
- Page 1 Handbook and Quick-Start Guide...

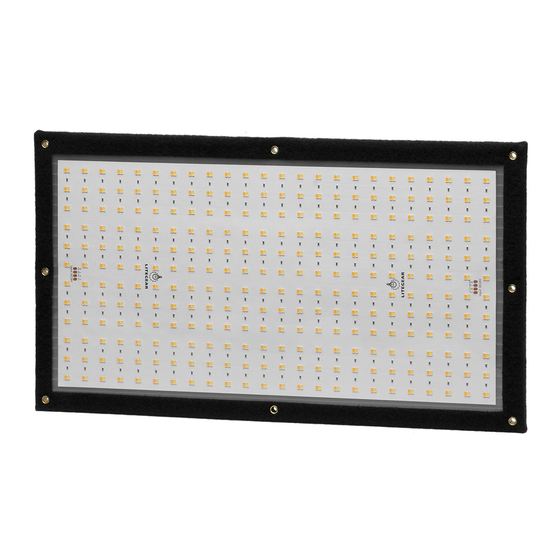

- Page 2 LED LITEMAT Introduction USER MANUAL FOR LITEMAT 1, LITEMAT 2, LITEMAT 2L, LITEMAT 3, LITEMAT 4 Congratulations on the purchase of your new LiteMat! LiteMat is a unique and lightweight LED lighting fi xture system designed for cinema, television, and HD video. Born out of the need for a color-correct light source that is lightweight yet durable, high quality yet economical, and simple yet cleverly fashioned, LiteMat takes a unique approach to lighting.
-
Page 3: Technical Information
There are five sizes of LED LiteMat in Tungsten, Daylite, and Hybrid CCT. 2573 lumens 2923 lumens How to reach us? Info: info@litegear.com (or your local dealer) 11.5 x 21 in. (291 x 531 mm) 2784 lumens Customer Service: +1 (818) 358-8542... - Page 4 Unique Poly Composite Material. It keeps the weight down while remaining strong. Center Mount. For use when mounting to a 5/8-in. (16 mm) Baby stand. Velcro®, Loop Fastener. LiteMat PCB. Genuine VHO Pro LEDs. Color-Correct and 95 CRI. © LITEGEAR INC. 2015 www.litegear.com...
- Page 5 Mate a BAR.M with a BAR.F and a PH3.F The Power Capacity tag, in addition to the Amps tag, helps with a PH3.M. identify the appropriate LiteDimmer and LitePower supply. Look for LOW, STD (standard), and HIGH. © LITEGEAR INC. 2015 www.litegear.com...
- Page 6 Attach accessories first. It is much easier to attach accessories such as the PolySkirt and the diffusers before hanging your LiteMat or mounting it into a stand. When unpacking, avoid using a knife as your LiteMat and accessories could be damaged! © LITEGEAR INC. 2015 www.litegear.com...
- Page 7 Next, securely fasten all provided Velcro® straps to the PolySkirt and LiteMat. Finish by ensuring that the Parasquare® Louver is securely fastened. Using the Parasquare® Louver without a diffuser may create irregular results and is not recommended. © LITEGEAR INC. 2015 www.litegear.com...
- Page 8 LiteMat. Continue by providing electrical connections to the LiteDimmer and power supply. Great care must be taken when mounting overhead. Hanging a LiteMat should be attempted by professionals only. © LITEGEAR INC. 2015 www.litegear.com...
- Page 9 AC power to the power supply. On the LiteDimmer, move the power switch to either the ON or LOW/ ALT position (depending on the LiteDimmer you are using) and adjust the control(s) to the desired level(s). Your LiteMat should now be operational. © LITEGEAR INC. 2015 www.litegear.com...
- Page 10 Begin by loosening the adjustable handle 180º while holding the LiteMat with your other hand. Next, pan, tilt, or rotate LiteMat to the desired position and tighten the adjustable handle. The handle can be adjusted to allow additional force by pulling out and rotating it into a new position. © LITEGEAR INC. 2015 www.litegear.com...
- Page 11 “everyday” damage due to environmental conditions. 12. What’s Next? Be sure to activate your warranty by logging on to http://www.litemat.com. Along with warranty information, we can keep you updated on what’s new with LiteMat! © LITEGEAR INC. 2015 www.litegear.com...
- Page 12 CA-HY-EXT-12F-FLAT-B LMA-FOUR-DIFF Available in Full, Half and Quarter Diff usion AA Battery Adapter Center Mount BA-BAA-ENC* LMA-MOUNT-S * Cigarette Auto Adapter CA-CIG-M-BAR-F* Parasquare Louver LMA-ONE-LC-GRID* D-Tap Adapter LMA-TWO-LC-GRID CA-DTAP-BAR-F* LMA-TWO-L-LC-GRID LMA-THREE-LC-GRID LMA-FOUR-LC-GRID * Item Pictured © LITEGEAR INC. 2015 www.litegear.com...
-
Page 13: Compatibility Chart
AA Battery Adapter BA-8AA-ENC √ √ √ √ √ √ √ √ √ √ = Available. √* = In Hybrid Mode only. √ √ = Two cables required for operation. √∆ = Available in 2015. © LITEGEAR INC. 2015 www.litegear.com... -
Page 14: Specifications
All LiteMat units feature a 120 degree beam angle and 50,000 hours of operation under typical conditions. Test equipment used for collecting specifications: Optical Equipment: UPR Tech MK350D and Spectra Cine IV “A” model. Power Equipment: Meanwell GS220A12-R7B at 12.0V DC. Camera Strobing: Propri- etary CineHZ Frequency Meter. © LITEGEAR INC. 2015 www.litegear.com... -
Page 15: Troubleshooting And Maintenance
If there is any exposed copper, insulate the affected area with electrical tape or heat shrink, or contact the LiteGear Repair Department for other suggestions. Also, inspect the connector on your LiteMat’s input lead for any physical damage. - Page 16 +1 (818) 358-8542 support@litegear.com www.litegear.com Please place your LiteMat serial label here. © 2015 LITEGEAR Inc. All rights reserved. LiteRibbon® is a registered trademarks of LiteGear Inc. © 2015 LITEGEAR Inc. All rights reserved. LiteGear , LiteMat , LiteDimmer , FauxFlo...
