OPERATING MANUAL

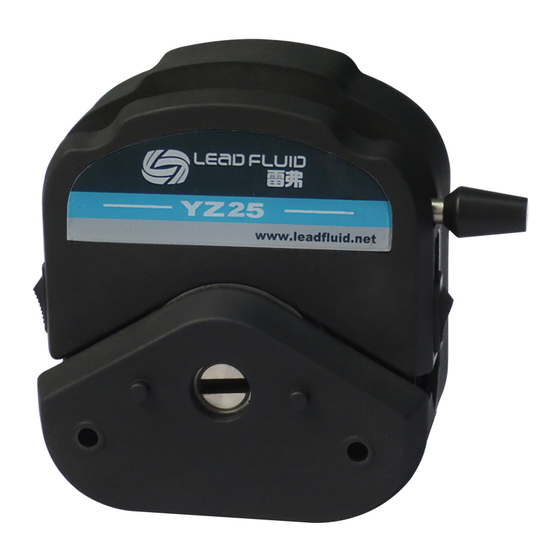

YZ，YT Series Easy-Load Pump Head
保定雷弗流体科技有限公司
BAODING LEAD FLUID TECHNOLOGY CO.,LTD
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YT15 and is the answer not in the manual?

Questions and answers

Related Manuals for LEAD FLUID YT15

Summary of Contents for LEAD FLUID YT15

  • Page 1 OPERATING MANUAL YZ，YT Series Easy-Load Pump Head 保定雷弗流体科技有限公司 BAODING LEAD FLUID TECHNOLOGY CO.,LTD...
  • Page 2 YZ，YT Series Easy-Load Pump Head Safety Caution Important Information  Be sure to read the instructions carefully before operation. Dangerous  Turn driver off before removing or installing tubing, don't get close to the rotation of wheel parts prevent fingers and clothing were involved in machinery agency! Warning ...
  • Page 3 BAODING LEAD FLUID TECHNOLOGY CO.,LTD. tubing length, import and export pressure using conditions change, please consult our engineers.  If long time no use the peristaltic pump, please lift the briquetting of pump head, release the tubing, to prevent the tube inner surface adhesion.

  • Page 4: Table Of Contents

    YZ，YT Series Easy-Load Pump Head Catalogue Brief Introductions .................. 4 Part name and function ................5 Method of application ................5 Install YZ15/YZ25/YT15/YT25 pump head ..........5 Install YZ35 pump head ................. 6 Loading tubing for YZ15/YZ25/YT15/YT25 pump head ......8 Loading tubing for YZ35 pump head ............

  • Page 5: Brief Introductions

    BAODING LEAD FLUID TECHNOLOGY CO.,LTD. Brief Introductions ● YZ, YT series pump heads are suitable for a variety of specifications tubes. Simple and easy to replace the tubing, compact structure and reasonable, which can realize multiple pump heas. PPS material of pump shell is resistance to organic solvents and other corrosive liquids, strong and durable.

  • Page 6: Part Name And Function

    YZ，YT Series Easy-Load Pump Head Part name and function 1. Flat shaft end: used to connect the drive coupling and cascade the pump heads. 2. Pull rod: when install tubing need to use it . 3. Sliding block: after press it, squeeze the tubing together with the roller device.

  • Page 7: Install Yz35 Pump Head

    BAODING LEAD FLUID TECHNOLOGY CO.,LTD. YZ15/25 pump head assembly drawing Install YZ35 pump head Setting the shaft protective (the picture below) into the flat shaft end of YZ35 pump head. shaft protective Mail：leifu@leadfluid.net WEB：www.leadfluid.net...
  • Page 8 YZ，YT Series Easy-Load Pump Head ● Put one side of the pump head flat shaft towards to drive, push on the groove of coupling in front of drive. Make the pump head in suitable position, put the pump head cling to the drive. ●...

  • Page 9: Loading Tubing For Yz15/Yz25/Yt15/Yt25 Pump Head

    BAODING LEAD FLUID TECHNOLOGY CO.,LTD. Loading tubing for YZ15/YZ25/YT15/YT25 pump head 1. Be sure the pump drive is turn off. 2. Pull the pull rod to the horizontal position, left the sliding block. Loading the suitable tube. ●YT15, YT25 pump heads only in the first installation tube need to a fine tuning knob adjustment.

  • Page 10: Loading Tubing For Yz35 Pump Head

    YZ，YT Series Easy-Load Pump Head ●Pull the pull rod to the horizontal position on the right side, to the sliding block down in place. ●YT15 / YT25 pump head tuning knob adjustment methods: adjust the pump speed within1-5rpm, slowly adjust the fine tuning knob clockwise to a continuous conveying liquid, when stop the pump without reflow.
  • Page 11 BAODING LEAD FLUID TECHNOLOGY CO.,LTD. ● Tension with both hands on both ends of the tube, make it natural stretch, no distortion, no deviation. ●Pull the pull rod to the horizontal position on the right side, to the sliding block down in place.

  • Page 12: Unloading Tubing

    YZ，YT Series Easy-Load Pump Head Unloading tubing 1. Be sure the pump drive is turn off. 2.Pull the pull rod to the horizontal position, left the sliding block. 3.YZ15 / YZ25 / YT15 / YT25 pump head should reference the tube installation graphical representation, raised on both sides of the tube clamp, remove the tube.

  • Page 13: Fault And Maintenance

    BAODING LEAD FLUID TECHNOLOGY CO.,LTD. Fault and maintenance The warranty and after-sales The product free warranty is one year. During the warranty period as a result of user's improper operation or man-made damage, the company warranty but need to charge a fee. More than warranty repair free of charge, charge materials and artificial cost.

  • Page 14: Fault Handling

    YZ，YT Series Easy-Load Pump Head Fault handling Solutions Remark Fault Whether the liquid viscosity is too higher, can seriously reduce the flow Note: fine-tuning rate is the viscosity is too high. knob Check the inlet line, whether the tubing 1. YT15 / YT25 inlet pressure is too large or entrance drive speed chose to jam.

  • Page 15: Pump Head Suitable Tubes And Tube Flow Rate

    BAODING LEAD FLUID TECHNOLOGY CO.,LTD. Pump head suitable tubes and flow rate YZ15/YT15 pump head flow rate reference: unit(ml/min) Tube No. Speed 0.1rpm 0.0060 0.0217 0.048 0.0800 0.1667 0.2833 30rpm 50rpm 100rpm 150rpm 350rpm 600rpm 1000 1700 Tube Speed 0.1rpm 0.38...
  • Page 16 YZ，YT Series Easy-Load Pump Head YZ25 pump head flow rate reference: unit(ml/min) Tube No. Speed 0.1rpm 0.17 0.28 30rpm 50rpm 100rpm 150rpm 350rpm 600rpm 1000 1700 YZ35 pump head flow rate reference: unit(ml/min) Tube Speed 1rpm 10rpm 30rpm 150rpm 2000 3200 350rpm 4667...

  • Page 17: Apperance Dimensions

    BAODING LEAD FLUID TECHNOLOGY CO.,LTD. YT25 pump head flow rate reference: unit(ml/min) Tube No Speed 100rpm 200rpm 1040 300rpm 1149 1500 400rpm 1143 1536 1850 500rpm 1500 1900 2700 600rpm 1700 2300 1000 2900 Apperance dimensions YZ-15/YZ25 Mail：leifu@leadfluid.net WEB：www.leadfluid.net...
  • Page 18 YZ，YT Series Easy-Load Pump Head YZ-35 YT15/YT25 TEL：0312-3250677 3250877 3250977 FAX：0312-3250877-804...

  • Page 19: Technical Parameters

    BAODING LEAD FLUID TECHNOLOGY CO.,LTD. Technical parameters YZ15 pump head Suitable drive: BT series，WT series 13#， 14#， 19#， 16#， 25#， 17#,18# （wall thickness Suitable tubes: 1.6mm，ID 0.8-7.9mm） Silicone ， Pharmed ， A-60-G,A-60-F,F5500A, Tube material: 2275，2475，3603 Speed range: Maximum 600 rpm.
  • Page 20 YZ，YT Series Easy-Load Pump Head YZ25 pump head Suitable drive: BT series，WT series Suitable tubes: 15#，24#（wall thickness 2.4mm，ID 4.8 & 6.4mm） Silicone ， Pharmed ， A-60-G,A-60-F,F5500A, Tube material: 2275，2475，3603 Speed range: Maximum 600 rpm. Flow rate Maximum 1700 ml/min range: Roller: 3 rollers，304SS material.
  • Page 21 BAODING LEAD FLUID TECHNOLOGY CO.,LTD. YT15 pump head Suitable drive: BT series，WT series Suitable tubes: 13#，14#，19#，16#，25#，17#,18#（wall thickness 1.6mm，ID 0.8-7.9mm） Tube material: Silicone， Pharmed， A-60-G,A-60-F,F5500A, 2275，2475，3603 Speed range: Maximum 600 rpm. Flow rate range: Maximum 2300 ml/min Roller: 4 rollers，304SS material.
  • Page 22 YZ，YT Series Easy-Load Pump Head YT25 pump head Suitable drive: BT series，WT series Suitable tubes: 15#，24#,35#,36#（wall thickness 2.4mm，ID 4.8,6.4,7.9,9.6mm） Silicone ， Pharmed ， A-60-G,A-60-F,F5500A, Tube material: 2275，2475，3603 Speed range: Maximum 600 rpm. Flow rate Maximum 2900 ml/min range: Roller: 4 rollers，304SS material. Shell material: PPS( black) Environment temperature: 0~40 , relative...
  • Page 23 BAODING LEAD FLUID TECHNOLOGY CO.,LTD. YZ35 pump head Suitable drive: WG series 73#， 82# （wall thickness 3.5mm， ID 9.7,13mm） Suitable tubes: Silicone ， Pharmed ， A-60-G,A-60-F,F5500A, Tube material: 2275，2475，3603 Speed range: Maximum 600 rpm. Flow rate Maximum 13L/min range: Roller: 3 rollers，304SS material.
  • Page 24 Add:Room 101, Building NO.3, Zhidian Start-up Base, Fuxing East Road, Baoding, China. Tel：086-312-3250677\3250877\3250977 Fax:086-312-3250877-804 E-mail:master@leadfluid.com Website:www.leadfluid.com...
