- Page 1 Original Instruction Manual Personnel Lock System SMART-LINE Manufacturer : deconta GmbH Im Geer 20, 46419 Isselburg Designation : Personnel Lock System SMART-LINE...
-
Page 2: Table Of Contents
Instruction manual Personnel Lock System SMART-LINE Table of Contents 1. Basic Safety Advice ......................3 2. Transport ..........................4 2.1. Delivery ............................4 2.2. Transport ............................4 2.3. Storage ............................4 3. Delivery Contents ....................... 4 4. ... -
Page 3: Basic Safety Advice
Instruction manual Personnel Lock System SMART-LINE The copyright of this instruction manual remains the property of deconta. This manual is intended for assembly, operation and maintenance personnel. It contains instructions and drafts of technical nature which may neither be distributed nor used in any unauthorised way for competitive purposes or passed on to others. -
Page 4: Transport
Personnel Lock System SMART-LINE 2. Transport 2.1. Delivery Unless agreed otherwise, the shower system is delivered from the deconta factory packed completely and securely for transport. Transport damage must be immediately documented following delivery by the supplier. Please note any damages on the consignment note. -
Page 5: Technical Description

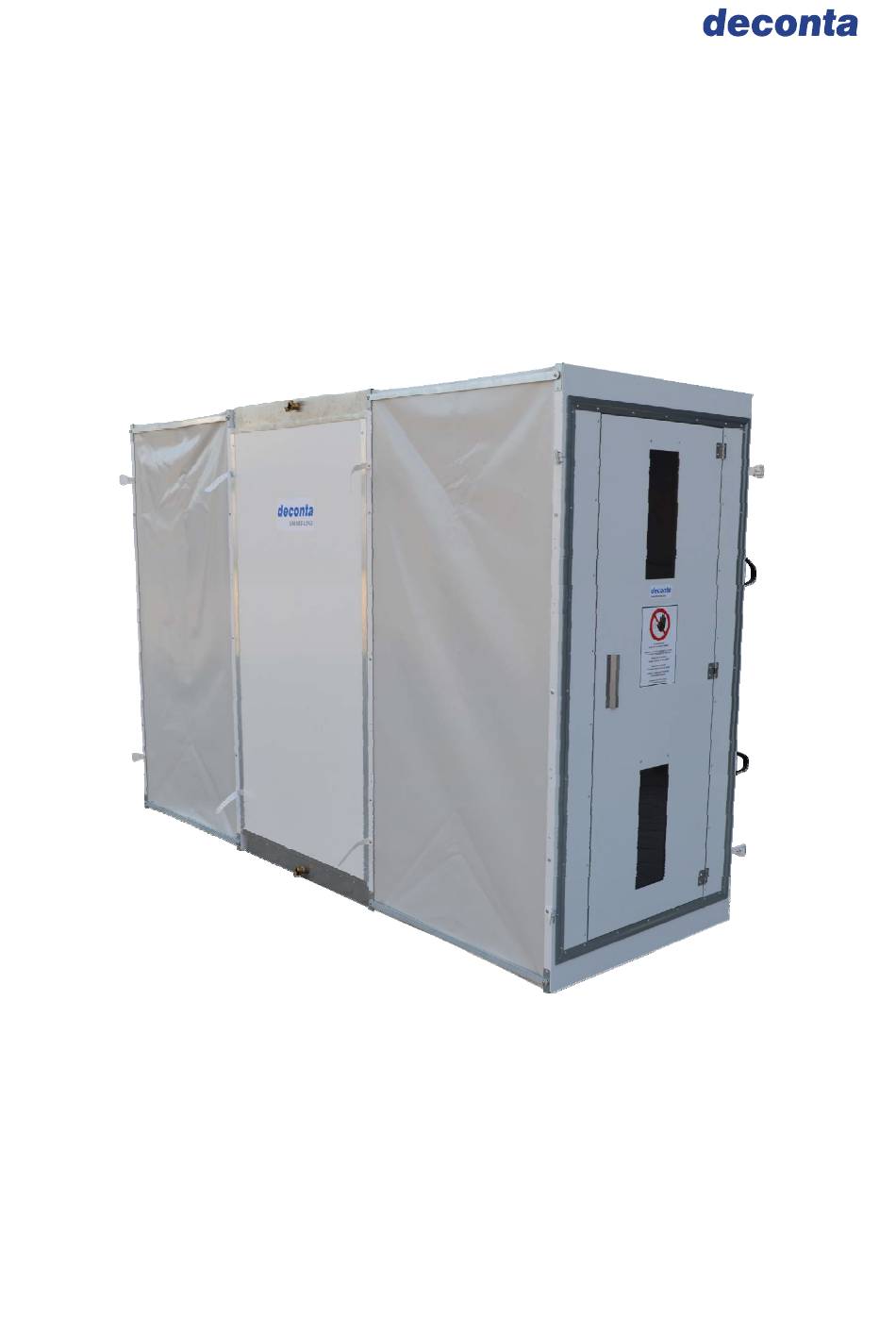

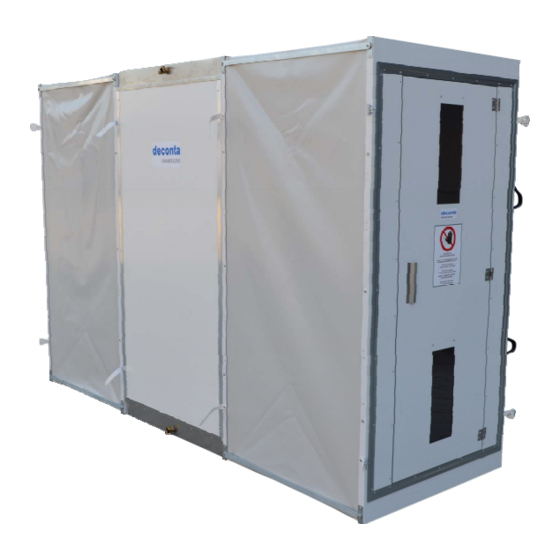

Instruction manual Personnel Lock System SMART-LINE 4. Technical Description 4.1. Unit Description Foldable personnel lock system of a combination of plastic and aluminium for the separation between contaminated and clean area. Can be used in small and cramped rooms, where no large shower systems can be installed. -
Page 6: Technical Data
Instruction manual Personnel Lock System SMART-LINE 5. Technical Data Dimensions per chamber: - Model 750: 750 x 750 x 2000 mm - Model 1000: 1000 x 1000 x 2000 mm - Weight 3-chamber personnel lock system Model 750: approx. 75 kg ... -
Page 7: Initial Operation / Assembly
Instruction manual Personnel Lock System SMART-LINE 6. Initial Operation / Assembly 6.1. Preperation Before assembling the personnel lockp system: the underground must be clean and even 6.2. Assembly Loosen the straps of the transport safety. Version 2 Page 7... - Page 8 Instruction manual Personnel Lock System SMART-LINE Pull the personnel lock chamber apart so that the PVC tarpaulin is stretched. Lock the clamping device in the roof and floor area. Version 2 Page 8...
- Page 9 Instruction manual Personnel Lock System SMART-LINE Hook the floor element shower under the guide profile of the personnel lock chamber and ensure that the profile snaps in correctly. guide profile guide profile Version 2 Page 9...
- Page 10 Instruction manual Personnel Lock System SMART-LINE 2. Build up the foldable chambers and place it on the shower tray. Place shower roof. Version 2 Page 10...
- Page 11 Instruction manual Personnel Lock System SMART-LINE Ensure that the shower roof snaps behind the profile of the chambers. Insert wall elements of the shower chamber into the guides of the floor element and at the same time ensure that the corner profiles snap behind the guide profile of the chambers.
- Page 12 Instruction manual Personnel Lock System SMART-LINE Raise the roof element slightly so that the wall element can snap into the guides. guide roof element Place the shower device on the GEKA connection in the roof. Version 2 Page 12...
-
Page 13: Maintenance And Care
Instruction manual Personnel Lock System SMART-LINE 7. Maintenance and Care Daily maintenance Check the water pipes for free flow Clean the personnel lock system area daily Clean the personnel lock system carefully after each end of shift ... -
Page 14: Declaration Of Conformity
Instruction manual Personnel Lock System SMART-LINE 8. Declaration of Conformity In accordance with the EC directives Machines/plants (2006/42/EC) Electromagnetic compatibility (89/336/EEC) Low voltage (2006/95/EC) The type of the machine/plant: Product / type designation: Personnel Lock System SMART-LINE is designed, constructed and manufactured in accordance with the above marked directive(s). Following harmonising standards apply: DIN EN 292, safety of machines, devices and plants DIN EN 60 204.1, electrical equipment for industrial machines...
