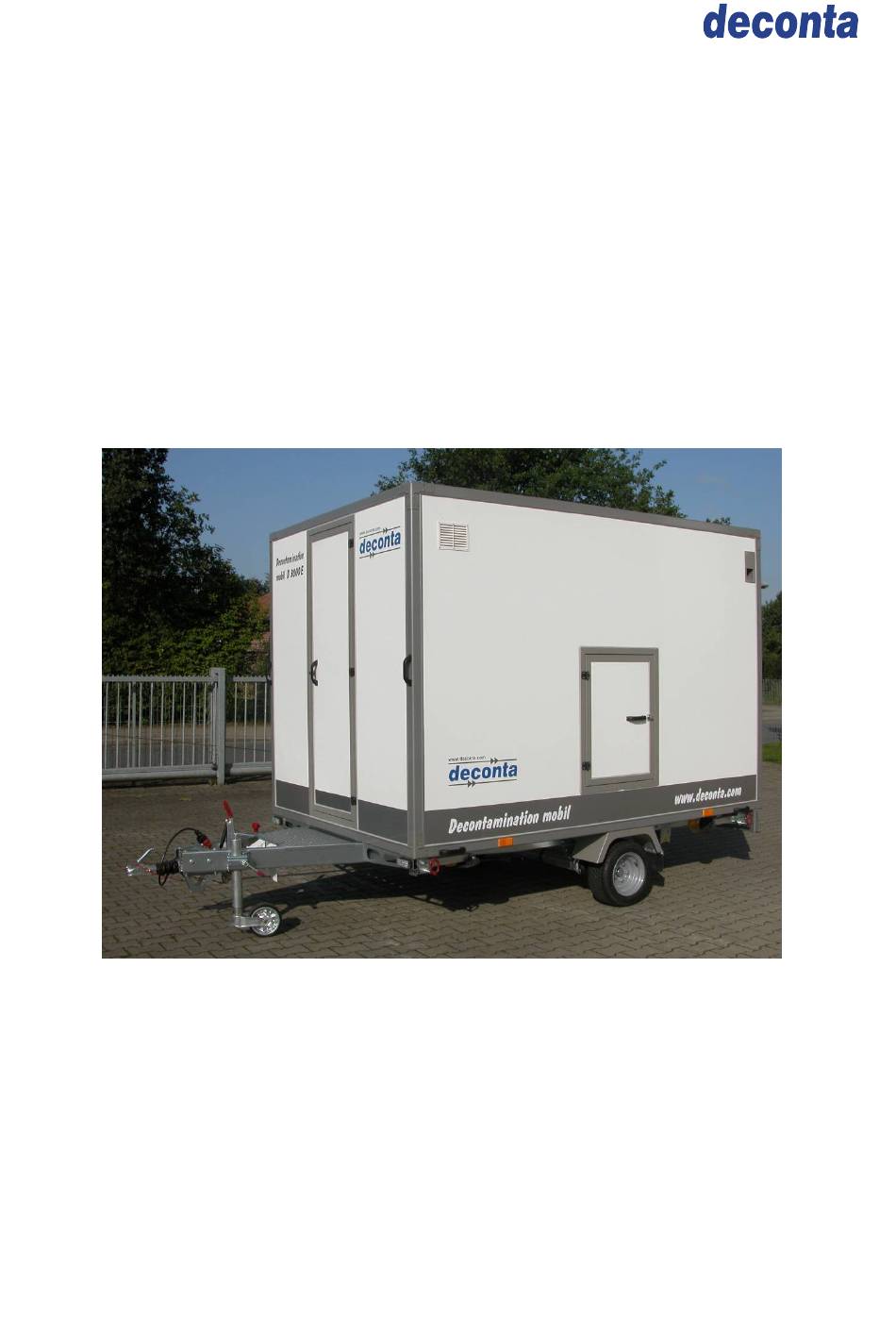

- Page 1 Guide book mobile lock decontamination mobile D 3000 / 4000 / 5000 Manufacturer : deconta GmbH Im Geer 20, 46419 Isselburg, Germany Denomination: decontamination mobile D 3000 / 4000 / 5000 Type-No. Serial-No. ………………...
-
Page 2: Table Of Contents
Guide book D 3000 / 4000 / 5000 Table of contents on Page Operation on road traffic General trailer description Controls before each journey Regular control and maintenance Wheels, tyres and wheel replacement Transport / towing, coupling and axle load Connection Uncoupling Reverse track... -
Page 3: Operation On Road Traffic
Guide book D 3000 / 4000 / 5000 1 Operation on road traffic 1.1 General trailer description Vehicle class: Trailer of the vehicle class O1 0 kg to 750 kg gross vehicle weight. Trailer of the vehicle class O2 750 kg to 3500 kg gross vehicle weight. Coupling system Tow ball coupling Ø... -
Page 4: Controls Before Each Journey
Guide book D 3000 / 4000 / 5000 1.2 Controls before each journey Has the trailer been controlled in regard to completeness, loose parts and intactness? Have the support stands been fully pulled in? Has the spherical head been locked audibly and visibly (see 1.6)? ... -
Page 5: Regular Control And Maintenance
Guide book D 3000 / 4000 / 5000 1.3 Regular controls and maintenance Axle After 1500 km or 6 months Have the axial play of the hub bearing checked and adjusted, if necessary. Every 10000 km or every 12 months ... -
Page 6: Wheels, Tyres And Wheel Replacement
The statement of the value of the tyre pressure applies to the cold tyres. The trailer is steadily adapted to the newest technical standard. It is possible that new tyres sizes are not considered in this chart. In this case, deconta provides you the newest values. -
Page 7: Transport/ Towing, Coupling And Axle Load
Guide book D 3000 / 4000 / 5000 1. 5 Transport/ towing, coupling and axle load The important for the choice of the towing vehicle and trailer are statements which are listed in the registration certificate and defined in the operation limits. -
Page 8: Uncoupling
Guide book D 3000 / 4000 / 5000 Caution: It is only coupled correctly when the green cylinder of the locking display becomes visible. Please mind that the inside of the coupling is not dirty and that the movable parts are smooth-running. Locking display 1.7 Uncoupling ... -
Page 9: Technical Description
Guide book D 3000 / 4000 / 5000 2 Technical description The mobile lock is a multi-chambers system which enables the gradual entry in a contaminated area as well as the leaving in various phases, without the spreading of fibres. In this mobile lock system, a negative pressure is produced in order to prevent the entry in other rooms or outdoors of the asbestos fibres, whether through an air exchange or spreading through e.g. -
Page 10: Initial Operation
Guide book D 3000 / 4000 / 5000 3 Initial operation 3.1 Electric-Version 3.1.1 Energy supply The electric supply takes place from the outside at the connection "Supply" (230 Volt). If the supply has occurred, the socket inside the vehicle is activated. Power supply –... -
Page 11: Room Heating
Guide book D 3000 / 4000 / 5000 Switch on the water heating. The water in the tank is heated up to the chosen temperature. When the water in the tank has reached the required temperature, fresh water is automatically added. -
Page 12: Negative Pressure Plant
Guide book D 3000 / 4000 / 5000 3.1.4 Negative pressure plant (optional equipment) To avoid the danger of the spreading of dust out of the dirty area to the clean area, all rooms are ventilated. In the dirty area, the air is sucked in and blown out through P3 filters. -
Page 13: Shower
Guide book D 3000 / 4000 / 5000 3.1.5 Shower The switch shower in the technical room switches the shower water pump ready for use. The shower procedure can only be started and stopped via the switch „Shower procedure Start“. Shower Shower procedure Start 3.1.6 Sewage water filtering plant (optional equipment) - Page 14 Guide book D 3000 / 4000 / 5000 Filter sizes: Prefilter 10“ :220 Finefilter 10“ 1 (other sizes on demand) max. medium temperature : 50°C at 4bar Finefilter Prefilter Please note: If the switch sewage water filtering plant is not activated, no sewage water filtering takes place during the shower procedure.
-
Page 15: Filter Change
Guide book D 3000 / 4000 / 5000 3.1.7 Filter change filter change only when device is deactivated dismount the dirty filters in a wet state in order to avoid the release of filter dust only use authorized filters ... -
Page 16: Electric-Version With Forced Locking
Guide book D 3000 / 4000 / 5000 3.2 Electric-Version with forced locking The general start-up is done as described in item 3.1. 3.2.1 Activation of the forced locking The control of the forced locking is to be found in the clean area. Key switch Make sure both doors to the shower room are closed. - Page 17 Guide book D 3000 / 4000 / 5000 When entering the shower cabin from the dirty area the forced locking is activated. Press green key on door case to shower cabin, door can be opened. Enter shower cabin ...
-
Page 18: Diesel-Version
Guide book D 3000 / 4000 / 5000 3.3 Diesel-Version 3.3.1 Energy supply The electric supply takes place from the outside at the connection "Supply" (230 Volt). If the supply has occurred, the sockets inside the vehicle are activated. The autarkic version enables an integrated on-board battery to make use of all consumers without external power supply. - Page 19 Guide book D 3000 / 4000 / 5000 Switch on the water heating. Make sure the Diesel jerry can is sufficiently filled. The Diesel-Water heater starts. Due to the length of the hose from canister to the warm water heater, it might happen that not enough diesel reaches the burner.
-
Page 20: Room Heating
Guide book D 3000 / 4000 / 5000 3.3.3 Room heating The space heater can be switched on/off in the plant room. Space heater 3.3.4 Negative pressure plant (optional equipment) To avoid the danger of the spreading of dust out of the dirty area to the clean area, all rooms are ventilated. -
Page 21: Shower
Guide book D 3000 / 4000 / 5000 3.3.5 Shower The switch shower in the technical room switches the shower water pump ready for use. The shower procedure can only be started and stopped via the switch „Shower procedure Start“. Shower Shower procedure start 3.3.6 Sewage water filtering plant (optional equipment) - Page 22 Guide book D 3000 / 4000 / 5000 Filter sizes: Prefilter 10“ :220 Finefilter 10“ 1 (other sizes on demand) max. medium temperature : 50°C at 4bar Finefilter Prefilter Please note: If the switch sewage water filtering plant is not activated, no sewage water filtering takes place during the shower procedure.
-
Page 23: Filter Change
Guide book D 3000 / 4000 / 5000 3.3.7 Filter change filter change only when device is deactivated dismount the dirty filters in a wet state in order to avoid the release of filter dust only use authorized filters ... -
Page 24: Gas-Version
Guide book D 3000 / 4000 / 5000 3.4 Gas-Version 3.4.1 The electric supply takes place from the outside at the connection "Supply" (230 Volt). If the supply has occurred, the sockets inside the vehicle are activated. The autarkic version enables an integrated on-board battery to make use of all consumers without external power supply. -
Page 25: Water Supply Autarkic (Option)
Guide book D 3000 / 4000 / 5000 3.4.3 Water supply autarkic (optional equipment) Connector fresh water Service hatch Short hose Long hose Both hoses (short and long) are to be routed from the control room through the service hatch to the outside. Connect the short hose to the connector fresh water. Put the longer hose into a filled water canister. -
Page 26: Negative Pressure Plant
Guide book D 3000 / 4000 / 5000 Inspection window Slide control / Ignition button Stopcock Open stopcock Move slide control / Ignition button at the gas fired boiler onto ignition symbol Press ignition button and keep it down ... -
Page 27: Shower
Guide book D 3000 / 4000 / 5000 Through the fresh air openings, the shower and the clean area are also ventilated. The fresh air openings have been scaled in such a way that a pressure drop prevails going from the dirty area to the clean area. 3.4.6 Shower The showering procedure can be started and stopped by the mixer tap. - Page 28 Guide book D 3000 / 4000 / 5000 Filter sizes: Prefilter 10“ :220 Finefilter 10“ 1 (other sizes on demand) max. medium temperature : 50°C at 4bar Finefilter Prefilter Please note: If the switch sewage water filtering plant is not activated, no sewage water filtering takes place during the shower procedure.
-
Page 29: Filter Change
Guide book D 3000 / 4000 / 5000 3.4.8 Filter change filter change only when device is deactivated dismount the dirty filters in a wet state in order to avoid the release of filter dust only use authorized filters ... -
Page 30: Equipment And Options
Guide book D 3000 / 4000 / 5000 4 Equipment and Options Standard D 3000 basic version with ball coupling for tow-bar Dimension 4360 x 2080 x 2530 mm (L x W x H) Body work 3000 x 2005 x 2050 mm (L x W x H) ... - Page 31 Guide book D 3000 / 4000 / 5000 D 4000, extension 1 Meter, bodywork 3880 x 2005 x 2050 mm (L x W x H), dimension 5240 x 2080 x 2530 mm (L x W x H) D 5000, extension 2 Meter, bodywork 5000 x 2005 x 2050 mm (L x W x H), dimension 6360 x 2080 x 2530 mm (L x W x H), above 1300 kg only with tandem carriage ...
-
Page 32: Spare Parts
Guide book D 3000 / 4000 / 5000 5 Spare parts Fixing bracket for wheel chock AU862 Wheel chock AU861 Clamp AU1225 Support wheel AU1222 Position lamp AE1830 support AU2830 Bigfoot for support AU2946 Handle AU457 Door lock BO5507 Registration plate light BE5949 Rear light, right AE1833... - Page 33 Guide book D 3000 / 4000 / 5000 Fresh water hose BU1504a Sewage water hose BU1504 Geka-connection Set ½“ BO2266 Car jack (Option) 484011 Geka-connection Set ¾“ BO4616 Spare tyre (Option) 484010 Picture shows Electro-Version Power supply cable BE2264 Hand crank AU988 Wheel key (Option) 484012...
- Page 34 Guide book D 3000 / 4000 / 5000 Fresh water hose BU1504a Geka-connection Set ½“ BO2266 Sewage water hose BU1504 Geka-connection Set ¾“ BO4616 Spare tyre (Option) 484010 Car jack (Option) 484011 Picture shows Diesel-Version Power supply cable BE2264 Hand crank AU988 Diesel jerry can AU1930...
- Page 35 Guide book D 3000 / 4000 / 5000 Spare tyre (Option) Power supply cable 484010 BE2264 Sewage water hose BU1504 Fresh water hose BU1504a Lashing strap AU1599 Picture shows Gas-Version Car jack (Option) 484011 Adapter AU2962 Pressure regulator AU2963 Picture shows Gas-Version Gas fired boiler AU2931 Fresh water pump...
- Page 36 Guide book D 3000 / 4000 / 5000 Hand shower AU184 Joint piece AU335 Wall pivot AU334 Shower hose AU957 O-Ring AU197 Filter 1µ AU415 Cap nut Soap dish AU252 BO5399 Filter glas AU256 BO5397 Fold-away basin Filter housing cap (Option) AU32 484006...
- Page 37 Guide book D 3000 / 4000 / 5000 Hooks BO3949 Filter lid AU1319 Filter P3 Trash bag AU205 BO2711 Bench BO5329 stepladder AU2693 Seite 37...
-
Page 38: Technical Data
Guide book D 3000 / 4000 / 5000 Key Double-bit AU389 AU1045 Breakdown spray AU2745 6 Technical Data 6.1 Dimensions 3120 - 6120 2080 3000 - 6000 2000 4360 - 6360 Seite 38... -
Page 39: Circuit Vehicle Lightning
Guide book D 3000 / 4000 / 5000 6.2 Circuit vehicle lighting (for all versions identical) Seite 39... -
Page 40: Connection Diagram Plug
Guide book D 3000 / 4000 / 5000 6.3 Wiring diagram plug Contact- Function Cable Cable cross number colour section Direction indicator, left yellow 1,5 mm Rear fog light blue 1,5 mm Mass (contacts 1-8) white 1,5 mm Direction indicator, right green 1,5 mm Taillight right, shape light, marker light... -
Page 41: Circuits Vehicle Technology Electro-Version
Guide book D 3000 / 4000 / 5000 6.4 Circuits vehicle technology Electric-Version Seite 41... - Page 42 Guide book D 3000 / 4000 / 5000 Seite 42...
-
Page 43: Circuit S Vehicle Technology Electro-Version With Forced Locking
Guide book D 3000 / 4000 / 5000 6.5 Circuits vehicle technology Electric-Version with forced locking Seite 43... - Page 44 Guide book D 3000 / 4000 / 5000 Seite 44...
- Page 45 Guide book D 3000 / 4000 / 5000 Seite 45...
-
Page 46: Circuits Vehicle Technology Diesel-Version
Guide book D 3000 / 4000 / 5000 6.6 Circuits vehicle technology Diesel-Version Seite 46... - Page 47 Guide book D 3000 / 4000 / 5000 Seite 47...
-
Page 48: Circuits Vehicle Technology Gas-Version
Guide book D 3000 / 4000 / 5000 6.7 Circuits vehicle technology Gas-Version Seite 48... - Page 49 Guide book D 3000 / 4000 / 5000 Seite 49...
-
Page 50: Efficiency Of The Sewage Water Filtration
Guide book D 3000 / 4000 / 5000 6.8 Efficiency of the sewage water Experiment: Filter separation wrapping cartridge 1 Micrometer Diameter in Micrometer 10 11 12 13 14 15 16 17 Measuring Diameter % Efficiency point 0,77 84,3 0,97 90,4 1,22 93,5... -
Page 51: Operation Time On Battery
Guide book D 3000 / 4000 / 5000 7 Operation time on battery The operating time on battery can be calculated with help of following data, whereas the result can only be approximate because the operating time depends additionally on other factors such as surrounding temperature, loading state and age of the battery. -
Page 52: Declaration Of Conformity
D 3000 / 4000 / 5000 8 Declaration of conformity Chassis checked according to §21 StVZO Installations in compliance with: EG-declaration of conformity deconta GmbH Im Geer 20 D-46419 Isselburg Germany Product: D 3000 / D 4000 / D 5000...
