  • Page 1 MicroAire LipoTower System Instructions for Use...

  • Page 2: Applicable Part Numbers

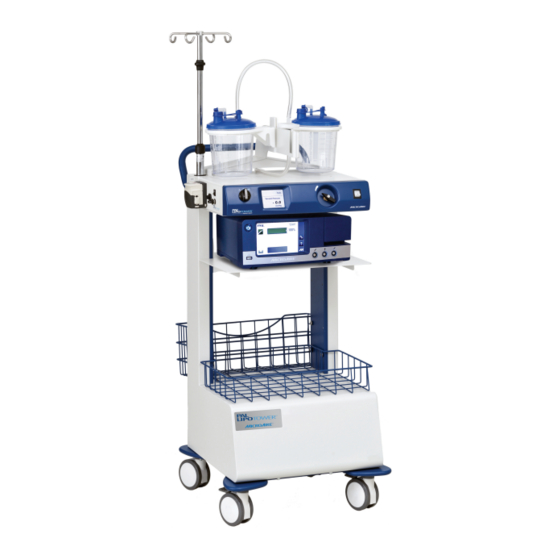

    The MicroAire LipoTower System is a device intended for aesthetic body contouring. INDICATIONS FOR USE The MicroAire LipoTower System is indicated for use in the following surgical specialties when the fragmentation, emulsification and aspiration of soft tissue is desired: •...

  • Page 3: Symbol Definitions

    IFUs. This IFU addresses primarily the operation, maintenance cleaning and sterilization procedures applicable to the MicroAire LipoTower System. The MicroAire LipoTower System can be configured to meet the requirements of an individual surgeon. See SETUP section for details on system configuration.
  • Page 4 WARNING: Explosion hazard. Do not use in the presence of flammable anesthetics or oxygen. WARNING: The MicroAire LipoTower System is heavy, weighing approximately 190 pounds. Use the proper equipment to lift the system if required. WARNING: Flat shelving capacity – 6.8 kg (15lb) maximum safe capacity. Do not exceed.
  • Page 5 NOTE: The MicroAire LipoTower System should only be used with compatible FDA cleared tubing, handpieces and cannulas. NOTE: The MicroAire LipoTower System has been tested for sound level and does not exceed 70 dB(A). IM-LIPOTOWER Rev G...

  • Page 6: Lcd Screen

    16. TUMESCENT PUMP SPEED ADJUSTMENT KNOB 17. TUMESCENT PUMP FOOT SWITCH CONNECTION 18. TUMESCENT PUMP MODULE • Standard on model ASP-1021 only. To add module, use REF ASP-TUM. 19. SHELF • Supports MicroAire electric consoles (REF 1020/1025, REF 5020/5025) IM-LIPOTOWER Rev G...

  • Page 7: Technical Description

    CAUTION: The Hospital Grade Receptacle has maximum current limit of 3A. Do not exceed. CAUTION: This panel is in place for safety. Only UL-approved, PAL-related MicroAire cables are to be used to connect to the receptacles within the system. Ensure cover is securely attached before connecting power.
  • Page 8 Tumescent Switch is in the ON position. (Figure 16) Figure 15 - Connect Foot Figure 16 - Connect Foot Switch to rear of cart to Switch to side of cart to control vacuum pumps control infiltration IM-LIPOTOWER Rev G...

  • Page 9: Operation

    4. Close the lid on the Tumescent Pump to compress the Infiltration Tubing within the pump. OPERATION WARNING: Prior to use, all MicroAire Power Assisted Lipoplasty System subsystem manuals should be reviewed for important warnings and instructions for use. WARNING: Prior to use, all system components should be inspected to detect any damage, excessive wear, corrosion or malfunction.

  • Page 10: Home Screen

    NOTE: If “FOOT SWITCH” is selected, ensure that the foot switch cable is securely connected to its receptacle located on the lower rear of the MicroAire LipoTower System. Ensure that the foot switch pedal is located within reach of the operator.
  • Page 11 MicroAire LipoTower System. Once the MicroAire LipoTower System is powered up, and its appropriate cables, tubing, waste canisters and biofilter properly connected, and its mode of operation selected, and once the REF PAL-650 or PAL-600 and the REF 1020/1025 or REF 5020 have been properly powered and connected in accordance with their respective IFUs, surgical procedures can be started.

  • Page 12: Troubleshooting

    FOOT SWITCH WILL NOT OPERATE • Ensure that the foot switch connection tube is fully seated in its receptacle at the lower rear of the MicroAire LipoTower System. • Ensure that the vacuum pump CONTROL SWITCH is in the FOOT SWITCH position.

  • Page 13: Preventive Maintenance

    Atmospheric pressure limits Relative humidity limits WARNING: If there is condensation present on the MicroAire LipoTower System, DO NOT use it. Wait for the unit to come to room temperature and for condensation to evaporate before use. WARNING: If the MicroAire LipoTower System is operated at high elevation or low atmospheric pressure, aspiration performance may be adversely affected.

  • Page 14: Return Procedure

    The MicroAire LipoTower System may be interfered with by other equipment with CISPR emission requirements. CAUTION: The pin of the BNC connector of the MicroAire LipoTower System should not be touched and connection to this port should not be made unless ESD precautionary procedures are used.
  • Page 15 Table 1 (IEC 60601-1-2 Table 201) Table 2 (IEC 60601-1-2 Table 202) IM-LIPOTOWER Rev G...
  • Page 16 Table 3 (IEC 60601-1-2 Table 204) Table 4 (IEC 60601-1-2 Table 206) IM-LIPOTOWER Rev G...
  • Page 17 NOTES IM-LIPOTOWER Rev G...
  • Page 18 NOTES IM-LIPOTOWER Rev G...
  • Page 19 NOTES IM-LIPOTOWER Rev G...
  • Page 20 M MicroAire Surgical Instruments LLC 3590 Grand Forks Blvd Charlottesville, VA 22911 USA Telephone (800) 722-0822 (434) 975-8000 (800) 648-4309 (434) 975-4131 www.microaire.com © 2017 MicroAire Surgical Instruments LLC | IM-LIPOTOWER Rev. G, Printed in the USA...
