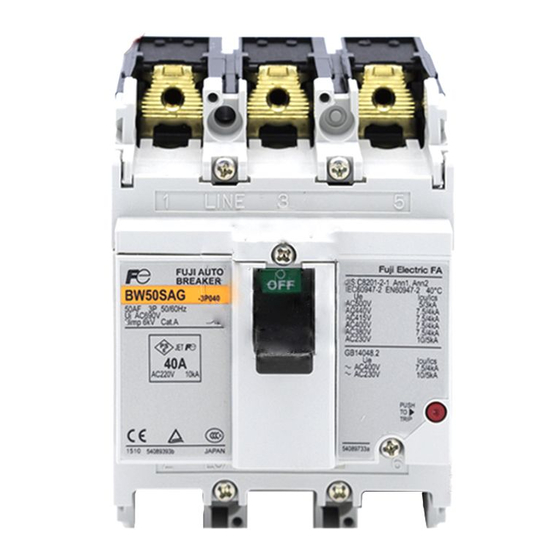

Fuji Electric BW100EAG Technical Information
Molded case circuit breakers & earth leakage circuit breakers
