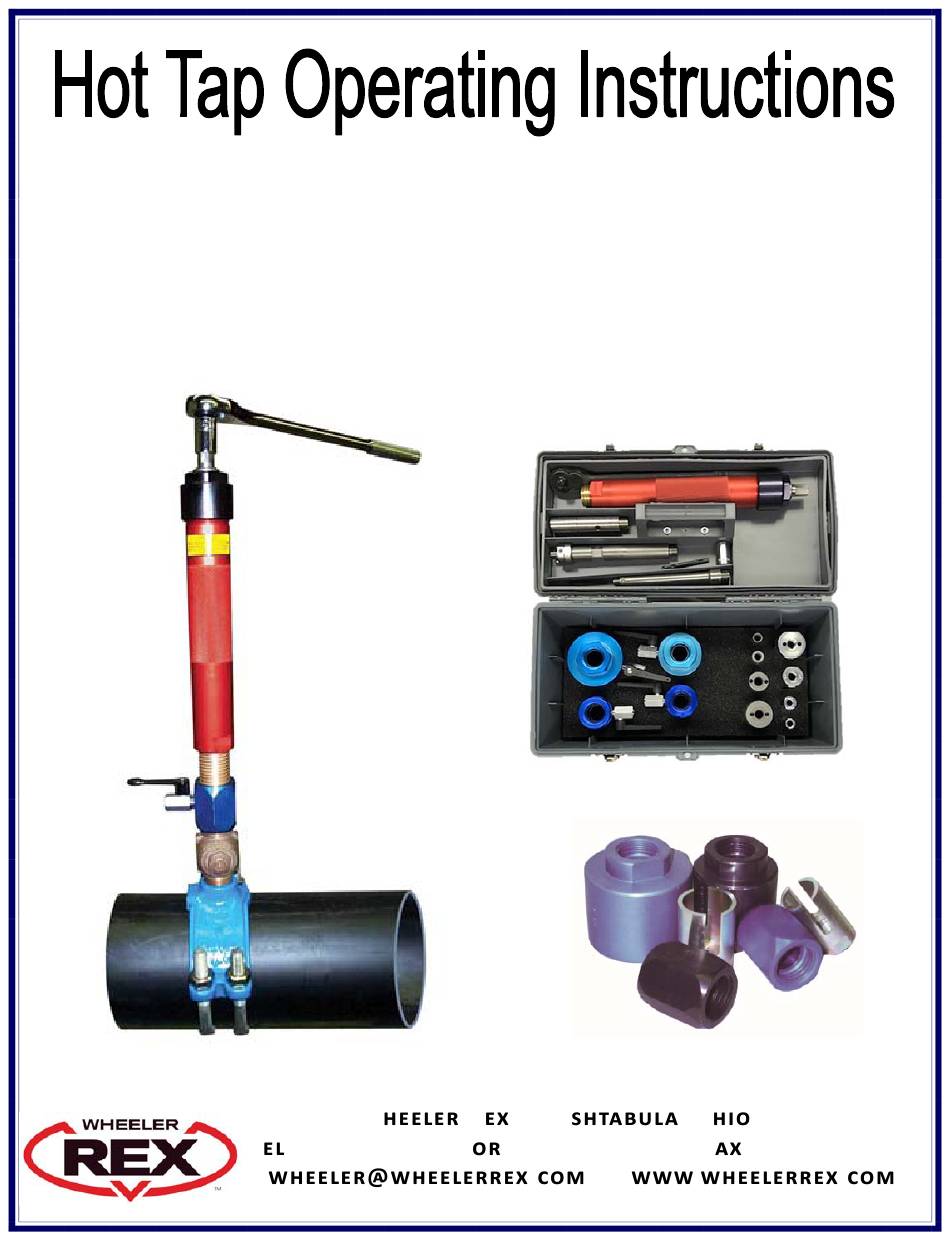

- Page 1 8100, 8200, 8300 8201, 8202, 8203, 8204, 8205, 8206 ‐R ● A T : 800‐321‐7950 440‐998‐2788 ● F : 440‐992‐2925 ● 02132018 ...
- Page 2 3/4”, 1”, 1-1/4” NSTRUCTIONS FOR DIAMETER IGURE A PINDLE LEEVE CREW DAPTER DAPTER LUSH ALVE ATCHET HOWN OCKET HOWN IGURE 1. Attach service saddle to the pipe according to the manufacturer’s specs 2. Attach corporation stop to saddle. Ensure that it is tight and in the open position.
- Page 3 IGURE 1. S ELECT THE PROPER VALVE , (NPT, CTS BSPT ADAPTER CONNECTIONS AVAILABLE 2. S ELECT THE PROPER SHELL CUTTER 1 FOR THE PIPE MATERIAL TO BE CUT HELL CUTTERS FOR STEEL COPPER DUCTILE IRON AND PLASTIC 3. S ELECT THE PROPER SHAFT OR COMBINATION OF SHAFTS TO ALLOW THE PROPER STROKE LENGTH TO...
- Page 4 5 1. S (“B” F LIDE LEEVE DOWN TO ENGAGE THE THREADS OF THE HOT TAP FEED SCREW 2. T LEEVE CLOCKWISE UNTIL SHELL CUTTER TOUCHES PIPE 3. U SING THE SOCKET AND RATCHET ROTATE THE HOT TAP (“A”F SPINDLE CLOCKWISE WHILE CONTINUALLY APPLYING PRESSURE...
- Page 5 IGURE 1. T URN ADAPTER VALVE TO “ ” POSITION 2. W ITH A WRENCH TURN THE CORPORATION STOP VALVE “ ” TO THE POSITION 3. R EMOVE ADAPTER FROM CORPORATION STOP...
- Page 6 1-1/2” 2” NSTRUCTIONS FOR DIAMETER 1. I NSERT PILOT DRILL INTO ARBOR E SURE TO ALIGN FLAT FOR SET 1-1/2” SCREW AND TIGHTEN WITH ALLEN KEY F YOU HAVE THIS STYLE 2” ARBOR REMOVE THREADED INSERT AND WASHER FROM SHELL CUTTER 2.
- Page 18 OUTLET SIDE CAN HAVE A VARIETY OF END CONNECTIONS: MUELLER 110 COMPRESSION CONNEC- TION MUELLER INSTA-TITE CONNECTION COPPER FLARE INSIDE IRON PIPE OUTSIDE IRON PIPE INCREASING IRON PIPE MUELLER COUPLING THREADS COMPRESSION CONNECTION CONNECTION COPPER FLARE CONNECTION...
- Page 19 Corporation Stops & Adapters Mueller ¾” Copper Flare & 110 Compression Conn. CTS (Corp Stops) have the same threads. Mueller 1” Copper Flare & 110 Compression Conn. CTS (Corp Stops) have the same threads. ¾” Mueller 110 Compression Conn. CTS (Corp Stop) ...
- Page 22 Wheeler‐Rex ● Ashtabula, Ohio Tel: 800‐321‐7950 or 440‐998‐2788 ● Fax: 440‐992‐2925 wheeler@wheelerrex.com ● www.wheelerrex.com ...
