- Page 1 Digital Ohmmeter DO4000 Series Operating Instructions Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com...
- Page 2 Digital Ohmmeter DO4000 Series Operating Instructions Limited Warranty & Limitation of Liability CROPICO guarantees this product for a period of 1 year. The period of warranty will be effective at the day of delivery. (c) Copyright 2008 All rights reserved. Nothing from this edition may be multiplied, or made...
- Page 3 Digital Ohmmeter DO4000 Series Operating Instructions Disposal of Old Product This product has been designed and manufactured with high quality materials and components that can be recycled and reused. When the crossed out wheelie bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
-
Page 4: Table Of Contents
Digital Ohmmeter DO4000 Series Operating Instructions Contents Page Safety Introduction Measuring Principle Case Design Maintenance Battery Replacement Technical Data Description of Controls Methods of Measurement 9.1 Ohmmeter Connections 10. Power-up 11. Measurement 12. Protection 13. Temperature Compensation (Model 4001 Only) 14. -
Page 5: Safety
Digital Ohmmeter DO4000 Series Operating Instructions IMPORTANT NOTE Instruments are delivered ready for immediate use; no extras are required. Supplied Accessories: One set of test leads One set non rechargeable batteries One copy of Operating Instructions (English) When unpacked, inspect for physical damage and report any defects immediately in writing, retaining packaging materials for inspection. -
Page 6: Measuring Principle
Digital Ohmmeter DO4000 Series Operating Instructions 3. Measuring Principle The measurement is true 4 terminal, using the Kelvin principle. A stable current is produced across the resistance to be measured via the I terminals, and the voltage drop across the Rx is measured at the U terminals. This potential drop is then compared against the voltage drop across internal standards;... -
Page 7: Battery Replacement
Digital Ohmmeter DO4000 Series Operating Instructions 6. Battery Replacement Battery The 4000 series ohmmeters are battery operated, the batteries may be easily and quickly replaced, the 5 AA cells are housed in a cassette and either manganese oxide or NiMHd rechargeable types may be used. - Page 8 Disposal of Batteries Care should be taken when disposing of the batteries, they may be returned to Cropico carriage paid for safe disposal. Any regulations and directions applying to the disposal of such material must be applied. Do not dispose of battery in fire.
-
Page 9: Technical Data
Digital Ohmmeter DO4000 Series Operating Instructions 7. Technical Data 15mm 4 digit, LCD 15 mm height with automatic decimal point Digital Display units and error warning lamps Working temperature 0...+40°C rel. humidity max. 80% non condensing Calibration temperature 20°C Storage temperature -20°C ... -
Page 10: Description Of Controls

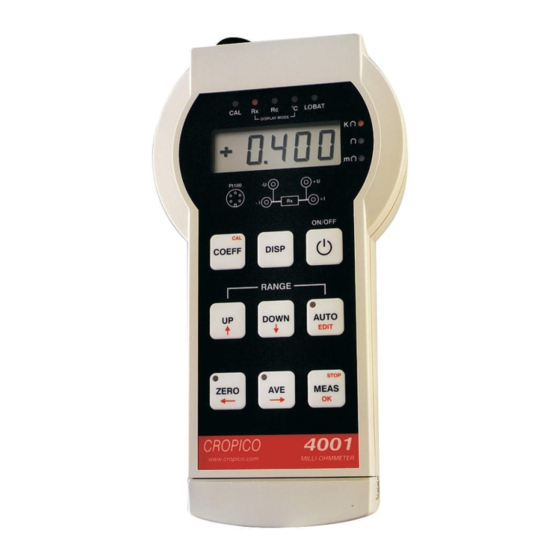

Digital Ohmmeter DO4000 Series Operating Instructions 8. Description of Controls Fig. 8-1 Description of Controls Enables the calibration mode Selects and edits temperature compensation Coefficients (Model 4001 Only) - Page 11 Digital Ohmmeter DO4000 Series Operating Instructions Toggles display between temperature and resistance measurement Up key selects next highest measuring range. It also increases the selected digit, used for setting coefficients and for entering calibration code. Switches unit ON and OFF Down Key selects next lowest measuring range.
- Page 12 Digital Ohmmeter DO4000 Series Operating Instructions Range Selection: The 6 ranges may be selected manually by simply pressing the UP or DOWN keys. The selected range will be indicated by an LED; over-range will be indicated by the display reading - - - -.
-
Page 13: Methods Of Measurement
Digital Ohmmeter DO4000 Series Operating Instructions 9. Methods of Measurement 9.1 Ohmmeter Connections The Digital Ohmmeter types 4000, 4001 and 4002 employ a four-wire method of measurement, i.e. it is necessary to make four connections to the resistor under test. The instrument is supplied with four leads terminated with small Kelvin clips. - Page 14 Digital Ohmmeter DO4000 Series Operating Instructions Connection to Cable Joint Connections to Current Shunt Connections to Stud Terminals Measurement with duplex handspikes Fig. 8.3 Various types of resistors...
-
Page 15: Power-Up
2 seconds. The display will typically read "P 1". Should the internal checks indicate an error, then the display will read "FAIL". The unit should be returned to Cropico or its agent for rectification if this error message appears. -
Page 16: Protection
Digital Ohmmeter DO4000 Series Operating Instructions Measuring Inductive Circuits When measuring inductive circuits such as motor winding or transformers it is important to set the DO4000 / DO4001 / DO4002 in the following mode: Auto range off Auto average off Continuous measurement on To select the range use the _ up _ down keys. -
Page 17: Calibration Process
Digital Ohmmeter DO4000 Series Operating Instructions Connection Diagram for Pt100 Plug View from solder pins (rear) of plug GROUND 15. Calibration Process WARNING! Competent and trained personnel should only carry this out. The calibration is made from the front panel and no mechanical adjustments are necessary. -
Page 18: Accessories
Digital Ohmmeter DO4000 Series Operating Instructions 16. Accessories Battery Charger The 4000 series milliohmmeters are able to use a rechargeable battery pack. This includes battery cassette with rechargeable batteries, docking station which also acts as bench stand, and charger. Leads The 4000 series milliohmmeters may be used with a variety of lead sets. - Page 19 Digital Ohmmeter DO4000 Series Operating Instructions CE Declaration of Conformity Product: 4000, 4001 and 4002 Ohmmeter Manufacturer- Cropico Ltd Address: Bracken Hill South West Industrial East Peterlee SR8 2SW I declare that the above product meets the following standards: EMC Emissions...
- Page 20 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com...
- Page 21 Digital Ohmmeter DO4000 Series Operating Instructions...
- Page 22 610020 Rev 8...
