Summarization of Contents
Livingstone Bath Range Overview
Interno Bath
Details for the Interno Bath model, including its base type and dimensions.
Regalo Bath
Details for the Regalo Bath model, including its base type and dimensions.
Perlato Petite/Perlato Bath
Specifications for Perlato Petite and Perlato baths, including base types.
Charlotte Bath
Details for the Charlotte Bath model, including its base type and dimensions.

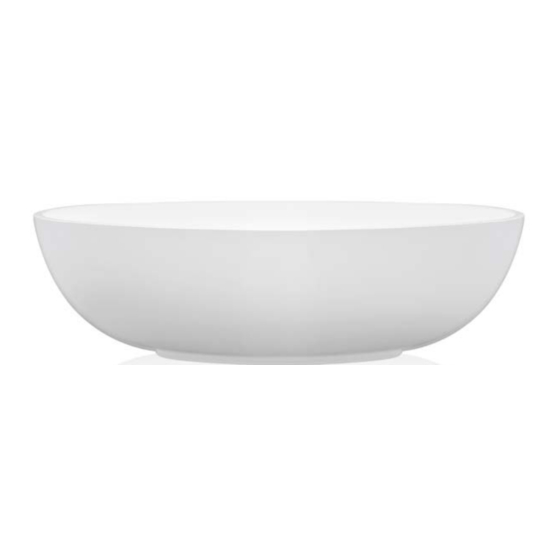

Alana Bath
Specifications for the Alana Bath, including its base type and dimensions.
Grassetto Bath
Details for the Grassetto Bath model, including its base type and dimensions.
Isola Bath
Specifications for the Isola Bath, including its base type and dimensions.
Lusso Bath
Details for the Lusso Bath model, including its base type and dimensions.
Integrated Overflow Bath
Information on the Integrated Overflow bath, including its base type and applicability.
Livingstone Bath Base Types
Base Type A
Description of Base Type A, detailing floor level requirements and suitability.
Base Type B
Description of Base Type B, detailing cavity and chopping requirements.
Base Type C
Description of Base Type C, noting no chopping is required for installation.
Base Type D
Details on Base Type D, including cavity size and no chopping requirement.
Base Type E
Description of Base Type E, for integrated overflow systems with no chopping.
Installation Option 1: Senzo Trap
Senzo Trap with Base Type A
Installation of Senzo Trap with Base Type A, requiring floor level chopping.
Senzo Trap with Base Type B
Installation of Senzo Trap with Base Type B, requiring partial chopping.
Senzo Trap with Base Types C, D, E
Installation of Senzo Trap with Base Types C, D, E, requiring no chopping.
Installation Option 2: Gio Trap
Gio Trap with Base Type A
Installation of Gio Trap with Base Type A, requiring floor level chopping.
Gio Trap with Base Type B
Installation of Gio Trap with Base Type B, requiring partial chopping.
Gio Trap with Base Types C, D, E
Installation of Gio Trap with Base Types C, D, E, requiring no chopping.
Installation Option 3: Wirquin Pro Espace
Wirquin Pro Espace with Base Type A
Installation of Wirquin Pro Espace with Base Type A, requiring floor level chopping.
Wirquin Pro Espace with Base Type B
Installation of Wirquin Pro Espace with Base Type B, requiring partial chopping.
Wirquin Pro Espace with Base Types C, D, E
Installation of Wirquin Pro Espace with Base Types C, D, E, requiring no chopping.
Installation Option 4: Wirquin Overflow System
Wirquin Overflow System with Base Type A
Installation of Wirquin Overflow System with Base Type A, requiring floor level chopping.
Wirquin Overflow System with Base Type B
Installation of Wirquin Overflow System with Base Type B, requiring partial chopping.
Wirquin Overflow System with Base Types C, D, E
Installation of Wirquin Overflow System with Base Types C, D, E, requiring no chopping.
Installation Option 5: Integrated Overflow
Integrated Overflow with Base Type E
Installation of Integrated Overflow system specifically with Base Type E.
General Installation Steps
Step 1: Mark Placement
Mark out the precise location for the plug and bath placement.
Step 2: Position Bath
Place the bath into its intended position after waste insertion.
Step 3: Connect P-trap
Connect the P-trap securely to the waste fitting.
Step 4: Seal Bath Base
Once connected, use silicone to seal the bath base to the tiles.
