Page 1: Table Of Contents
GAS STOCK POT STOVE Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page INJECTOR CHANGE AND GAS SETTING Page GAS CONNECTION IMAGES Page... -
Page 2: Ageneral Information
GAS STOCK POT STOVE Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty. -
Page 3: A1 Product Description

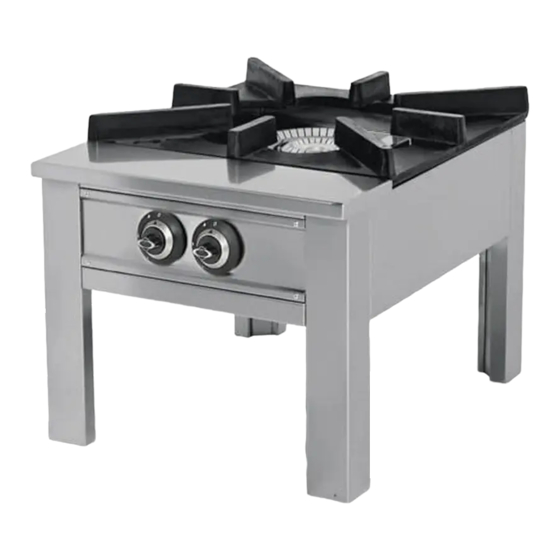

Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Gas Stock Pot Stove,that provides high efficiency has been designed to be used in industrial kitchens. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.YRG.50 600x800x500 660X860X670 EMP.YRG.60 600x800x500 660x860x670 EMP.YRG.70 700x800x500 720X950X585 EMP.YRG.80... -
Page 4: A4 Unpacking
GAS STOCK POT STOVE UNPACKING Kasap Tip Dik Buzdolapları *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol. *Please check that all the parts of appliance had come completely and if they are damaged or not during the shipping. -
Page 5: Csafety Instructions
GAS STOCK POT STOVE Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. *Do not operate the appliance when the machine is empty. -
Page 6: Doperation
*Control Panel; A : ON/OFF B : IGNİTİON C : FULL FLAME POSİTİON D : HOLF FLAME POSİTİON EMP.YRG.50 - EMP.YRG.60 EMP.YRG.70 - EMP.YRG.80 *Operating; • Press gas button in order to operole the appliace and ignile during pushing •... -
Page 7: Ecleaning & Maintenance
GAS STOCK POT STOVE Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE ➢ CLEANING AND MAINTENANCE AFTER EVERY USE • Turn off the gas connection before cleaning. • Clean the outer surface of the appliance with a wet cloth and chrome shiner. •... -
Page 8: Ftroubleshooting
GAS STOCK POT STOVE TROUBLESHOOTING Kasap Tip Dik Buzdolapları Check if the gas connection is done or not. If there is no gas entrance to pilot,the THE APPLIANCE DOESN’T OPERATE appliance is not operated. If the hoses that have gas entrance lose gas due to slit,hole.etc.,the appliance is not operated. -
Page 9: Ginjector Change And Gas Setting
37 mbar 0,22 50 mbar 0,20 EMP.YRG.50 – EMP.YRG.60 Burner Injectors Change ; Remove cost grill and burner top cover..( Image 1) Chage “c” injector with consideration of valve on table above .for this purpose first temove “b” inion from “d” gas inlet pipe. (Image 2) EMP.YRG.60- EMP.YRG.80... -
Page 10: Hgas Connection Images
GAS STOCK POT STOVE GAS CONNECTION IMAGES Kasap Tip Dik Buzdolapları Image Image 2 EMP.YRG.50 - EMP.YRG.60... - Page 11 GAS STOCK POT STOVE Kasap Tip Dik Buzdolapları INJECTOR CHANGE AND GAS SETTING GAS STOCK POT STOVE-BURNER INJECTOR CHANGE CHART Pılot Small Middle Gas Group Injector mm Injector mm Injector mm 2,40 3,00 0,41 0,41 30 mbar 1,20 1,70 0,22...
- Page 12 GAS STOCK POT STOVE GAS CONNECTION IMAGES Kasap Tip Dik Buzdolapları Image Image 2...
-
Page 13: Ispare Part List-Exploding Drawing
GAS STOCK POT STOVE Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.YRG.50 PRODUCT CODE: EMP.YRG.50 PRODUCT NAME P.CODE BASE FRAME Y.EMP.YRG.50.1001 FEET Y.EMP.YRG.50.1002 CASTING GRILL Y.EMP.YRG.50.1003 BURNER Y.EMP.YRG.50.1004 BUTTON Y.EMP.YRG.50.1005 GAS TAP Y.EMP.YRG.50.1006 INJECTOR GROUP Y.EMP.YRG.50.1007 BURNER BARCKET Y.EMP.YRG.50.1008 BUTTON BUFFER Y.EMP.YRG.50.1009... - Page 14 GAS STOCK POT STOVE SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları EMP.YRG.60 PRODUCT CODE: EMP.YRG.60 PRODUCT NAME P.CODE BASE FRAME Y.EMP.YRG.60.1001 FEET Y.EMP.YRG.60.1002 CASTING GRILL Y.EMP.YRG.60.1003 BURNER Y.EMP.YRG.60.1004 BUTTON Y.EMP.YRG.60.1005 GAS TAP Y.EMP.YRG.60.1006 INJECTOR GROUP Y.EMP.YRG.60.1007 BURNER BRACKET Y.EMP.YRG.60.1008 BUTTON BUFFER Y.EMP.YRG.60.1009 GAS TANK...
- Page 15 GAS STOCK POT STOVE Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.YRG.70 PRODUCT CODE: EMP.YRG.70 PRODUCT NAME P.CODE BASE FRAME Y.EMP.YRG.70.1001 FEET Y.EMP.YRG.70.1002 CASTING GRILL Y.EMP.YRG.70.1003 BURNER Y.EMP.YRG.70.1004 BUTTON Y.EMP.YRG.70.1005 GAS TAP Y.EMP.YRG.70.1006 INJECTOR GROUP Y.EMP.YRG.70.1007 BURNER BRACKET Y.EMP.YRG.70.1008 BUTTON BUFFER Y.EMP.YRG.70.1009 GAS TANK...
- Page 16 GAS STOCK POT STOVE SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları EMP.YRG.80 PRODUCT CODE: EMP.YRG.80 PRODUCT NAME P.CODE BASE FRAME Y.EMP.YRG.80.1001 FEET Y.EMP.YRG.80.1002 CASTING GRILL Y.EMP.YRG.80.1003 BURNER Y.EMP.YRG.80.1004 BUTTON Y.EMP.YRG.80.1005 GAS TAP Y.EMP.YRG.80.1006 INJECTOR GROUP Y.EMP.YRG.80.1007 BURNER BRACKET Y.EMP.YRG.80.1008 BUTTON BUFFER Y.EMP.YRG.80.1009 GAS TANK...
