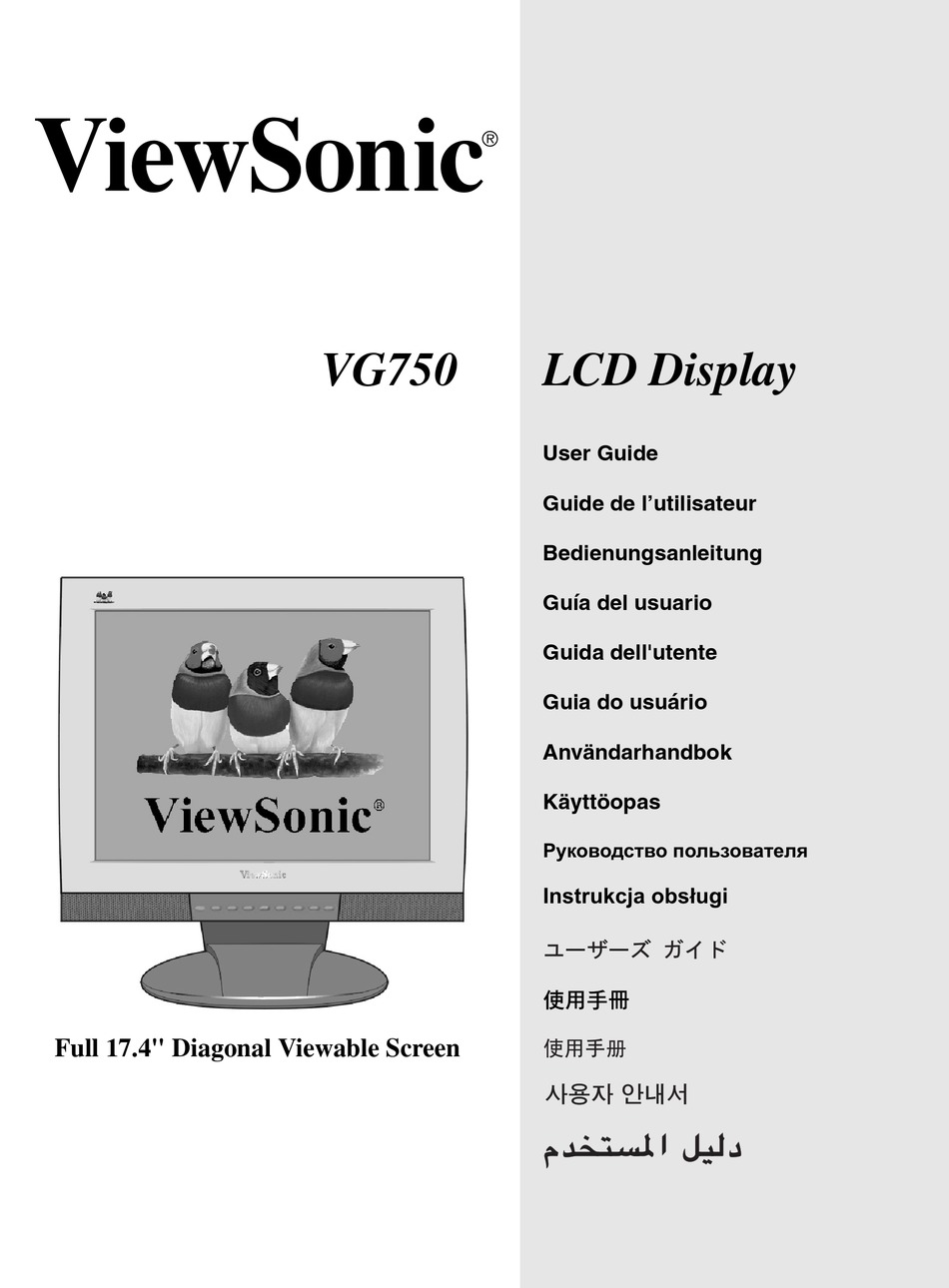

Page 1: Lcd Display
VG750 LCD Display User Guide Guide de l’utilisateur Bedienungsanleitung Guía del usuario Guida dell'utente Guia do usuário Användarhandbok Käyttöopas ,QVWUXNFMDREVáXJL Full 17.4" Diagonal Viewable Screen... -
Page 2: Table Of Contents
Other Information Specifications ............12 Troubleshooting ............13 Customer Support ............ 14 Cleaning the LCD Display ........15 Limited Warranty ............16 Appendix Safety Guidelines ............. 17 Compliance Information for U.S.A......18 CE Conformity for Europe ........18 3/29/02 ViewSonic VG750... -
Page 3: Product Registration
ViewSonic VG750... -
Page 4: Getting Started
NOTE: Guide PDF files and INF/ICM display optimization files. The INF files ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install both files. Precautions • Sit at least 18" from your LCD display •... -
Page 5: Quick Installation
The ViewSonic Wizard CD-ROM also INF file. This is on the CD. provides an opportunity for you to print the 4 Insert the ViewSonic Wizard CD registration form which you may mail or fax into the computer’s CD drive to ViewSonic. -
Page 6: Installation Of Wall Mount (Optional)
Installation of Wall Mount (Optional) To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to the instructions that come with the base mounting kit. To convert your LCD display from a desk-mounted to a wall-mounted display, do the following: Disconnect Power. -
Page 7: Using The Lcd Display
5 seconds. With or without this setting, after a power failure, your LCD display’s power will automatically turn ON when power is restored. • Power Button Unlock: Press and hold [1] and the down arrow again for 10 seconds. ViewSonic VG750... -
Page 8: Adjusting The Screen Image
Also toggles between two controls on some screens. Also a shortcut to Auto Image Adjust. Decreases or increases volume. Power light Green = ON Temporarily silences Orange = Power audio output. Saving Power On/Off ViewSonic VG750... - Page 9 • If necessary, make small adjustments using H POSITION and V POSITION until the screen image is completely visible. (The black border around the edge of the screen should barely touch the illuminated “active area” of the LCD display.) ViewSonic VG750...
-
Page 10: Main Menu Controls
Custom User Color — Individual adjustments for red, green, and blue. To select color (R, G or B) press button [2]. To adjust selected color, press When you are finished making all color adjustments, press button [1] twice. ViewSonic VG750... - Page 11 Disable will not allow the Resolution Notice to appear on- screen. OSD Timeout sets the length of time an on-screen display screen is displayed. For example, with a “15 second” setting, if a control is not pushed within 15 seconds, the display screen disappears. ViewSonic VG750...
- Page 12 Memory Recall returns adjustments to the original factory settings if the display is operating in a factory Preset Timing Mode listed in this user guide. Exception: This control does not effect changes made with the Custom User Color control. ViewSonic VG750...
-
Page 13: Other Information
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD display. ® Macintosh computers older than G3 require a ViewSonic , Macintosh adapter. To order an adapter, contact ViewSonic. -
Page 14: Troubleshooting
Loose or broken pins in the cable connector could cause an improper connection. • Connect the LCD display to another computer. • If you have an older graphics card, contact ViewSonic ® for a non-DDC adapter. -
Page 15: Customer Support
You will need the product serial number. NOTE: Country/ Web site T = Telephone Email Region F = FAX United States viewsonic.com/ T: (800) 688-6688 service.us@ support F: (909) 468-1202 viewsonic.com Canada viewsonic.com/ T: (800) 688-6688 support F: (909) 468-1202 service.ca@... -
Page 16: Cleaning The Lcd Display
LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 17: Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components. -
Page 18: Appendix
BLACK. The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED. If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you have purchased the product. ViewSonic VG750... -
Page 19: Compliance Information For U.s.a
CE Conformity for Europe The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility”, and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety”. VG750 ViewSonic... - Page 20 ® ViewSonic Corporation...
