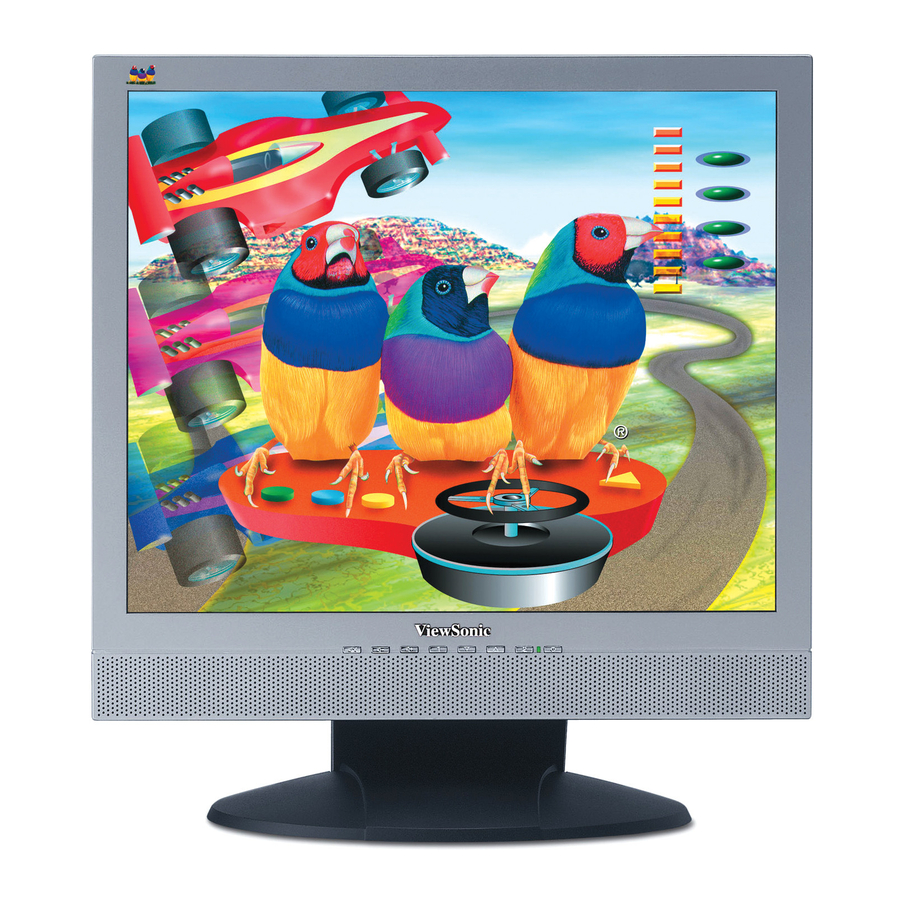

Full 17" diagonal viewable screen lcd display
Hide thumbs
Also See for VG712s:
- Pyководство пользователя (21 pages) ,
- User manual (21 pages) ,
- Service manual (76 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Service Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ViewSonic VG712s
Summary of Contents for ViewSonic VG712s
-
Page 1: Lcd Display

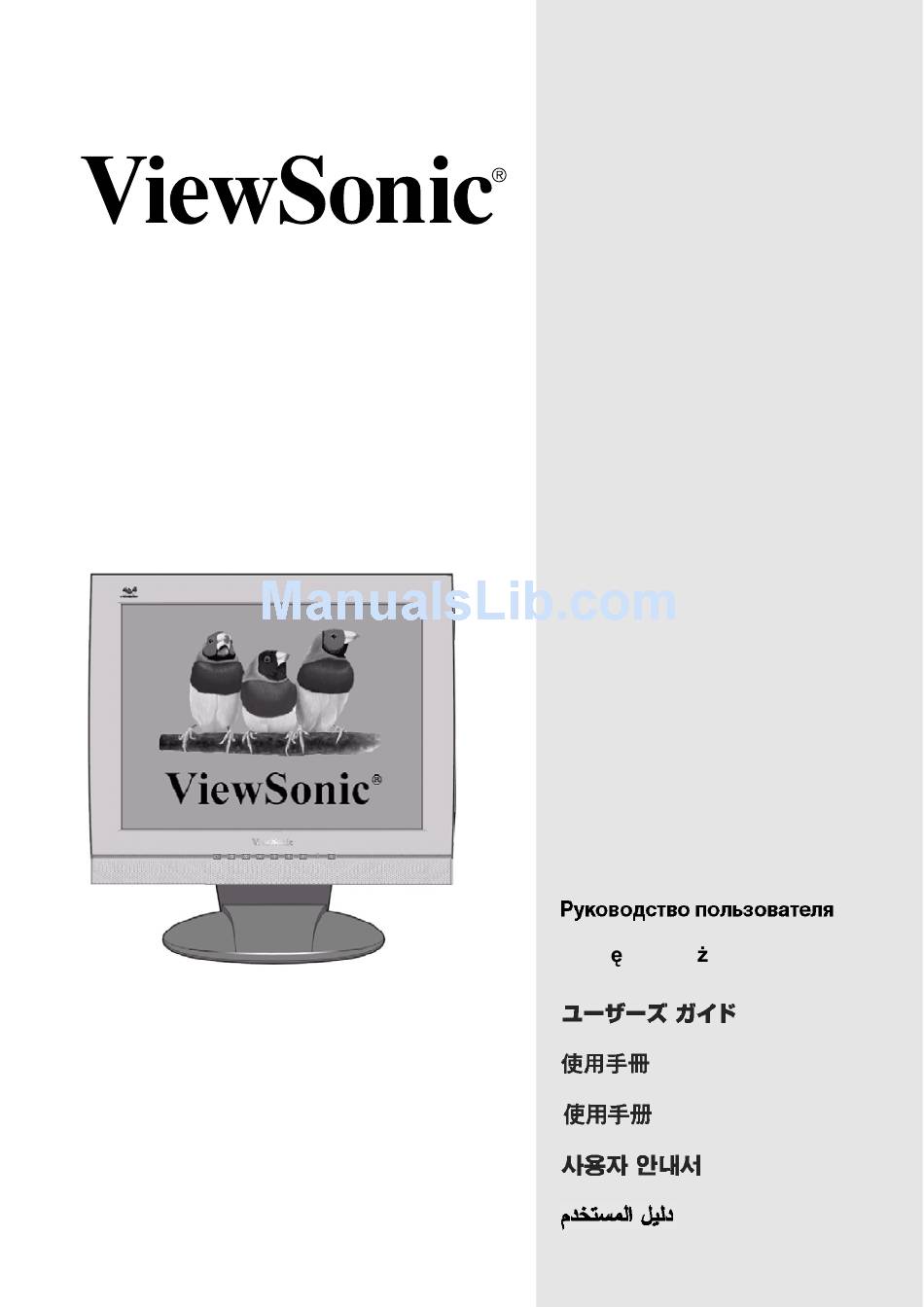

VG712s LCD Display User Guide Guide de l’utilisateur Bedienungsanleitung Guida dell’utente Guía del usuario Guia do Usuário Användarhandbok Käyttöopas Podr cznik u ytkownika Full 17" Diagonal Viewable Screen... -
Page 2: Table Of Contents
Other Information ... 13 Specifications ... 13 Troubleshooting ... 14 Customer Support ... 15 Cleaning the LCD Display ... 16 Limited Warranty ... 17 Compliance Information for U.S.A..18 CE Conformity for Europe ... 19 03/11/04 C ViewSonic VG712s... -
Page 3: Product Registration
NERGY Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this mate- rial, or the performance or use of this product. -
Page 4: Getting Started
• Do not place heavy objects on the LCD display, video cable, or power cord. • If smoke, abnormal noise, or strange odor is present, immediately switch the LCD display off and call your dealer or ViewSonic. It is dangerous to continue using the LCD display. ViewSonic VG712s... -
Page 5: Quick Installation
NOTE: Windows users may receive a message asking them to install the INF file. This is on the CD. 4 Insert the ViewSonic Wizard CD into the computer’s CD drive. Follow the on-screen instructions If your computer does not have a CD-ROM drive, see “Customer Support."... -
Page 6: Installation Of Wall Mount (Optional)
Installation of Wall Mount (Optional) To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to the instructions that come with the base mounting kit. To convert your LCD display from a desk-mounted to a wall-mounted display, do the following: Four screw holes for wall mount Disconnect Power. -
Page 7: Using The Lcd Display
• Power Button Unlock: Press and hold [1] and the down arrow 10 seconds. ® controls desktop > Properties > ® ▲ for 10 seconds. If any ▲ again for 10 seconds. ▼ for 10 ▼ again for ViewSonic VG712s... -
Page 8: Adjusting The Screen Image
Displays the control screen for the highlighted control. Also toggles between two controls on some screens. Also a shortcut to toggle between analog and digital connections. ViewSonic ® Power light Green = ON Orange = Power Saving Power On/Off VG712s... -
Page 9: Do The Following To Adjust The Screen Image
The command line at the bottom of the control screen tells what to do next from this screen. You can toggle between control screens, adjust the selected option, or exit the screen. ▲ ▼ or down buttons. ViewSonic VG712s... -
Page 10: Main Menu Controls
5400K — Adds green to the screen image for a darker color. 5000K — Adds blue and green to the screen image for a darker color. ▲ and down sizes and centers the screen image provides several color adjustment modes: preset 2:SELECT ViewSonic ▼ buttons. VG712s... - Page 11 (video signal input) Information coming from the graphics card in your computer, the LCD model number, the serial number, and the ViewSonic website URL. See your graphic card’s user guide for instructions on changing the resolution and refresh rate (vertical frequency).
- Page 12 1280 x 1024, the following screen appears. Resolution Notice For best picture quality, change the resolution to 1280 x 1024 Press "1" to Clear Message. Press "2" to Disable Message. 2: Select allows you to enable or disable this notice. ViewSonic VG712s...
- Page 13 On or Off. Memory Recall if the display is operating in a factory Preset Timing Mode listed in the Specifications of this manual. allows you to turn the On-Screen Display returns the adjustments back to factory settings ViewSonic VG712s...
-
Page 14: Other Information
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD display. Macintosh computers older than G3 require a ViewSonic contact ViewSonic. 17" (full 17" viewable diagonal area), TFT (Thin Film Transistor), Active Matrix SXGA LCD, 0.264 mm pixel pitch... -
Page 15: Troubleshooting
Loose or broken pins in the cable connector could cause an improper connection. • Connect the LCD display to another computer. • If you have an older graphics card, contact ViewSonic for a non-DDC adapter. Control buttons do not work •... -
Page 16: Customer Support
F: +61 2 9906 6377 viewsonic.com T: 65 273 4018 service@sg. F: 65 273 1566 viewsonic.com T: 886 2 2246 3456 service@sd. F: 886 2 8242 3668 viewsonic.com T: 886 2 2246 3456 service@sd. F: 886 2 8242 3668 viewsonic.com ViewSonic VG712s... -
Page 17: Cleaning The Lcd Display
LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display display. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 18: Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components. -
Page 19: For The United States And Canada
If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you have purchased the product. Switzerland ... SEV Britain ... BASE/BS Japan ... Electric Appliance Control Act Figure A2 Maximum Current Rating of Unit 10 Amps 12 Amps 12 Amps 10 Amps 12 Amps ViewSonic VG712s... -
Page 20: Ce Conformity For Europe
CE Conformity for Europe The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility,” and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety.” ViewSonic VG712s... - Page 21 ViewSonic Corporation...
