Page 1: Lcd Display

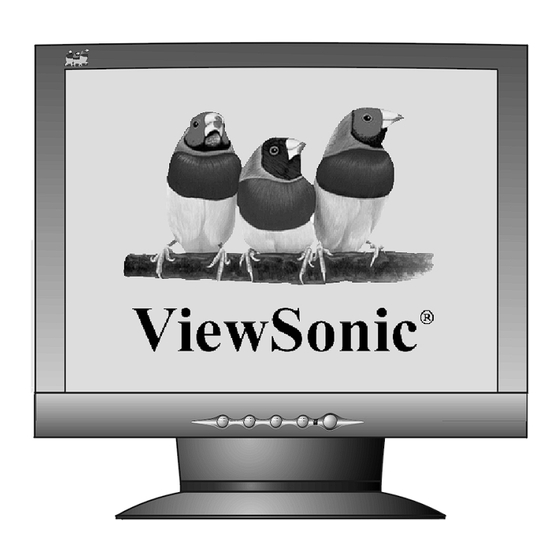

VE500 LCD Display User Guide Guide de l’utilisateur Bedienungsanleitung Guía del usuario Guida dell'utente Guia do usuário Användarhandbok Käyttöopas Instrukcja obs ugi With Landscape & Portrait Display Modes Full 15.0" Diagonal Viewable Screen... -
Page 2: Table Of Contents
Adjusting the Screen Image ..........7 Main Menu Controls ..............9 Other Information Specifications ..............13 Troubleshooting..............14 Customer Support ...............15 Cleaning the LCD Display ...........16 Limited Warranty ..............17 Appendix Safety Guidelines ..............18 Compliance Information for U.S.A........19 CE Conformity for Europe ...........19 03/27/03 A ViewSonic VE500... -
Page 3: Product Registration
NERGY Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 4: Getting Started
NOTE: Guide PDF files and INF/ICM display optimization files. The INF files ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install both files. Precautions • Sit at least 18" from your LCD display. -
Page 5: Quick Installation
See the Customer INF file. This is on the CD. Support table in this guide. 4 Insert the ViewSonic Wizard CD The ViewSonic Wizard CD-ROM also into the computer’s CD drive provides an opportunity for you to print the •... -
Page 6: Installation Of Wall Mount (Optional)
Installation of Wall Mount (Optional) To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to the instructions that come with the base mounting kit. To convert your LCD display from a desk-mounted to a wall-mounted display, do the following: Disconnect Power. -
Page 7: Using The Lcd Display
5 seconds. With or without this setting, after a power failure, your LCD display’s power will automatically turn ON when power is restored. • Power Button Unlock: Press and hold [1] and the down arrow again for 10 seconds. ViewSonic VE500... -
Page 8: Adjusting The Screen Image
Power light changes to, and exits the Main Menu. Power On/Off Selects a highlighted control. Also, Scroll through menu displays the control screen for the options and adjust the selected control and toggles displayed control. between control pairs. ViewSonic VE500... - Page 9 • If necessary, make small adjustments using H. POSITION and V. POSITION until the screen image is completely visible . (The black border around the edge of the screen should barely touch the illuminated “active area” of the LCD display.) ViewSonic VE500...
-
Page 10: Main Menu Controls
Default setting. — Individual adjustments for red, green, and blue. User To select color (R, G or B) press button [2]. To adjust selected color, press When you are finished making all color adjustments, press button [1] twice. ViewSonic VE500... - Page 11 H. Frequency: 48.60 KHz V. Frequency: 60.00 Hz Pixel Clock: 65.00 MHz Resolution: 1024 x 768 Model Number: VLCDS23585-2W Serial No: www.viewsonic.com 1:EXIT Image Adjust Image Adjust H./V. Position H. Size Fine Tune Sharpness 1:EXIT 2:SELECT The Image Adjust controls are explained below: adjusts horizontal and vertical position of the H./V.
- Page 12 OSD Position and control screens. sets the length of time an on-screen display OSD Timeout screen is displayed. For example, with a “15 second” setting, if a control is not pushed within 15 seconds, the display screen disappears. ViewSonic VE500...
- Page 13 Control Explanation returns adjustments to the original factory Memory Recall settings if the display is operating in a factory Preset Timing Mode listed in this user guide. ViewSonic VE500...
-
Page 14: Other Information
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD display. ® Macintosh computers older than G3 require a ViewSonic , Macintosh adapter. To order an adapter, contact ViewSonic. -
Page 15: Troubleshooting
Loose or broken pins in the cable connector could cause an improper connection. • Connect the LCD display to another computer. • If you have an older graphics card, contact ViewSonic ® for a non-DDC adapter. -
Page 16: Customer Support
You will need the product serial number. NOTE: Country/ Web site T = Telephone Email Region F = FAX United States viewsonic.com/ T: (800) 688-6688 service.us@ support F: (909) 468-1202 viewsonic.com Canada viewsonic.com/ T: (800) 688-6688 support F: (909) 468-1202 service.ca@... -
Page 17: Cleaning The Lcd Display
LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 18: Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components. -
Page 19: Appendix
BLACK. The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED. If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you have purchased the product. ViewSonic VE500... -
Page 20: Compliance Information For U.s.a
