Summary of Contents for ViewSonic VA902

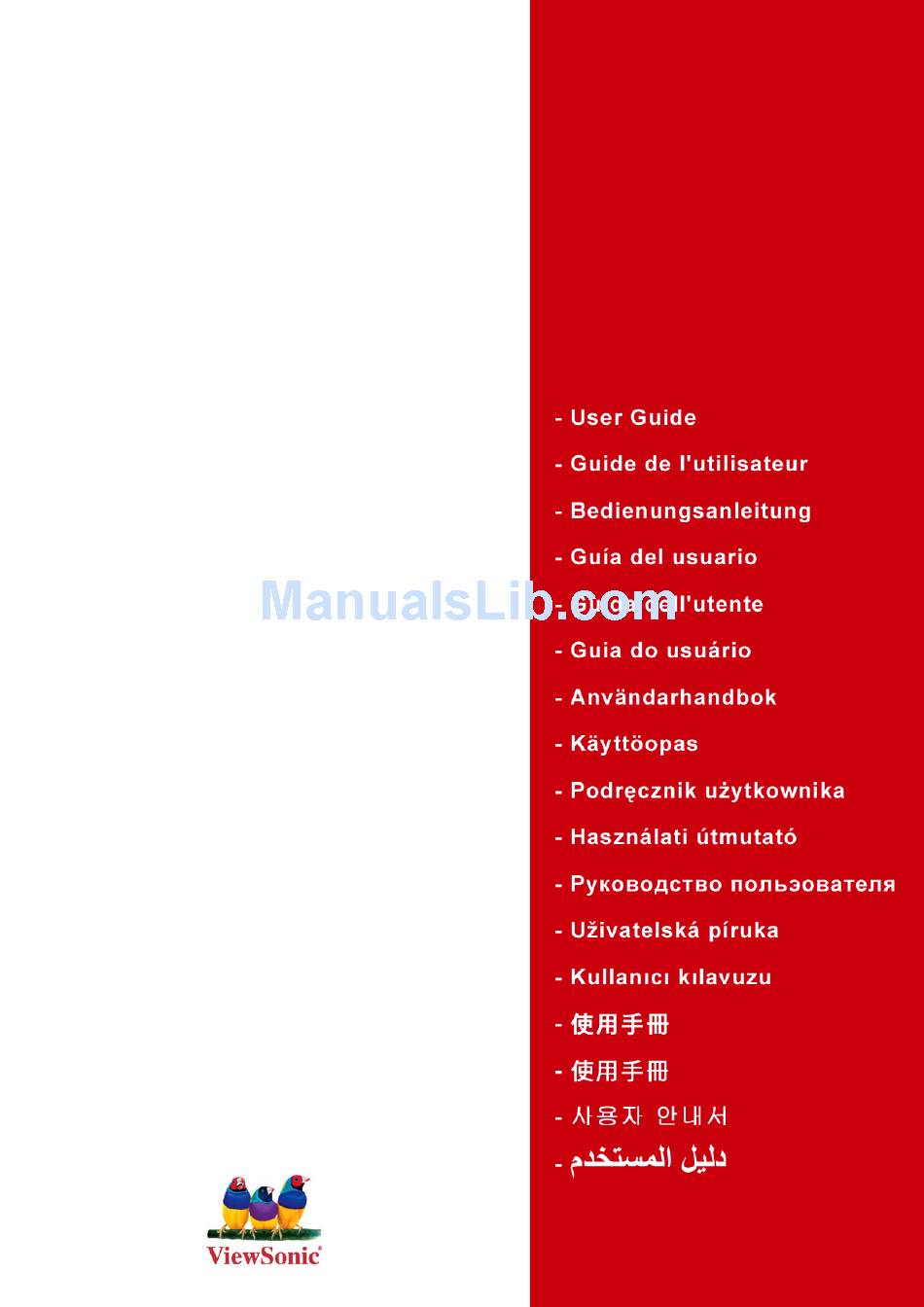

- Page 1 ® ViewSonic VA902/VA902b LCD Display...
-
Page 2: Table Of Contents
OSD and Power Lock Settings ..............7 Adjusting the Screen Image ............... 8 Main Menu Controls ................. 10 Other Information Specifications ................... 13 Troubleshooting..................14 Customer Support ..................15 Cleaning the LCD Display ................ 16 Limited Warranty ..................17 ViewSonic VA902/VA902b... -
Page 3: Tco Information
The length of time to reactivate the system unit shall be reasonable for the user. Labelled products must meet strict environmental demands, for example, in respect of the reduction of electrical and magnetical fields as well as work load and visual ergonomics. ViewSonic VA902/VA902b... - Page 4 TCO Development aims at restricting the use of lead. * Bio-accumulative is defined as substances which accumulate in living organisms. **Lead, Cadmium and Mercury are heavy metals which are bio-accumulative. ViewSonic VA902/VA902b...
-
Page 5: Compliance Information
92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility,” and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety.” User Information for all Countries Notice: Use the cables which are included with the unit or specified. ViewSonic VA902/VA902b... -
Page 6: Important Safety Instructions
15. The apparatus shall only be used between 5° tilted forward and 20° tilted backward as normal operation position. If the tilt angle exceeds 20°, it shall be used for wall mounting or packaging only. ViewSonic VA902/VA902b... -
Page 7: Copyright Information
® NERGY Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 8: Getting Started
NOTE: The CD includes the User Guide PDF files and INF/ICM display optimization files. The INF file ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install both the INF and ICM files. -
Page 9: Quick Installation
This is on the CD. the Customer Support table in this guide. The ViewSonic Wizard CD-ROM also 4. Insert the ViewSonic Wizard CD into provides an opportunity for you to print the computer’s CD drive. the registration form which you may mail Follow the on-screen instructions. -
Page 10: Wall Mounting (Optional)
Wall Mounting (Optional) To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to the ® instructions that come with the base mounting kit. To convert your LCD display from a desk- mounted to a wall-mounted display, do the following: 1. -
Page 11: Using The Lcd Display
Power Button Locked will display for 5 seconds. With or without this setting, after a power failure, your LCD display’s power will automatically turn ON when power is restored. • Power Button Unlock: Press and hold [1] and the down arrow again for 10 seconds. ViewSonic VA902/VA902b... -
Page 12: Adjusting The Screen Image
Also a shortcut to Auto On/Off Image Adjust. Scrolls through menu options and adjusts the Displays the displayed control. Main Menu or Also a shortcut to exits the display the control screen Contrast and saves adjustment control adjustments. screen. ViewSonic VA902/VA902b... - Page 13 • If necessary, make small adjustments using H. POSITION and V. POSITION until the screen image is completely visible. (The black border around the edge of the screen should barely touch the illuminated “active area” of the LCD display.) ViewSonic VA902/VA902b...
-
Page 14: Main Menu Controls
9300K - Adds blue to the screen image for cooler white (used in most office settings with fluorescent lighting). 6500K - Adds red to the screen image for warmer white and richer red. 5400K - Adds green to the screen image for a darker color. ViewSonic VA902/VA902b... - Page 15 H. Size (Horizontal Size) adjusts the width of the screen image. Fine Tune sharpens the focus by aligning text and/or graphics with pixel boundaries. NOTE: Try the Auto Adjust function before using the Fine Tune control. Sharpness adjusts the clarity and focus of the screen image. ViewSonic VA902/VA902b...
- Page 16 OSD Background allows the user to turn the OSD background On or Off. Memory Recall returns the adjustments back to factory settings if the display is operating in a factory Preset Timing Mode listed in the Specifications of this manual. ViewSonic VA902/VA902b...
-
Page 17: Other Information
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD display. ® Macintosh computers older than G3 require a ViewSonic Macintosh adapter. To order an adapter, contact ViewSonic. -
Page 18: Troubleshooting
Loose or broken pins in the cable connector could cause an improper connection. • Connect the LCD display to another computer. • If you have an older graphics card, contact ViewSonic for a non-DDC adapter. ® Control buttons do not work •... -
Page 19: Customer Support
F= (65) 6273 1566 T= +886 (2) 2246 3456 South Africa and other www.viewsonic.com service@sd.viewsonic.com countries F= +886 (2) 2249 1751 Hong Kong www.hk.viewsonic.com/support/ T= +852 3102 2900 service@hk.viewsonic.com Macau www.hk.viewsonic.com/support/ T= +853 700 303 service@hk.viewsonic.com Korean www.viewsonic.com T= 080 333 2131 service@kr.viewsonic.com... -
Page 20: Cleaning The Lcd Display
LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display. • ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol- based cleaners. ViewSonic VA902/VA902b... -
Page 21: Limited Warranty
ViewSonic warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.
