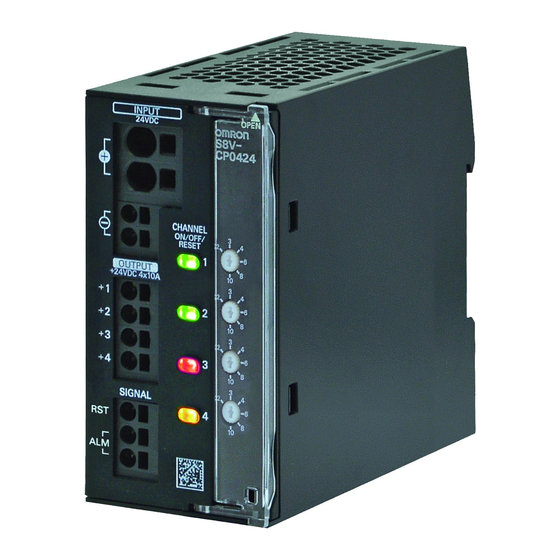

Omron S8V-CP0424 Manual

DC Electronic Circuit Protector
S8V-CP
Simplified safety design of DC circuits
Reliable DC circuit protection in the
event of short circuits or overcurrent
Saves space even with multi-channels
Sequential start-up of outputs
to avoid start-up trouble
• Push-in plus terminal block adopted
• Push button with indicator to help you understand
each output status at a glance
• Switch lets you set the rated output current appropriately
for each output depending on load
• Lineup of a UL Class 2 output-compatible model
Refer to Safety Precautions on page 10.
Model Number Structure
Model Number Legend
S8V-CP @@ 24 @
Series name (1) (2) (3)
(1) Number of Outputs
Code
04
08
(2) Rated input voltage
Code
24
List of Models
Unit
Number of Outputs
4 outputs
8 outputs
Not all combinations are possible. Refer to List of Models in Ordering Information, below.
Number of Outputs
4 outputs
8 outputs
Rated input voltage
24 VDC
UL Class 2 output
No
Yes
No
(24 VDC 4 Outputs/8 Outputs Type)
For the most recent information on models that have been
certified for safety standards, refer to your OMRON website.
(3) UL Class 2 output
Code
S
No
Model
S8V-CP0424
S8V-CP0424S
S8V-CP0824
UL Class 2 output certified
Yes
No
