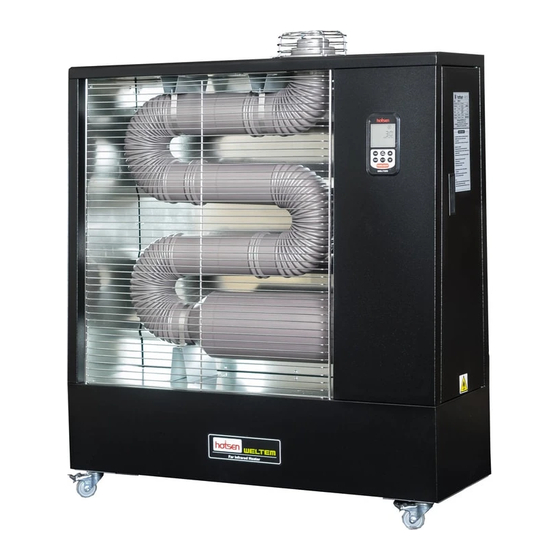

Far-infrared
Oil Heater
Owner's manual
Please read this manual carefully for your safety
·Thank you for purchasing WELTEM's far infrared heater
·Read this manual carefully prior to using this heater to prevent any
injury and damage.
·Specifications can be changed without prior notice for product improvement
Advertisement
Table of Contents
Related Manuals for Weltem HOTSEN WHO-135
Summary of Contents for Weltem HOTSEN WHO-135
- Page 1 Oil Heater Owner's manual Please read this manual carefully for your safety ·Thank you for purchasing WELTEM's far infrared heater ·Read this manual carefully prior to using this heater to prevent any injury and damage. ·Specifications can be changed without prior notice for product improvement...
-
Page 2: Table Of Contents
Table of contents ▶ Features …………………………………………………………………………………… ▶ Name of parts (Front) … … … … … … … … … … … … … … … … … … ▶ Name of parts (Side) ……………………………………… ▶ Display / Controller …………………………………………………………………… ▶... -
Page 3: Name Of Parts (Front)
Name of parts Front Exhaust port : It is where combustion gas is released and can be connected with stovepipe Top grill Controller / Display : Users can control the operation and see if there is an error Burner room : Fuel tank and burner are attached with safety devices inside burner room... -
Page 4: Name Of Parts (Side)
Name of parts Side Overheating prevention device Controller / Display Burner Ignition trans Ignition through high pressure discharge Air regulator Burner motor Electronic pump It releases fuel through high pressure Air purge screw Refer to page 5-2 Flow meter Fuel inlet Temperature sensor... -
Page 5: Display / Controller
Display / Controller Off Timer Power ON/OFF Refer to category 5 function Up and Down function Temp Temperature Time set-refer to Time set-refer category 4 to category 3 1) Plug the power cord. Current temperature and the fuel amount are displayed. Press the 'Power ON/OFF' button - If Fan and Heating icons and current temperature, target temperature and fuel amount are shown on the display, the LCD display is always lighted up... - Page 6 Display / Controller Press the 'TIME' button - This button is for saving mode by setting heating time - 'TIME SET' icon and setting outcome (minute) are displayed. Setting outcome is controlled with 'UP' and 'DOWN' button (It is either increased or decreased by 5mins) - The time is set from 5 to 25mins and the heater is operated and stopped every 30 mins Example) If time is set to 20mins, the heater is operated for 20mins and stopped for 10mins Press the 'TEMP' button.
-
Page 7: Safety Cautions
Safety Cautions Pay careful attention to the following warning signs intended to prevent the accidents resulted from the incorrect use. Danger This danger sign warns you of serious injury or death expected when violating the safety rules or instructions. Warning This warning sign warns you of serious injury or death expected when violating the safety rules or instructions. -
Page 8: Items To Check Before Use
Items to check before use Warning : Check if there are any inflammable substances ▶ Get any inflammable substances like gasoline, kerosene, thinner away around from the heater. Check power supply ▶ Make sure power supply is 220~240V - Improper power supply may cause trouble. AC220V Check fuel ▶... -
Page 9: Cautions During Use
Cautions during use Caution : Ventilation ▶ Open the window once or twice every hour for ventilation when heater is used in closed area. - It may cause lack of oxygen if heater is operated for a long time without ventilation. Caution : Away from Children ▶... -
Page 10: Routine Check / Periodic Check
Routine check / Periodic check Caution : Routine check ▶ Make sure to check or clean only after the combustion of heater is stopped. ▶ Check if the fuel tank leaks ▶ Check if the combustion furnace or heating tube is corrupt or damaged. ▶... -
Page 11: How To Install The Product
How to install the product ▶ Install the heater in the flat area. If you install the heater in sloped area, combustion furnace may be damaged by the irregular combustion. ▶ Install the flue tube for the indoor use. If the flue tube passes through the inflammable wall, wrap the inside wall more than 3cm with nonflammable insulation. -
Page 12: Electrical Wiring Diagram
Electrical Wiring Diagram Brown Yellow Fan Motor Ignition Trans Green Burner Electronic pump Black Phototube Black Temperature Gray2P Sensor Black2P Flow Meter Green Inversion Switch Green Brown Yellow Fan Motor Overheat Yellow Ignition Trans Burner Green Sensor Yellow Electronic pump Black Phototube Black... - Page 13 Items to check before requesting service ▶ Carry out remedy refer to the following instructions. Please request service when problem continue. Display Possible cause Check and remedy - Lack of fuel E1. No ignition Burner is not ignited - Fuel pipe is filled with air ( → Drain the air) - Phototube is contaminated ( →...
-
Page 14: General Specifications
General specifications Model WHO-095 WHO-115 WHO-135 Item Fuel Diesel Diesel Diesel Fuel Consumption 1ℓ /h 1.1ℓ /h 1.41ℓ /h Heating capacity 9,000Kcal/h 11,000Kcal/h 13,000Kcal/h Heating area 59.6 ~ 77.5㎡ 72.9 ~ 94.7㎡ 86.1 ~111.9㎡ Power supply AC 220V 50/60Hz Fuel Consumption 40W (Running) 40W (Running) 40W (Running) -
Page 15: Limited Warranty
4. Defect or trouble resulted from the use of unauthorized power 5. Defect or trouble resulted from the wrong installation 6. Defect or trouble resulted from the use of other fuels besides the designated fuel. WELTEM CO., LTD. Manufacturer 118, Jayumuyeok 3-gil, Masanhoewon-gu, Changwon-City, Gyeongsangnam-do, 630-813 Korea TEL: (055) 294-9200 (main phone No.) FAX: (055) 294-9220... - Page 16 118, Jayumuyeok 3-gil, Masanhoewon-gu, Changwon-City, Gyeongsangnam-do, 630-813 Korea TEL: +82-55-294-9200(ext.2) FAX: +82-55-294-9220 http://www.weltem.com...
