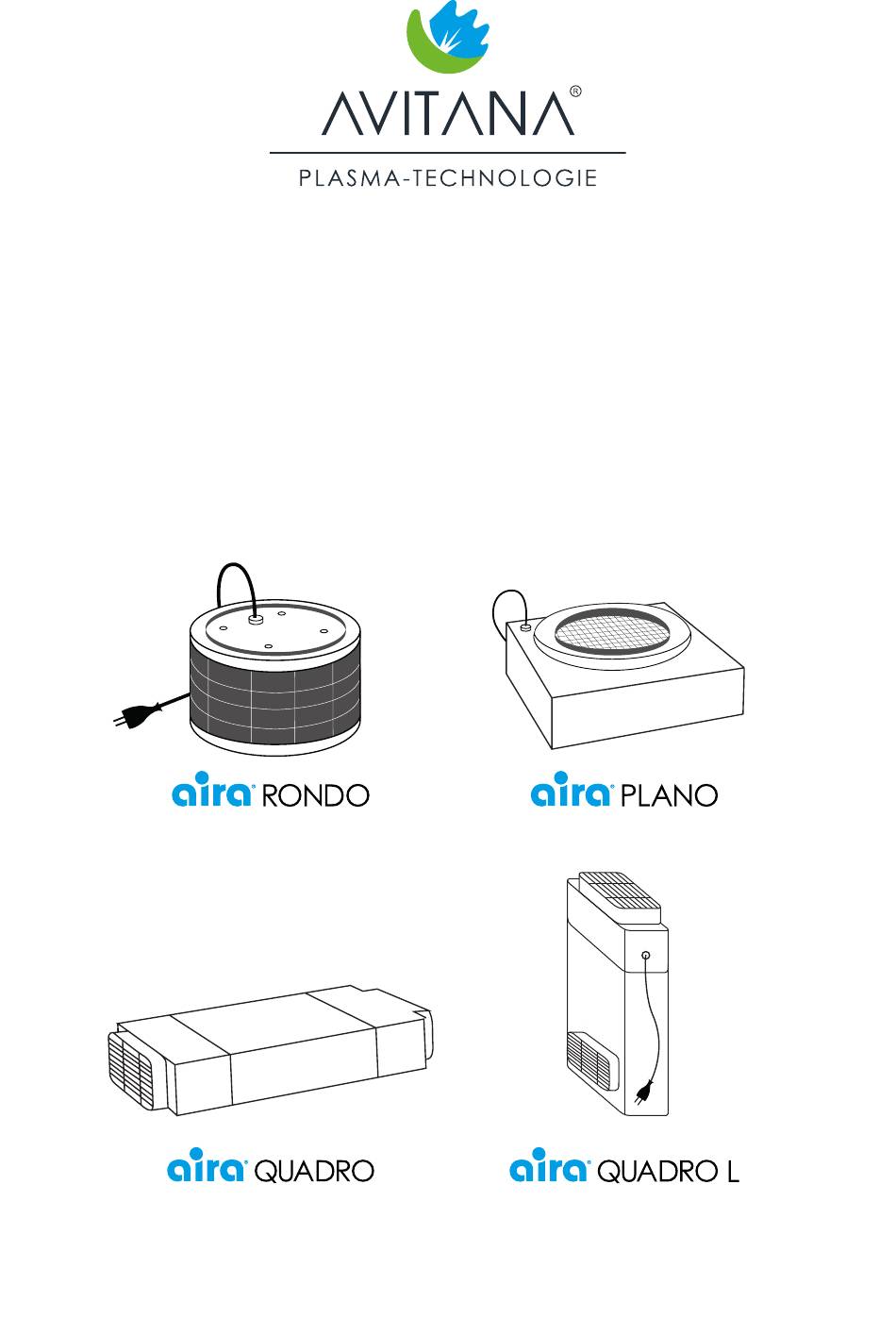

- Page 1 Mounting Instructions...
-
Page 2: Table Of Contents
Table of Contents OPERATING INSTRUCTIONS Greetings Properties Important warnings Warnings and instructions for installation Mounting instructions RONDO Mounting instructions PLANO Mounting instructions QUADRO Mounting instructions QUADRO L Warnings for operation Warranty and conditions Final remarks... -
Page 3: Greetings
® Thank you for following our ideology for more sustainability. Thank you for choosing to be more environmentally aware. Thank you for choosing the AVITANA® brand product. AVITANA filters will free your indoor air from cooking odours through a physico- ®... - Page 4 AVITANA Filters ® Three product groups: PLANO and RONDO, QUADRO • The right plasma filter for every cooker hood • Capacity levels from 350 to 1,200 cbm/h • Customer-specific developments and special requests possible User-friendly • Easy and quick to install (plug and play) •...
-
Page 5: Properties
• Likewise, overheated oil poses a potential fire hazard. Never extinguish with water! • Carbon monoxide or other chemical gases can not be removed with the AVITANA ®... -
Page 6: Warnings And Instructions For Installation
® belonging to the unit! (Warranty) • If the cable is damaged, the device must be returned to the dealer/manufacturer for scrapping. • Carefully open the packaging, remove the AVITANA filter module and check the ® packing unit for completeness! Keep the packaging in a safe place until the functional test has been carried out to ensure correct operation and, if necessary, use it for return shipments. -
Page 7: Mounting Instructions Rondo
To install the filter, proceed as follows: RONDO - filter is placed on the 1. Remove the chimney shaft and disconnect the cooker hood motor (Fig. E). With this AVITANA® filter sys- hood from the mains. tem you transform your cooker hood into an air purifi- cation unit with an absorption of all odours, viruses and bacteria up to 98%. - Page 8 Mounting Instructions RONDO 2. Remove the exhaust hose or carbon filter and, if 3. Place an O-ring (B) over the connecting piece present, close the exhaust hole (a). (b) and tighten the hose clamp. 4. If the adapter (D) is used, place it on the connec- 5.
- Page 9 Mounting Instructions RONDO 6. Connect the hood and filter plug with the triple 7. Connect the triple plug adapter (C) to the socket. plug adapter (C). 8. Put the chimney shaft back on the hood. There must be sufficient ventilation slots in the chim- ney shaft from which the circulating air can escape:...
-
Page 10: Mounting Instructions Plano
Mounting Instructions PLANO BOX CONTENT A AVITANA filter module ® B 2 O-rings C triple plug adapter D eccentric adapter E hose clamp Dimensions Air output Connection Connec- Article No. Weight Packing voltage ting dimen- unit sion PLANO 400/210 210x250x80mm... -
Page 11: Mounting Instructions Quadro
222x90mm 8712 6,5kg 1 piece 1. The AVITANA® QUADRO can be mounted in almost any position (transverse, vertical, upright, etc.). The only decisive factor is the correct positioning of the motor side and the resulting output. OUTPUT / skirting INPUT / motor side 2. -
Page 12: Mounting Instructions Quadro L
222x90mm 8795 6,5kg 1 piece 1. The AVITANA QUADRO can be mounted in almost any position (transverse, vertical, upright, etc.). ® The only decisive factor is the correct positioning of the motor side and the resulting output. INPUT / motor side... -
Page 13: Warnings For Operation
CARE AND MAINTENANCE If the AVITANA filter module is installed according to the installation instructions, it ® requires no maintenance. The AVITANA filter module starts the automated cleaning ® process as soon as it is in operation. The AVITANA filter module is maintenance-free. -
Page 14: Warranty And Conditions
Warranty and Conditions We at AVITANA are extremely happy about your purchase of one of our high-tech modules ® and are convinced that your living comfort will be enhanced by fresh and purified air. We grant a 60-month warranty on our products, provided that they are installed correctly and professionally. -
Page 15: Final Remarks
The INSTALLATION OF AVITANA - FILTERS ® The AVITANA filter is relatively easy to install. The installation of the AVITANA filter is ® ® intended as retrofitting or conversion of an already existing extractor hood unit or its use in circulating air operation. - Page 16 AVITANA GmbH, Berliner Straße 17, D-32052 Herford, Phone 0 52 21. 763 780-0, info@avitana.de, www.avitana.de...
