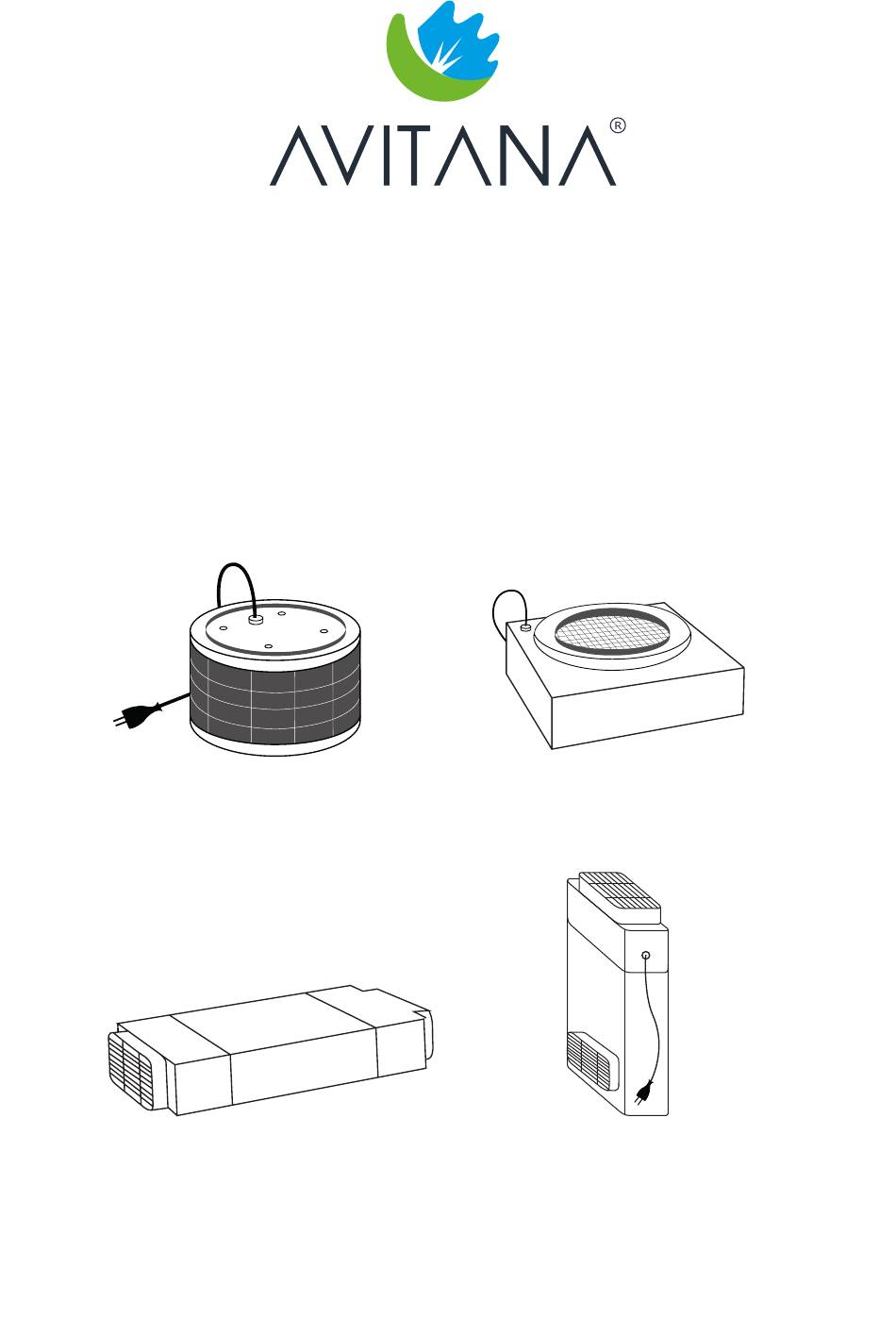

- Page 1 Mounting Instructions aira PLANO aira RONDO aira QUADRO L aira QUADRO...
-
Page 2: Table Of Contents
Table of Contents OPERATING INSTRUCTIONS Greetings Properties Important warnings Warnings and instructions for installation Mounting instructions RONDO Mounting instructions PLANO Mounting instructions QUADRO Mounting instructions QUADRO L Warnings for operation Warranty and conditions Final remarks... - Page 3 ® Thank you for following our ideology for more sustainability. Thank you for choosing to be more environmentally aware. Thank you for choosing the AVITANA® brand product. AVITANA aira filters will free your indoor air from cooking odours through a physico- ®...
- Page 4 AVITANA aira filters ® Three product groups: aira RONDO, PLANO and QUADRO • The right plasma filter for every cooker hood • Capacity levels from 350 to 1,200 cbm/h • Customer-specific developments and special requests possible User-friendly • Easy and quick to install (plug and play) •...
-
Page 5: Properties
• Likewise, overheated oil poses a potential fire hazard. Never extinguish with water! • Carbon monoxide or other chemical gases can not be removed with the AVITANA ® aira! -
Page 6: Warnings And Instructions For Installation
(Warranty) • If the cable is damaged, the device must be returned to the dealer/manufacturer for scrapping. • Carefully open the packaging, remove the AVITANA aira filter module and check the ® packing unit for completeness! Keep the packaging in a safe place until the functional test has been carried out to ensure correct operation and, if necessary, use it for return shipments. - Page 7 2,0kg 1 piece AVITANA ® aira RONDO - fi lter is placed on the To install the fi lter, proceed as follows: 1. Remove the chimney shaft and disconnect the cooker hood motor. With this AVITANA® fi lter system hood from the mains.
- Page 8 Mounting Instructions aira RONDO 2. Remove the exhaust hose or carbon fi lter and, if present, close the exhaust hole (a). 4. If the adapter (C) is used, place it on the connec- 5. Place the fi lter (A) on the adapter (C) or directly ting piece.
- Page 9 Mounting Instructions aira RONDO 6. Connect the hood and fi lter plug with the triple 7. Connect the triple plug adapter (B) to the socket. plug adapter (B). 8. Put the chimney shaft back on the hood. There must be suffi cient ventilation slots in the chim-...
-
Page 10: Mounting Instructions Rondo
Mounting Instructions PLANO BOX CONTENT A AVITANA aira fi lter module ® B eccentric adapter D hose clamp Dimensions Air output Connection- Connecting Article No. Weight Packing unit voltage dimension 210 - 250 V ø 150mm 8940 2,2kg 1 piece... -
Page 11: Mounting Instructions Quadro
8712 6,5kg 1 piece ® 1. The AVITANA aira QUADRO can be mounted in almost any position (transverse, vertical, upright, etc.). The only decisive factor is the correct positioning of the motor side and the resulting output. OUTPUT / skirting INPUT / motor side 2. -
Page 12: Mounting Instructions Quadro L
222x90mm 8795 6,5kg 1 piece 1. The AVITANA aira QUADRO can be mounted in almost any position (transverse, vertical, upright, etc.). ® The only decisive factor is the correct positioning of the motor side and the resulting output. INPUT / motor side... -
Page 13: Warnings For Operation
CARE AND MAINTENANCE If the AVITANA aira fi lter module is installed according to the installation instructions, it ® requires no maintenance. The AVITANA aira fi lter module starts the automated cleaning ® process as soon as it is in operation. -
Page 14: Warranty And Conditions
Warranty and Conditions We at AVITANA are extremely happy about your purchase of one of our high-tech ® modules and are convinced that your living comfort will be enhanced by fresh and purified air. We grant a 60-month warranty on our products, provided that they are installed correctly and professionally. -
Page 15: Final Remarks
If there is no function, please check fi rst: a) whether the power supply is guaranteed (check socket / possibly connect another device) b) whether the appliance plug is faulty or fi rmly plugged into the socket. The INSTALLATION OF AVITANA - FILTERS ® The AVITANA fi l ter is relatively easy to install. - Page 16 AVITANA GmbH, Berliner Straße 17, D-32052 Herford, Phone 0 52 21. 763 780-0, info@avitana.de, www.avitana.de...
