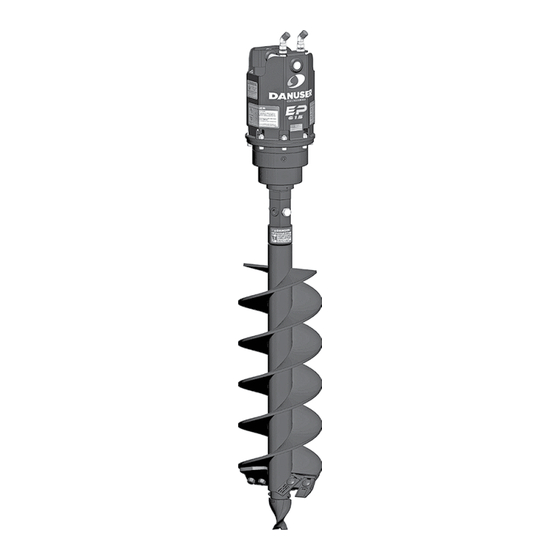

Danuser EP2035 Operator's Manual
  1. Manuals
  2. Brands
  3. Danuser Manuals
  4. Tools
  5. EP2035
  6. Operator's manual

Danuser EP2035 Operator's Manual

Auger systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Read this entire manual. This
safety alert symbol is used
throughout this manual to call your
attention to messages involving
your personal safety and the safety
of others. Failure to follow these
instructions can result in injury or
death.
WARNING
Si no entiende ingles, se prefiere que
busque a alguien que interprete las
instrucciones para usted.
EP
AUGER SYSTEMS
EP615
EP1020
EP1530
EP2035
Owner:
Date Purchased:
Model #:
Serial #:
9MEP2458953
Manual #:
Operator's Manual
Danuser LLC
500 E. 3rd St.
P.O. Box 368
Fulton, MO 65251
Tel: (573) 642-2246
E-mail: sales@danuser.com
Website: www.danuser.com
Fax: (573) 642-2240

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EP2035 and is the answer not in the manual?

Questions and answers

Related Manuals for Danuser EP2035

Summary of Contents for Danuser EP2035

  • Page 1 Failure to follow these instructions can result in injury or 9MEP2458953 Manual #: death. Operator’s Manual WARNING Danuser LLC 500 E. 3rd St. P.O. Box 368 Fulton, MO 65251 Si no entiende ingles, se prefiere que Tel: (573) 642-2246 Fax: (573) 642-2240 busque a alguien que interprete las E-mail: sales@danuser.com...
  • Page 2 Danuser assumes no liability for damages resulting from the use of the information contained herein. Danuser reserves the right to revise and improve its products as it sees fit. This manual describes the state of this product at the time of its publication and may not reflect the product in the future.

  • Page 3: Table Of Contents

    WARRANTY REGISTRATION FORM. This form is included in your unit’s paperwork package. If you did not complete a WARRANTY REGISTRATION FORM or did not receive one, please call Danuser LLC. Or, register online at www.Danuser.com. Your satisfaction with our product and your safety as a user of our product are both very important to us.

  • Page 4: Safety

    If there is anything in this manual you do not understand, contact your dealer or Danuser LLC. The safe use of this machine is strictly up to you, the operator. If this unit is used, loaned,...
  • Page 5 Safety • Do not allow riders on the equipment at any time. There is no safe place for any riders. • Never use alcoholic beverages or drugs which can hinder alertness or coordination while operating this equipment. Consult your doctor about operating this equipment while taking prescription (continued) or over-the-counter medications.
  • Page 6 Always use care when operating the earth auger. Most accidents occur because of neglect or carelessness. Safety is a primary concern in the design, manufacture, sale, and use of earth augers. Danuser confirms to you, our customer, our concern for safety.

  • Page 7: Decals & Safety Signs

    PART NO. DIG5 500 E. 3rd St. Location: Drive unit, P.O. Box 368 Fulton, MO 65251 left side (573) 642-2246 danuser.com PART NO. DIG56 Location: Drive unit, right side PART NO. DANUSER107 Location: Drive unit, front PART NO. 196048 Location: Drive unit, front PART NO.
  • Page 8 Decals & Safety Signs (continued) PART NO. DANUSER108 Locations: Frame, front; Frame, rear Backhoe & Excavator Pin-on Mount Kit - 1" - 40mm Pin Sizes PART NO. DANUSER106 Locations: Quick attach plate, left side; Quick attach plate, right side Backhoe & Excavator Pin-on Mount Kit - 1-5/8"...

  • Page 9: Drive Unit Specifications

    Drive Unit Specifications Operator's Manual Direction Terminology Front Right Left Rear EP Auger Systems Model EP615 Model EP1020 Model EP1530 Model EP2035 Overall Width (A) 10" Overall Height (B) 29" Weight 141 lbs. 142 lbs. 143 lbs. 143 lbs. Minimum Hydraulic Flow 6 GPM 10 GPM 15 GPM...

  • Page 10: Hydraulic Requirements

    Pressure and Flow Requirements: • Models EP615, EP1020, EP1530, and EP2035 Danuser Earth Augers are designed to operate within the pressure range of 1500 to 3500 PSI. For vehicles delivering higher than 3500 PSI, a cross port relief valve is available.

  • Page 11: Assembly & Installation

    Assembly & Prepare the Vehicle Read and understand the manual for your vehicle before assembling or installing the EP Installation Auger System. The vehicle must be equipped with auxiliary hydraulics and either a quick attach, dipperstick, or bucket for use with the bolt-on bucket mount. The use of the earth auger may require the addition of counterweights to ensure the weight of WARNING the attachment does not exceed the rated capacity of your vehicle.
  • Page 12 Assembly & STEP 2: Using a 1-1/8" wrench and torque wrench with 1-1/8" socket, bolt cradle assembly (7) to quick attach plate assembly (6) with 3/4" bolts (8) and washers (9), and Installation secure with 3/4" nuts (10) and washers (9). (continued) On the skid-steer quick attach, the cradle may be bolted to the quick attach plate NOTE...
  • Page 13 Assembly & STEP 7: If you purchased Danuser Hose Kits PN 196025 or PN 196027, install by using a 7/8" wrench and a 1" wrench to tighten the hose connections onto the 45° adapters Installation on the drive unit. All hoses and fittings used to connect the earth auger should be thoroughly cleaned...
  • Page 14 Assembly & STEP 12: Connect the quick couplers to the vehicle's auxiliary hydraulic outlets. Installation Ensure quick couplers are clean prior to connection. NOTE WARNING (continued) Before connecting or disconnecting hydraulic lines or fittings, be sure to relieve all pressure by cycling all hydraulic controls after shutdown.
  • Page 15 Assembly & STEP 3: Using a 1-1/8" wrench and torque wrench with 1-1/8" socket, bolt cradle assembly (7) to quick attach plate assembly (6) with 3/4" bolts (8) and washers (9), and Installation secure with 3/4" nuts (10) and washers (9). (continued) CAUTION Because of the weight of...
  • Page 16 1-7/16" wrench Installation STEP 1: If you purchased Danuser Hose Kits PN 196025, 196027, 206031, or 206032, install by using a 7/8" wrench and a 1" wrench to tighten the hose connections Backhoe & Excavator onto the 45° adapters on the drive unit.
  • Page 17 Assembly & STEP 3: Connect the quick couplers to the vehicle's auxiliary hydraulic outlets Installation Ensure quick couplers are clean prior to connection. NOTE WARNING (continued) Before connecting or disconnecting hydraulic lines or fittings, be sure to relieve all pressure by cycling all hydraulic controls after shutdown.
  • Page 18 Using a 1-7/16" wrench and a 1" wrench, tighten the hydraulic quick couplers onto the hoses. Danuser Hose Kit PN 196025 does not include hydraulic quick couplers. You NOTE must obtain the proper hydraulic quick couplers for your particular vehicle.
  • Page 19 Assembly & STEP 9: With the vehicle set at idle, engage the auxiliary hydraulics and verify output spindle rotation. The output spindle should rotate clockwise when viewed from above. Installation STEP 10: Check the hydraulic system for leaks. WARNING (continued) Never check pressurized system for leaks with your bare hand.

  • Page 20: Operation

    Operation DANGER Contact with underground gas lines or electrical cables may DANGER result in serious injury or death from explosion or electrical shock. Before operating, call 811 or the local number to locate underground utilities. Do not dig near underground This earth auger is utility lines.
  • Page 21 Operation STEP 6: The hydraulic flow rate and pressure should not exceed the earth auger's specified maximums. The hydraulic minimums must be met to deliver satisfactory performance. Use only enough down pressure to assure positive penetration of the auger into the ground. Reduce down pressure if auger rotation slows (continued) down drastically or stalls.

  • Page 22: Removal & Storage

    Removal & Before storage, the earth auger should be thoroughly cleaned, washing off all dirt and grime. Make sure the hydraulic system is properly sealed against contaminants entering the unit. Storage Always store the earth auger in a dry, covered location. STEP 1: Lower the earth auger onto a flat, level surface in an area where children do not DANGER...

  • Page 23: Troubleshooting

    Replace with hoses with working pressure rated pressure higher than vehicle hydraulic pressure. Hoses pinched, kinked, or stretched Refer to Assembly & Installation. For additional assistance, please call your dealer or contact Danuser direct: Tel: (573) 642-2246 Fax: (573) 642-2240 E-mail: sales@danuser.com...

  • Page 24: Maintenance & Lubrication

    Maintenance & Proper servicing and maintenance are key to the long life of any attachment. Careful inspection and routine maintenance helps avoid costly downtime and repair. Do not use the Lubrication earth auger with any damaged parts. WARNING DANGER Never check pressurized system for leaks with your bare hand.

  • Page 25: Torque Values Chart

    Torque Values Chart Torque Values Chart Bolt Head Identification Bolt Head Identification 10.9 Bolt Size Bolt Size (inches) Grade 2 Grade 8 (Metric) Class 5.8 Class 8.8 Class 10.9 Grade 5 in tpi ft.-lbs. ft.-lbs. ft.-lbs. mm x pitch ft.-lbs. ft.-lbs.

  • Page 26: Parts

    WARNING Parts This product can expose you to chemicals known to the State of Drive Unit California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
  • Page 27 Parts REF. NO. PART NO. DESCRIPTION QTY. MODELS 180405 Drive Unit EP615 (continued) 180406 Drive Unit EP1020 180407 Drive Unit EP1530 180408 Drive Unit EP2035 180409 Housing Assembly All Models 10184 Hydraulic Motor EP615 10185 Hydraulic Motor EP1020 10186 Hydraulic Motor EP1530 10964 Hydraulic Motor...
  • Page 28 WARNING Parts This product can expose you to chemicals known to the State of Skid-Steer Quick Attach - California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product. Center & Offset REF. NO. PART NO.
  • Page 29 WARNING Parts This product can expose you to chemicals known to the State of Euro/Global Quick Attach California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product. - Offset REF. NO. PART NO. DESCRIPTION QTY.
  • Page 30 WARNING Parts This product can expose you to chemicals known to the State of John Deere 200-500 Series California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product. Quick Attach - Offset REF. NO. PART NO.
  • Page 31 WARNING Parts This product can expose you to chemicals known to the State of Backhoe & Excavator California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product. Quick Attach Mounting Kit REF. NO. PART NO. DESCRIPTION QTY.

  • Page 32: Augers & Accessories

    4′ LENGTH DIA. NO. OF TEETH PART NO. 6″ 10657 8″ 10660 9″ 10663 10″ 10666 12″ 10669 15″ 10672 16″ 10675 18″ 10678 20″ 10681 24″ 10684 30″ 10687 36″ 10690 Please call Danuser for 3′, 5′, or 6′ requests.
  • Page 33 WARNING Augers & Accessories This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product. "TREE" AUGERS 4′ LENGTH DIA. NO. OF TEETH PART NO.
  • Page 34 WARNING Augers & Accessories This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product. "BULLET" ROCK AUGERS Rock, Concrete, Asphalt, and Frozen Ground 4′...
  • Page 35 WARNING Augers & Accessories This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product. AUGER ADAPTERS DRIVE UNIT AUGER COLLAR PART NO. 2″...
  • Page 36 Any parts or labor required to repair or replace parts not covered under this warranty will be charged to the customer. Parts repaired or replaced by Danuser are then covered by this warranty only for the remainder of the original warranty as if such parts were original parts.
